Creating Custom Major Lines when using LogarithmicAxis

7 Answers 147 Views
ChartView
This is a migrated thread and some comments may be shown as answers.
Royston
Top achievements
Rank 1
Royston asked on 19 Nov 2012, 02:03 PM
I am trying to create a ChartView that uses a LogarithmicAxis, but I want to control the spacing and interval of the major tick lines & labels.  Currently you can only have major lines that are a equal distance from each other, and the labels will adjust accordingly.   I want to be able to display major lines on the Y-Axis at a set value interval, so that the lines will be spaced closer together as you move up the Y-Axis.

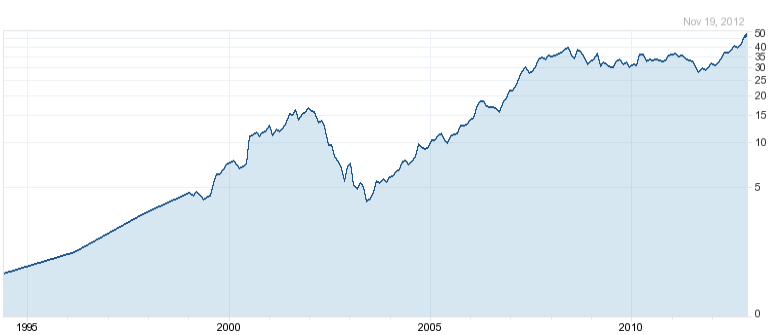

The attached image gives a good example of the affect that I am trying to achieve, with lines at value increments of 5.  Is this something that is easily achievable with this control?

7 Answers, 1 is accepted

Sort by
0
Missing User
answered on 21 Nov 2012, 03:53 PM
Hi Royston,

Unfortunately, the LogarithmicAxis does not natively support the behavior you described.
However, we've prepared a workaround for you. It involves adding annotations manually and requires a bit more development effort and it's up to you to decide whether it's an acceptable solution. See the attached sample project which should give you a clue on how to proceed further.
Please, follow this link if you need more information on annotations.

Kind regards,
Ivan
the Telerik team
