Convert RadChart

[Daniel]

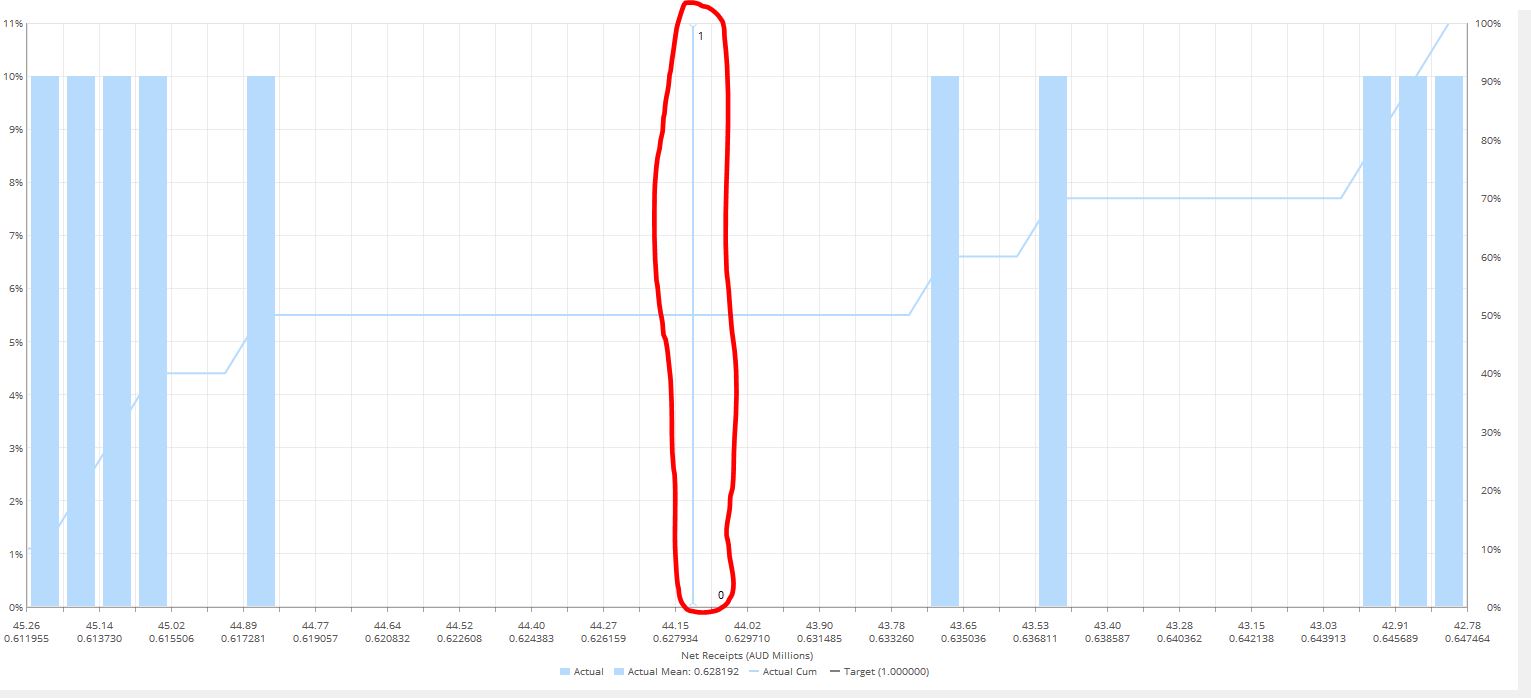

I am migrating an old Silverlight app that uses RadChart. The old chart is combination of column and line types. Please see image (filename: Chart.jpg).

It has this middle vertical line (which is the Actual Mean series/legend) that I am very confuse how to convert to KendoUI. Underneath, it has 2 data point value 0 and 1. The Axis is assign to the right axis. Another question is how it is placed in the middle of the chart with only 2 data points? There is no programmatic manipulation seen on the old code.

Is this possible to do with Kendo UI chart? I also attached the XAML of the old RadChart in case needed.

Please help.

[Neli]

Hello Daniel,

Could you please take a look if the categoryAxisnotes configuration suits your needs? Linked here you will find an example where a red line is added using the categoryAxis.notes.line

$("#chart").kendoChart({
        series: [{
          data: [1, 2, 3]
        }],
        categoryAxis: {
          notes: {
            line: {
              length: 350,
              color: "red"
            },
            icon: {
              border: {
                width: 0
              }
            },
            data: [{
              value: 1.35
            }]
          }
        }
      });

Also, the following forum thread where adding a vertical line is discussed might be helpful:

- https://www.telerik.com/forums/add-vertical-guideline

I hope you will find the provided information helpful.

Regards,
Neli
Progress Telerik
