CompositeFilterDescriptor not working as expected

[Jason Parrish]

I am developing a filter panel usercontrol that will allow my user to create complex filters.  My control follows the same structure as the documentation, but it does not work as expected.  It appears the last filterdescriptor added to the "main" composite filter is the only filter applied.

http://www.telerik.com/help/winforms/gridview-filtering-setting-filters-programmatically-composite-descriptors.html

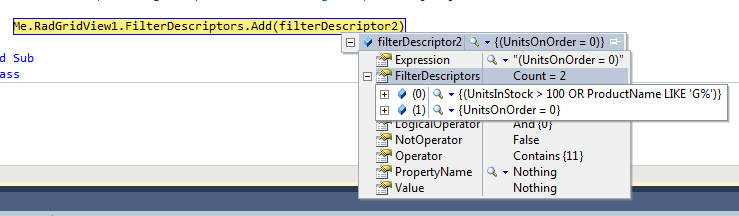

So, I took the exact code from the documentation, and it appears it is behaving incorrectly as well.  See below.  Also, notice my screenshot?  I would expect the Expression property to have the combination of the two filterdescriptors similar to the wording in documentation. Thoughts?

  Private Sub Button2_Click(sender As System.Object, e As System.EventArgs) Handles Button2.Click


        Dim oFooData As New BindingList(Of SampleData)

        Dim i As Integer = 1
        While i < 50
            oFooData.Add(New SampleData(10 * i, 3 * i, "Game"))
            i += 1
        End While

        i = 0
        While i < 50
            oFooData.Add(New SampleData(5 * i, 0, "Aatar"))
            i += 1
        End While

        RadGridView1.DataSource = oFooData

        Dim compositeFilter1 As New CompositeFilterDescriptor()
        compositeFilter1.FilterDescriptors.Add(New FilterDescriptor("UnitsInStock", FilterOperator.IsGreaterThan, 100))
        compositeFilter1.FilterDescriptors.Add(New FilterDescriptor("ProductName", FilterOperator.StartsWith, "G"))
        compositeFilter1.LogicalOperator = FilterLogicalOperator.[Or]
        Dim filter2 As New FilterDescriptor("UnitsOnOrder", FilterOperator.IsEqualTo, 0)
        Dim filterDescriptor2 As New CompositeFilterDescriptor()
        filterDescriptor2.FilterDescriptors.Add(compositeFilter1)
        filterDescriptor2.FilterDescriptors.Add(filter2)
        filterDescriptor2.LogicalOperator = FilterLogicalOperator.[And]

        Me.RadGridView1.FilterDescriptors.Add(filterDescriptor2)

    End Sub






Public Class SampleData
    Property UnitsInStock As Integer
    Property UnitsOnOrder As Integer
    Property ProductName As String

    Public Sub New(ByVal UnitsInStock As Integer, UnitsOnOrder As Integer, ProductName As String)
        _UnitsInStock = UnitsInStock
        _UnitsOnOrder = UnitsOnOrder
        _ProductName = ProductName
    End Sub

End Class

[Stefan]

Hello Jason,

Thank you for writing.

Indeed, I can confirm that the observed issue appears. I am logging it in PITS and we will address it accordingly. Feel free to add your vote for it here: http://www.telerik.com/support/pits.aspx#/public/winforms/10550

Your Telerik points have been updated for this report.

Meanwhile, what I can suggest is to use the CustomFiltering functionality of RadGridView. Here is how you can apply the same filter with it:

Me.RadGridView1.MasterTemplate.FilterPredicate = New Predicate(Of GridViewRowInfo)(AddressOf PerformFiltering)
'''''''
 Private Function PerformFiltering(ByVal row As GridViewRowInfo) As Boolean
        If row.Cells("UnitsOnOrder").Value = 0 Then
            If row.Cells("UnitsInStock").Value > 100 Or row.Cells("ProductName").Value.ToString.StartsWith("G") Then
                Return True
            End If
        Else
            Return False
        End If
    End Function

More information regarding this functionality can be found here: http://www.telerik.com/help/winforms/gridview-filtering-custom-filtering.html.

I hope that you find this information useful. Should you have any other questions, do not hesitate to contact us.

Kind regards,
Stefan
the Telerik team

[Jason Parrish]

Thank you.  The problems with the alternate solution, that is custom filtering, are 1) the user still needs to perform the standard grid filtering, and 2) the complex filtering needs to be dynamic of course.

Will this bug possibly be corrected in an internal build soon?

[Jason Parrish]

I found a better workaround.  From my collection of possible composite filters, I am building a filter expression.  And then, I apply the filter expression directly to grid's dataview.

_GridView.MasterTemplate.DataView.FilterExpression = sbMainFilterExpression.ToString

[Stefan]

Hello Jason,

I am glad to hear that you have found a suitable workaround for your case.

I cannot engage with an exact time frame when this issue will be resolved, however, we will do our best to fit it in our plans for Q2 2012, which is expected in June.

I hope that this works for you.

Kind regards,
Stefan
the Telerik team
