ColumnHeaderContainer

[Yevgeny]

Hi,

I'm trying to change column headers style in my GanttView.
I'm using this code:

<Style TargetType="GanttView:ColumnHeaderContainer">
            <Setter Property="Foreground" Value="#3d3d3d" />
            <Setter Property="Background" Value="#C0C0C0" />
        </Style>

But that style impacts only 1st and 3d columns, while 2nd column style is not impacted (see attachment).

What am I missing?

Thanks,
Yevgeny


[Kalin]

Hello Yevgeny,

The GanttView provides alternating background colors for the columns as well as the rows. That is why the background is affecting only the odd columns. In order to change the background of the even columns you will also need to set the AlternatingBackground property of the ColumnHeaderContainer to the same color. In your scenario the Style should look as follows:

<Style TargetType="telerik:ColumnHeaderContainer">
    <Setter Property="Foreground" Value="#3d3d3d" />
    <Setter Property="Background" Value="#C0C0C0" />
    <Setter Property="AlternatingBackground" Value="#C0C0C0" />
</Style>

Hope this helps. If you have any other questions, let us know.

Regards,
Kalin
Telerik

[Yevgeny]

Thank you very much, it's working.

I have another question:

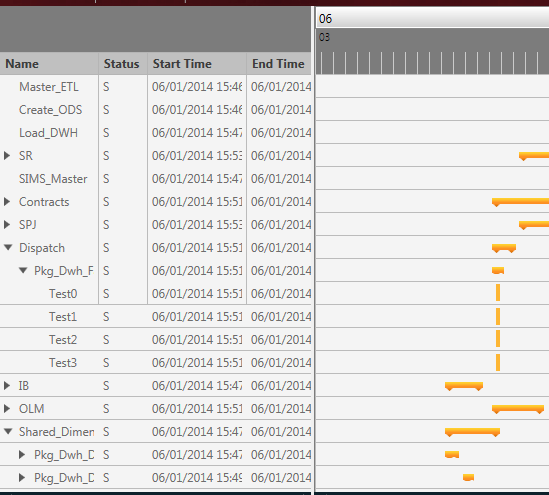

I'm trying set background and border on rows on the TimeRuller part and on cells on the Grid part, but getting some weird result (see attachment). Here is my code:

<SolidColorBrush x:Key="GantBackgroundBrush" Color="#7c7c7c"/>
    <SolidColorBrush x:Key="GantGridTitleBackgroundBrush" Color="#C0C0C0"/>
    <SolidColorBrush x:Key="GantSelectedItemBrush" Color="#C0C0C0"/>
    <SolidColorBrush x:Key="GantGridTitleForegroundBrush" Color="#3d3d3d"/>
    <SolidColorBrush x:Key="GantRowBorderBrush" Color="#bbbbbb"/>
    <SolidColorBrush x:Key="GantFontBrush" Color="#6d6c6c"/>
    <SolidColorBrush x:Key="GantRowBackroundBrush" Color="#f4f4f4"/>

<Style TargetType="GanttView:ColumnHeaderContainer">
            <Setter Property="Foreground" Value="{DynamicResource GantGridTitleForegroundBrush}" />
            <Setter Property="Background" Value="{DynamicResource GantGridTitleBackgroundBrush}" />
            <Setter Property="AlternatingBackground" Value="{DynamicResource GantGridTitleBackgroundBrush}" />
        </Style>
        <Style TargetType="telerik:BorderContainer">
            <Setter Property="Foreground" Value="{DynamicResource GantFontBrush}" />
            <Setter Property="Background" Value="{DynamicResource GantRowBackroundBrush}" />
            <Setter Property="BorderThickness" Value="{DynamicResource LangDict_GanttRowBorderSize}" />
            <Setter Property="BorderBrush" Value="{DynamicResource GantRowBorderBrush}" />
        </Style>
        <Style TargetType="telerik:AlternatingBorderContainer">
            <Setter Property="Foreground" Value="{DynamicResource GantFontBrush}" />
            <Setter Property="Background" Value="{DynamicResource GantRowBackroundBrush}" />
            <Setter Property="BorderThickness" Value="{DynamicResource LangDict_GanttRowBorderSize}" />
            <Setter Property="BorderBrush" Value="{DynamicResource GantRowBorderBrush}" />
        </Style>
        <Style TargetType="GanttView:SimpleTreeCellContainer">
            <Setter Property="Foreground" Value="{DynamicResource GantFontBrush}" />
            <Setter Property="BorderThickness" Value="{DynamicResource LangDict_GanttRowBorderSize}" />
            <Setter Property="BorderBrush" Value="{DynamicResource GantRowBorderBrush}" />
        </Style>
        <Style TargetType="GanttView:SimpleCellContainer">
            <Setter Property="Foreground" Value="{DynamicResource GantFontBrush}" />
            <Setter Property="BorderThickness" Value="{DynamicResource LangDict_GanttRowBorderSize}" />
            <Setter Property="BorderBrush" Value="{DynamicResource GantRowBorderBrush}" />
        </Style>
    </UserControl.Resources>
    <Grid>
        <Controls:RadGanttView TasksSource="{Binding QueueContext.Items}"
                               SelectedItem="{Binding Path=SelectedItem, Mode=TwoWay, UpdateSourceTrigger=PropertyChanged}"
                               FirstDayOfWeek="Sunday"
                               PixelLength="00:00:05"
                               ShowCurrentHourIndicator="True"
                               HorizontalContentAlignment="Stretch"
                               VerticalContentAlignment="Stretch"
                               IsManipulationEnabled="True"
                               VisibleRange="{Binding Path=VisibleRange, Mode=OneWay}"
                               InitialExpandBehavior="{StaticResource gntInitialExpandBehavior}"
                               Background="{StaticResource GantBackgroundBrush}"
                               x:Name="gntRun">
            <Controls:RadGanttView.Columns>
                <GanttView:TreeColumnDefinition Header="Name" MemberBinding="{Binding Title}" Width="100" />
                <GanttView:ColumnDefinition Header="Status" MemberBinding="{Binding RunCode}" Width="50"  />
                <GanttView:ColumnDefinition Header="Start Time" MemberBinding="{Binding StartTimeString}" Width="100" />
                <GanttView:ColumnDefinition Header="End Time" MemberBinding="{Binding EndTimeString}" Width="100" />
                <GanttView:ColumnDefinition Header="Duration" MemberBinding="{Binding Duration}" Width="50" />
            </Controls:RadGanttView.Columns>

            <Controls:RadGanttView.TimeRulerLines>
                <telerik:GroupTickLine>
                    <telerik:TickInterval Interval="OneDay" />
                </telerik:GroupTickLine>
                <telerik:MajorTickLine>
                    <telerik:TickInterval Interval="OneHour" />
                </telerik:MajorTickLine>
                <telerik:MinorTickLine>
                    <telerik:TickInterval Interval="OneMinute" />
                </telerik:MinorTickLine>
            </Controls:RadGanttView.TimeRulerLines>
        </Controls:RadGanttView>
    </Grid>

Please help.

Regards,
Yevgeny

[Kalin]

Hello Yevgeny,

The desired appearance can be achieved by modifying the Style of the BorderContainers. You will need also set an opacity to 0.5 for example because the containers are overlapping when rendering and that is why you had some borders missing. I have attached a sample project which demonstrates the exact approach.

Hope this helps.

Regards,
Kalin
Telerik

[Yevgeny]

Hi,

Thank you for your answer, but unfortunately suggested solution is not applicable for me because I have different GantView background and BorderContainer background, so when Opacity of BorderContainer is set to 50% for example, the BorderContainer Background is changed.

It looks like a bug, right?
Can you please suggest some workaround?

Thenk you,
Yevgeny

[Kalin]

Hello Yevgeny,

I suggested you the approach with the opacity as it was the easiest one to be achieved. The difficulty with the cells styling is caused by way the GanttView gets drawn - firstly the rows are drawn then the columns and this is causing some Backgrounds overlapping between them which hides some of the borders you have set. However in order to achieve the desired you will need to extract the GanttItemsPresenterTemplate and set the Background of the VirtualizedGridPanel named VirtualizedGridPanel. After that you would only need to set the BorderBrushes of the BorderContainer and AlternatingBorderContainer. I have modified and attached the sample project in order to demonstrate the exact approach (note that I have used Implict Styles for styling the control).

Hope this will work for you.

Regards,
Kalin
Telerik

[Yevgeny]

Hi,

Thank you for your answer.

I still have the same problem. I need same background on both sides of the control (Grid and TimeRuler), when BorderContainer background and AlternatingBorderContainer background are set, the problem is back.

It can be reproducible in your example from the last post:

<Window.Resources>
        <SolidColorBrush x:Key="GantBackgroundBrush" Color="#7c7c7c"/>
        <SolidColorBrush x:Key="GantGridTitleBackgroundBrush" Color="#C0C0C0"/>
        <SolidColorBrush x:Key="GantSelectedItemBrush" Color="#C0C0C0"/>
        <SolidColorBrush x:Key="GantGridTitleForegroundBrush" Color="#3d3d3d"/>
        <SolidColorBrush x:Key="GantRowBorderBrush" Color="#bbbbbb"/>
        <SolidColorBrush x:Key="GantFontBrush" Color="#6d6c6c"/>
        <SolidColorBrush x:Key="GantRowBackroundBrush" Color="#f4f4f4"/>

        <Style TargetType="telerik:ColumnHeaderContainer" BasedOn="{StaticResource ColumnHeaderContainerStyle}">
            <Setter Property="Foreground" Value="{DynamicResource GantGridTitleForegroundBrush}" />
            <Setter Property="Background" Value="{DynamicResource GantGridTitleBackgroundBrush}" />
            <Setter Property="AlternatingBackground" Value="{DynamicResource GantGridTitleBackgroundBrush}" />
        </Style>

        <ControlTemplate x:Key="GanttItemsPresenterTemplate" TargetType="telerik:GanttItemsPresenter">
            <telerik:GanttPresenterPanel>
                <telerik:GanttPresenterPanel.ColumnDefinitions>
                    <ColumnDefinition Width="Auto"/>
                    <ColumnDefinition Width="*" MinWidth="3"/>
                    <ColumnDefinition Width="3*"/>
                    <ColumnDefinition Width="Auto"/>
                </telerik:GanttPresenterPanel.ColumnDefinitions>


                <telerik:VirtualizedGridPanel x:Name="FrozenCellsPanel"
                    HorizontalAlignment="Stretch"
                    VerticalAlignment="Top"
                    Margin="4 -1 0 0"
                    telerik:GanttPresenterPanel.Column="0"
                    telerik:GanttPresenterPanel.Area="Content"/>

                <telerik:TreeRenderingPanel x:Name="ColumnsPanel"
                    Orientation="Horizontal"
                    telerik:GanttPresenterPanel.Column="1"
                    telerik:GanttPresenterPanel.Area="Header"
                    HorizontalAlignment="Left"
                    VerticalAlignment="Stretch"
                    Margin="-1 0 4 0"/>

                <!-- You need to change the background of this panel below-->
                <telerik:VirtualizedGridPanel x:Name="CellsPanel"
                    telerik:GanttPresenterPanel.Column="1"
                    telerik:GanttPresenterPanel.Area="Content"
                    Margin="-1 -1 4 0"
                    Background="{StaticResource GantRowBackroundBrush}"
                    HorizontalAlignment="Left"
                    VerticalAlignment="Top"
                    VerticalOffset="{Binding VerticalOffset, ElementName=FrozenCellsPanel, Mode=TwoWay}"
                    HorizontalOffset="{Binding HorizontalOffset, ElementName=ColumnsPanel, Mode=TwoWay}"/>

                <telerik:TreeRenderingPanel
                    Orientation="Horizontal"
                    x:Name="FrozenColumnsPanel"
                    telerik:GanttPresenterPanel.Column="0"
                    telerik:GanttPresenterPanel.Area="Header"
                    Margin="4 0 0 0"
                    HorizontalAlignment="Stretch"
                    VerticalAlignment="Stretch"/>
                <ScrollBar
                    telerik:GanttPresenterPanel.Column="1"
                    telerik:GanttPresenterPanel.Area="ScrollBar"
                    Orientation="Horizontal"
                    Minimum="0"
                    Maximum="{Binding ExtentWidth, ElementName=ColumnsPanel}"
                    Value="{Binding HorizontalOffset, ElementName=ColumnsPanel, Mode=TwoWay}"
                    ViewportSize="{Binding ViewportWidth, ElementName=ColumnsPanel}"
                    SmallChange="40"
                    LargeChange="{Binding ViewportWidth, ElementName=ColumnsPanel}"
                    Visibility="{Binding CalculatedHorizontalScrollBarVisibility, ElementName=ColumnsPanel}"/>
                <telerik:ResizeControl telerik:GanttPresenterPanel.Column="1" telerik:GanttPresenterPanel.Area="Splitter" Style="{StaticResource GanttPresenterSplitterStyle}"/>
                <telerik:LogicalCanvasPanel x:Name="EventsPanel"
                    telerik:GanttPresenterPanel.Column="2"
                    telerik:GanttPresenterPanel.Area="Content"
                    VerticalOffset="{Binding VerticalOffset, ElementName=CellsPanel, Mode=TwoWay}"
                    Background="Transparent"
                    Margin="0 -1 0 0"
                    VerticalAlignment="Top"
                    HorizontalAlignment="Left"/>
                <telerik:LogicalCanvasPanel x:Name="TimeRulerPanel"
                    telerik:GanttPresenterPanel.Column="2"
                    telerik:GanttPresenterPanel.Area="Header"
                    VerticalAlignment="Bottom"
                    HorizontalAlignment="Left"
                    Background="Transparent"
                    HorizontalOffset="{Binding HorizontalOffset, ElementName=EventsPanel, Mode=TwoWay}"/>
                <ScrollBar
                    telerik:GanttPresenterPanel.Column="2"
                    telerik:GanttPresenterPanel.Area="ScrollBar"
                    Orientation="Horizontal"
                    Minimum="0"
                    Maximum="{Binding ExtentWidth, ElementName=EventsPanel}"
                    Value="{Binding HorizontalOffset, ElementName=EventsPanel, Mode=TwoWay}"
                    ViewportSize="{Binding ViewportWidth, ElementName=EventsPanel}"
                    SmallChange="20"
                    LargeChange="{Binding ViewportWidth, ElementName=EventsPanel}"
                    Visibility="{Binding CalculatedHorizontalScrollBarVisibility, ElementName=EventsPanel}"/>
                <ScrollBar
                    telerik:GanttPresenterPanel.Column="3"
                    telerik:GanttPresenterPanel.Area="Content"
                    Orientation="Vertical"
                    Minimum="0"
                    Maximum="{Binding ExtentHeight, ElementName=CellsPanel}"
                    Value="{Binding VerticalOffset, ElementName=CellsPanel, Mode=TwoWay}"
                    ViewportSize="{Binding ViewportHeight, ElementName=CellsPanel}"
                    Visibility="{Binding CalculatedVerticalScrollBarVisibility, ElementName=CellsPanel}"
                    SmallChange="10"
                    LargeChange="{Binding ViewportHeight, ElementName=CellsPanel}"/>
            </telerik:GanttPresenterPanel>
        </ControlTemplate>
        <Style TargetType="telerik:GanttItemsPresenter" BasedOn="{StaticResource GanttItemsPresenterStyle}">
            <Setter Property="Template" Value="{StaticResource GanttItemsPresenterTemplate}" />
        </Style>


        <Style TargetType="telerik:BorderContainer" BasedOn="{StaticResource BorderContainerStyle}">
            <Setter Property="BorderBrush" Value="{StaticResource GantRowBorderBrush}"/>
            <Setter Property="Background" Value="{StaticResource GantRowBackroundBrush}"/>
        </Style>
        <Style TargetType="telerik:AlternatingBorderContainer" BasedOn="{StaticResource AlternatingBorderContainerStyle}">
            <Setter Property="Background" Value="{StaticResource GantRowBackroundBrush}" />
            <Setter Property="BorderBrush" Value="{StaticResource GantRowBorderBrush}" />
        </Style>

    </Window.Resources>
    <Grid>
        <telerik:RadGanttView x:Name="ganttView" Background="{StaticResource GantBackgroundBrush}">
            <telerik:RadGanttView.Columns>
                <telerik:TreeColumnDefinition Header="Name 1" />
                <telerik:TreeColumnDefinition Header="Name 2" />
                <telerik:TreeColumnDefinition Header="Name 3" />
                <telerik:TreeColumnDefinition Header="Name 4" />
                <telerik:TreeColumnDefinition Header="Name 5" />
            </telerik:RadGanttView.Columns>
        </telerik:RadGanttView>
    </Grid>

Still looks like a bug or I'm missing something... Please advise.

Regards,
Yevgeny

[Kalin]

Hi Yevgeny,

Yes, setting the Background properties of the BorderContainers and AlternatingBorderContainers causes the overlapping as I mentioned in my previous reply. The Background you need is in the GanttItemsPresenterTemplate again - you set it to set it to the panel named EventsPanel like shown below:

<telerik:LogicalCanvasPanel x:Name="EventsPanel"
                    telerik:GanttPresenterPanel.Column="2"
                    telerik:GanttPresenterPanel.Area="Content"
                    VerticalOffset="{Binding VerticalOffset, ElementName=CellsPanel, Mode=TwoWay}"
                    Background="{StaticResource GantRowBackroundBrush}"
                    Margin="0 -1 0 0"
                    VerticalAlignment="Top"
                    HorizontalAlignment="Left"/>

This will change the Background of the TimeRuller without affecting the cell.

Hope this helps. If you have any other questions let us know.

Regards,
Kalin
Telerik

[Mark]

 Hi,

I am using GanttItemsPresenterTemplate to change my ganttview resizecontrol style. It work fine.

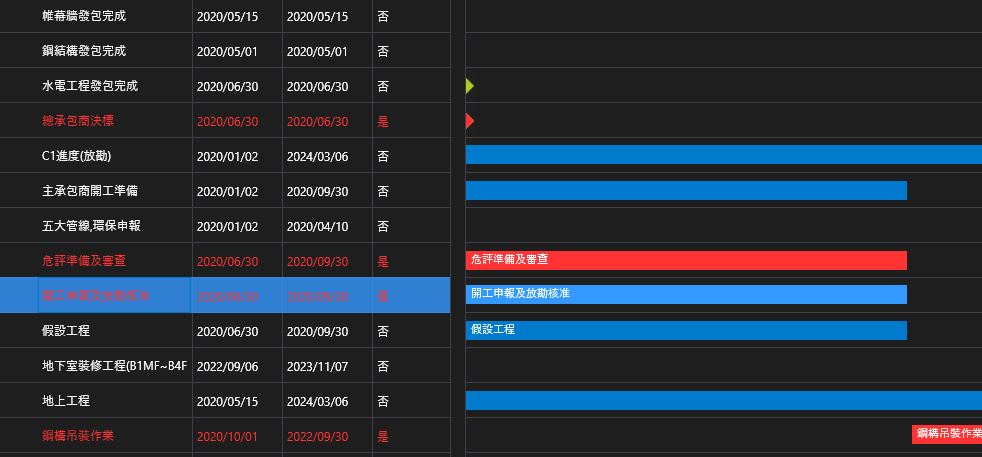

But after I used highlightitemsource to highlight some tasks.Some Task's color didn't change after I click the row(see attachment).

What am I missing?

Thanks,

Mark

001.<telerik:RadGanttView x:Name="radGanttView"
002.              TimeLineVisualizationBehavior="{Binding TimeLineCurrentlineBehavior}"
003.              TasksSource="{Binding Tasks}"
004.              MouseDoubleClick="RadGanttView_MouseDoubleClick"
005.              SelectedItem="{Binding SelectedTask, Mode=TwoWay}"
006.              HighlightedItemsSource="{Binding HighlightedItems, Mode=TwoWay}">
007.           <telerik:RadGanttView.DragDropBehavior>
008.               <localGanttViewBehavior:CustomDragDropBehavior/>
009.           </telerik:RadGanttView.DragDropBehavior>
010.           <telerik:RadGanttView.DragDependenciesBehavior>
011.               <localGanttViewBehavior:CustomDragDependenciesBehavior/>
012.           </telerik:RadGanttView.DragDependenciesBehavior>
013.           <telerik:RadGanttView.Resources>
014.               <ResourceDictionary>
015.                   <ResourceDictionary.MergedDictionaries>
016.                       <ResourceDictionary   Source="/Telerik.Windows.Themes.VisualStudio2013;component/Themes/Telerik.Windows.Controls.GanttView.xaml"/>
017.                       <ResourceDictionary Source="/Telerik.Windows.Themes.VisualStudio2013;component/Themes/System.Windows.xaml"/>
018.                       <ResourceDictionary Source="/Telerik.Windows.Themes.VisualStudio2013;component/Themes/Telerik.Windows.Controls.xaml"/>
019.                   </ResourceDictionary.MergedDictionaries>
020.                   <localGanttViewBehavior:CellInfoToBrushConverter x:Key="cellInfoToBrushConverter"/>
021.                   <localGanttViewBehavior:CellInfoToFontWeightConverter x:Key="cellInfoToFontWeightConverter"/>
022.                   <DataTemplate x:Key="CriticalPathTemplate">
023.                       <TextBlock Text="{Binding FormattedValue}" FontWeight="{Binding CellInfo.DataItem, Converter={StaticResource cellInfoToFontWeightConverter}}" Foreground="{Binding CellInfo.DataItem, Converter={StaticResource cellInfoToBrushConverter}}" VerticalAlignment="Center"/>
024.                   </DataTemplate>
025.                   <ControlTemplate x:Key="EventDecoratorContainerTemplate" TargetType="telerik:EventDecoratorContainer"/>
026.                   <ControlTemplate x:Key="MyDependencyIndicatorTemplate" TargetType="telerik:DependencyIndicator"/>
027.                   <Style TargetType="telerik:EventContainer" BasedOn="{StaticResource EventContainerStyle}">
028.                       <Setter Property="localGanttViewBehavior:GanttTaskClickExtension.ClickCount"
029.                           Value="1" />
030.                       <Setter Property="localGanttViewBehavior:GanttTaskClickExtension.CommandParameter"
031.                           Value="{Binding OriginalEvent}" />
032.                       <Setter Property="localGanttViewBehavior:GanttTaskClickExtension.Command"
033.                           Value="{Binding Path=DataContext.SingleClickCommand, RelativeSource={RelativeSource Mode=FindAncestor, AncestorType=telerik:RadGanttView}}" />
034.                   </Style>
035.                   <Style TargetType="telerik:EventDecoratorContainer" BasedOn="{StaticResource EventDecoratorContainerStyle}">
036.                       <Setter Property="Template" Value="{StaticResource EventDecoratorContainerTemplate}"/>
037.                   </Style>
038.                   <Style x:Key="DependencyIndicatorStyle" TargetType="telerik:DependencyIndicator">
039.                       <Setter Property="Template" Value="{StaticResource MyDependencyIndicatorTemplate}"/>
040.                       <Setter Property="telerik:DragDropManager.TouchDragTrigger" Value="TapAndHold"/>
041.                   </Style>
042.                   <SolidColorBrush x:Key="ResizerFill" Color="#B2277FFF" />
043.                   <SolidColorBrush x:Key="ResizerStroke" Color="#FF848484" />
044.                   <Style TargetType="telerik:ResizeControl" x:Key="GanttPresenterSplitterStyle">
045.                       <Setter Property="Background" Value="#1E1E1E" />
046.                       <Setter Property="BorderThickness" Value="1 0 1 0" />
047.                       <Setter Property="IsTabStop" Value="True" />
048.                       <Setter Property="HorizontalAlignment" Value="Right" />
049.                       <Setter Property="VerticalAlignment" Value="Stretch" />
050.                       <Setter Property="telerik:ZIndexManager.ZIndex" Value="100" />
051.                       <Setter Property="ShowsPreview" Value="True" />
052.                       <Setter Property="BorderBrush" Value="#3F3F46" />
053.                       <Setter Property="Width" Value="16" />
054.                       <Setter Property="Template">
055.                           <Setter.Value>
056.                               <ControlTemplate TargetType="telerik:ResizeControl">
057.                                   <Grid x:Name="Root" IsHitTestVisible="{TemplateBinding IsEnabled}">
058.                                       <VisualStateManager.VisualStateGroups>
059.                                           <VisualStateGroup x:Name="CommonStates">
060.                                               <VisualState x:Name="Normal" />
061.                                               <VisualState x:Name="MouseOver" />
062.                                               <VisualState x:Name="Disabled" />
063.                                           </VisualStateGroup>
064.                                           <VisualStateGroup x:Name="FocusStates">
065.                                               <VisualState x:Name="Unfocused"/>
066.                                               <VisualState x:Name="Focused"/>
067.                                           </VisualStateGroup>
068.                                       </VisualStateManager.VisualStateGroups>
069.                                       <Border Width="{TemplateBinding Width}" VerticalAlignment="{TemplateBinding VerticalAlignment}" HorizontalAlignment="{TemplateBinding HorizontalAlignment}" Background="{TemplateBinding Background}" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" />
070.                                       <Rectangle x:Name="FocusedVisual" Stroke="{StaticResource ResizerStroke}" StrokeThickness="1" StrokeDashArray="2 2" Margin="0 0 -1 0" Opacity="0" />
071.                                       <Rectangle x:Name="PART_PreviewControl" VerticalAlignment="Stretch" HorizontalAlignment="Stretch" Fill="{StaticResource ResizerFill}" Opacity="0.5" Visibility="Collapsed" />
072.                                   </Grid>
073.                               </ControlTemplate>
074.                           </Setter.Value>
075.                       </Setter>
076.                   </Style>
077.                   <Style TargetType="telerik:GanttItemsPresenter">
078.                       <Setter Property="Background" Value="Transparent" />
079.                       <Setter Property="Template">
080.                           <Setter.Value>
081.                               <ControlTemplate TargetType="telerik:GanttItemsPresenter">
082.                                   <telerik:GanttPresenterPanel>
083.                                       <telerik:GanttPresenterPanel.ColumnDefinitions>
084.                                           <ColumnDefinition Width="Auto" />
085.                                           <ColumnDefinition Width="50*" MinWidth="3" />
086.                                           <ColumnDefinition Width="50*" />
087.                                           <ColumnDefinition Width="Auto" />
088.                                       </telerik:GanttPresenterPanel.ColumnDefinitions>
089.                                       <telerik:VirtualizedGridPanel x:Name="FrozenCellsPanel" HorizontalAlignment="Stretch" VerticalAlignment="Top" Margin="4 -1 0 0" telerik:GanttPresenterPanel.Column="0" telerik:GanttPresenterPanel.Area="Content" />
090.                                       <telerik:VirtualizedGridPanel x:Name="CellsPanel" telerik:GanttPresenterPanel.Column="1" telerik:GanttPresenterPanel.Area="Content" Margin="-1 -1 4 0" HorizontalAlignment="Left" VerticalAlignment="Top" VerticalOffset="{Binding VerticalOffset, ElementName=FrozenCellsPanel, Mode=TwoWay}" HorizontalOffset="{Binding HorizontalOffset, ElementName=ColumnsPanel, Mode=TwoWay}" />
091.                                       <telerik:TreeRenderingPanel x:Name="ColumnsPanel" Orientation="Horizontal" telerik:GanttPresenterPanel.Column="1" telerik:GanttPresenterPanel.Area="Header" HorizontalAlignment="Left" VerticalAlignment="Stretch" Margin="-1 0 4 0" />
092.                                       <telerik:TreeRenderingPanel Orientation="Horizontal" x:Name="FrozenColumnsPanel" telerik:GanttPresenterPanel.Column="0" telerik:GanttPresenterPanel.Area="Header" Margin="4 0 0 0" HorizontalAlignment="Stretch" VerticalAlignment="Stretch" />
093.                                       <ScrollBar telerik:GanttPresenterPanel.Column="1" telerik:GanttPresenterPanel.Area="ScrollBar" Orientation="Horizontal" Minimum="0" Maximum="{Binding ExtentWidth, ElementName=ColumnsPanel}" Value="{Binding HorizontalOffset, ElementName=ColumnsPanel, Mode=TwoWay}" ViewportSize="{Binding ViewportWidth, ElementName=ColumnsPanel}" SmallChange="40" LargeChange="{Binding ViewportWidth, ElementName=ColumnsPanel}" Visibility="{Binding CalculatedHorizontalScrollBarVisibility, ElementName=ColumnsPanel}" />
094.                                       <telerik:ResizeControl telerik:GanttPresenterPanel.Column="1" telerik:GanttPresenterPanel.Area="Splitter" Style="{StaticResource GanttPresenterSplitterStyle}" />
095.                                       <telerik:LogicalCanvasPanel x:Name="EventsPanel" telerik:GanttPresenterPanel.Column="2" telerik:GanttPresenterPanel.Area="Content" VerticalOffset="{Binding VerticalOffset, ElementName=CellsPanel, Mode=TwoWay}" Background="Transparent" Margin="0 -1 0 0" VerticalAlignment="Top" HorizontalAlignment="Left" />
096.                                       <telerik:LogicalCanvasPanel x:Name="TimeRulerPanel" telerik:GanttPresenterPanel.Column="2" telerik:GanttPresenterPanel.Area="Header" VerticalAlignment="Bottom" HorizontalAlignment="Left" Background="Transparent" HorizontalOffset="{Binding HorizontalOffset, ElementName=EventsPanel, Mode=TwoWay}" />
097.                                       <ScrollBar telerik:GanttPresenterPanel.Column="2" telerik:GanttPresenterPanel.Area="ScrollBar" Orientation="Horizontal" Minimum="0" Maximum="{Binding ExtentWidth, ElementName=EventsPanel}" Value="{Binding HorizontalOffset, ElementName=EventsPanel, Mode=TwoWay}" ViewportSize="{Binding ViewportWidth, ElementName=EventsPanel}" SmallChange="20" LargeChange="{Binding ViewportWidth, ElementName=EventsPanel}" Visibility="{Binding CalculatedHorizontalScrollBarVisibility, ElementName=EventsPanel}" />
098.                                       <ScrollBar telerik:GanttPresenterPanel.Column="3" telerik:GanttPresenterPanel.Area="Content" Orientation="Vertical" Minimum="0" Maximum="{Binding ExtentHeight, ElementName=CellsPanel}" Value="{Binding VerticalOffset, ElementName=CellsPanel, Mode=TwoWay}" ViewportSize="{Binding ViewportHeight, ElementName=CellsPanel}" Visibility="{Binding CalculatedVerticalScrollBarVisibility, ElementName=CellsPanel}" SmallChange="10" LargeChange="{Binding ViewportHeight, ElementName=CellsPanel}" />
099.                                   </telerik:GanttPresenterPanel>
100.                               </ControlTemplate>
101.                           </Setter.Value>
102.                       </Setter>
103.                   </Style>
104.
105.                   <Style TargetType="telerik:SimpleCellContainer" BasedOn="{StaticResource SimpleCellContainerStyle}">
106.                       <Setter Property="MinHeight" Value="35" />
107.                   </Style>
108.
109.                   <Style TargetType="telerik:CellContainer" BasedOn="{StaticResource CellContainerStyle}">
110.                       <Setter Property="MinHeight" Value="35" />
111.                   </Style>
112.
113.                   <Style TargetType="telerik:CellEditingContainer" BasedOn="{StaticResource CellEditingContainerStyle}">
114.                       <Setter Property="MinHeight" Value="35" />
115.                   </Style>
116.
117.                   <Style TargetType="telerik:TreeCellContainer" BasedOn="{StaticResource TreeCellContainerStyle}">
118.                       <Setter Property="MinHeight" Value="35" />
119.                   </Style>
120.
121.                   <!--<Style TargetType="telerik:SimpleTreeCellContainer" BasedOn="{StaticResource SimpleTreeCellContainerStyle}">
122.                       <Setter Property="Padding" Value="0 0 5 0"/>
123.                       <Setter Property="MinHeight" Value="35" />
124.                       <Setter Property="Template">
125.                           <Setter.Value>
126.                               <ControlTemplate TargetType="Control">
127.                                   <Border Background="{TemplateBinding Background}" BorderThickness="0" Margin="{TemplateBinding Padding}">
128.                                       <Grid x:Name="TemplateRootVisual"
129.                                             HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
130.                                             Background="{TemplateBinding Background}"
131.                                             VerticalAlignment="{TemplateBinding VerticalAlignment}">
132.                                           <Grid.ColumnDefinitions>
133.                                               <ColumnDefinition Width="20"/>
134.                                               <ColumnDefinition Width="*"/>
135.                                           </Grid.ColumnDefinitions>
136.                                           <Border x:Name="PART_ExpandCollapseHitArea" MinHeight="15" Background="Transparent" Grid.Column="0" HorizontalAlignment="Stretch">
137.                                               <Path x:Name="PART_ExpandCollapseVisual"
138.                                       StrokeThickness="1"
139.                                       RenderTransformOrigin="0.5,0.5"
140.                                       Stretch="Fill"
141.                                       Data="M0.5,0.5 L5.2,5.4 L5.2,5.4 L0.5,10.5 z"
142.                                       Width="6"
143.                                       Height="9"
144.                                       VerticalAlignment="Stretch"
145.                                       HorizontalAlignment="Stretch"
146.                                       IsHitTestVisible="False"
147.                                       Margin="-4 0 0 0"/>
148.                                           </Border>
149.                                           <TextBlock Grid.Column="1" x:Name="ValueTextBlock" HorizontalAlignment="Stretch" VerticalAlignment="{TemplateBinding VerticalContentAlignment}" Foreground="{Binding Path=DataItem, Converter={StaticResource cellInfoToBrushConverter}, RelativeSource={RelativeSource AncestorType=telerik:SimpleTreeCellContainer}}"/>
150.                                       </Grid>
151.                                   </Border>
152.                               </ControlTemplate>
153.                           </Setter.Value>
154.                       </Setter>
155.                   </Style>-->
156.
157.                   <Style TargetType="telerik:RelationContainer" BasedOn="{StaticResource RelationContainerStyle}">
158.                       <Setter Property="Margin" Value="0 17 0 17"/>
159.                   </Style>
160.
161.                   <Style TargetType="telerik:DragRelationSlotContainer" BasedOn="{StaticResource DragRelationSlotClontainerStyle}">
162.                       <Setter Property="Margin" Value="0 17 0 17"/>
163.                   </Style>
164.
165.               </ResourceDictionary>
166.           </telerik:RadGanttView.Resources>
167.           <telerik:RadGanttView.TimelineContainerSelector>
168.               <local:TimeLineCurrentlineContainerSelector/>
169.           </telerik:RadGanttView.TimelineContainerSelector>
170.           <telerik:RadGanttView.TimeRulerLines>
171.               <telerik:GroupTickLine>
172.                   <telerik:TickInterval Interval="OneYear" />
173.               </telerik:GroupTickLine>
174.               <telerik:MajorTickLine>
175.                   <telerik:TickInterval Interval="OneMonth" />
176.               </telerik:MajorTickLine>
177.           </telerik:RadGanttView.TimeRulerLines>
178.           <telerik:RadGanttView.Columns>
179.               <telerik:TreeColumnDefinition Header="工作項目" MemberBinding="{Binding Title}" Width="200" CellTemplate="{StaticResource CriticalPathTemplate}"/>
180.               <telerik:ColumnDefinition Header="開始日期" MemberBinding="{Binding Start, StringFormat='{}{0:yyyy/MM/dd}',ConverterCulture=en-GB}" Width="90" CellTemplate="{StaticResource CriticalPathTemplate}"/>
181.               <telerik:ColumnDefinition Header="結束日期" MemberBinding="{Binding End, StringFormat='{}{0:yyyy/MM/dd}',ConverterCulture=en-GB}" Width="90" CellTemplate="{StaticResource CriticalPathTemplate}"/>
182.           </telerik:RadGanttView.Columns>
183.       </telerik:RadGanttView>

[Kalin]

Hello Mark,

If you remove the GanttItemsPresenter template - do you still observe the described behavior? I'm investigating the snippet and will let you know if I find anything incorrect, meanwhile can you please also let me know the exact version of Telerik UI for WPF that you are using?

I'm looking forward to hearing from you.

Regards,
Kalin
Progress Telerik

[Mark]

Hi Kalin,

Once I removed the GanttItemsPresenter template the problem is well solved.

And my version of Telerik UI for WPF is 2018.2.620.45.

Thanks,

Mark



[Martin Ivanov]

Hello Mark,

At first sight the template seems okay. Would it be possible to isolate this in a sample project and share it here? This will give me a better idea of your exact set up and plotted data,  and I can check what is going on.

Regards,
Martin Ivanov
Progress Telerik
