Hi,
I've implemented the ColumnGroups feature on a grid and it works well enough, but I'm running into a problem when the header of the column group exceeds the width of the actual group and it runs over the borders instead of wrapping onto a new line.
There isn't much documentation available on the ColumnGroups as far as I can see, so I'm not sure how we can get around that? Is there a style setting that we can use in the HeaderStyle or is there another way to do it?
Thanks,
Nemanja
I've implemented the ColumnGroups feature on a grid and it works well enough, but I'm running into a problem when the header of the column group exceeds the width of the actual group and it runs over the borders instead of wrapping onto a new line.
There isn't much documentation available on the ColumnGroups as far as I can see, so I'm not sure how we can get around that? Is there a style setting that we can use in the HeaderStyle or is there another way to do it?
Thanks,
Nemanja
3 Answers, 1 is accepted
0
Hello Nemanja,
Here is how you can achive the desired result . The important code is in yellow.
Please be sure to use the latest dlls (the ones from our latest internal build ) as they contain some relevant fixes.
I am attaching a runnable project with the code above as well
Greetings,
Pavel Pavlov
the Telerik team
Here is how you can achive the desired result . The important code is in yellow.
<
telerik:RadGridView
>
<
telerik:RadGridView.ColumnGroups
>
<
telerik:GridViewColumnGroup
Name
=
"Group1"
Header
=
"Lorem Ipsum Dolor sin amet"
>
<
telerik:GridViewColumnGroup.HeaderTemplate
>
<
DataTemplate
>
<
TextBlock
Text
=
"{Binding }"
TextWrapping
=
"Wrap"
/>
</
DataTemplate
>
</
telerik:GridViewColumnGroup.HeaderTemplate
>
</
telerik:GridViewColumnGroup
>
<
telerik:GridViewColumnGroup
Name
=
"Group2"
Header
=
"Group2"
/>
</
telerik:RadGridView.ColumnGroups
>
<
telerik:RadGridView.Columns
>
<
telerik:GridViewColumn
Width
=
"50"
ColumnGroupName
=
"Group1"
/>
<
telerik:GridViewColumn
Width
=
"50"
ColumnGroupName
=
"Group1"
/>
<
telerik:GridViewColumn
ColumnGroupName
=
"Group2"
/>
<
telerik:GridViewColumn
ColumnGroupName
=
"Group2"
/>
</
telerik:RadGridView.Columns
>
</
telerik:RadGridView
>
Please be sure to use the latest dlls (the ones from our latest internal build ) as they contain some relevant fixes.
I am attaching a runnable project with the code above as well
Greetings,
Pavel Pavlov
the Telerik team
Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>
0
Nemanja
Top achievements
Rank 1
answered on 30 Jan 2012, 01:12 PM
Hi Pavel,
Thanks for this, that's exactly what I was looking for. The only issue now is that we have a global style throughout our application that applies to all column header groups. How would one put that template in the style? The CommonColumnHeader doesn't have a HeaderTemplate property.
Here is the style we have at present, how do we add the text wrap option to it?
Thanks for this, that's exactly what I was looking for. The only issue now is that we have a global style throughout our application that applies to all column header groups. How would one put that template in the style? The CommonColumnHeader doesn't have a HeaderTemplate property.
Here is the style we have at present, how do we add the text wrap option to it?
<
Style
x:Key
=
"RadGridViewHeaderGroupStyle"
TargetType
=
"{x:Type rad:CommonColumnHeader}"
>
<
Setter
Property
=
"HorizontalContentAlignment"
Value
=
"Center"
/>
<
Setter
Property
=
"BorderThickness"
Value
=
"0,0,1,1"
/>
<
Setter
Property
=
"BorderBrush"
Value
=
"#FF83A5D2"
/>
<
Setter
Property
=
"Background"
>
<
Setter.Value
>
<
LinearGradientBrush
EndPoint
=
"0.5,1"
StartPoint
=
"0.5,0"
>
<
GradientStop
Color
=
"#FFEBF3FF"
Offset
=
"0"
/>
<
GradientStop
Color
=
"#FFD0E8FF"
Offset
=
"1"
/>
<
GradientStop
Color
=
"#FFABC9EE"
Offset
=
"0.43"
/>
<
GradientStop
Color
=
"#FFC6DFFF"
Offset
=
"0.42"
/>
</
LinearGradientBrush
>
</
Setter.Value
>
</
Setter
>
</
Style
>
0
F Beto
Top achievements
Rank 1
answered on 05 Sep 2013, 06:48 PM
Hello Pavel,

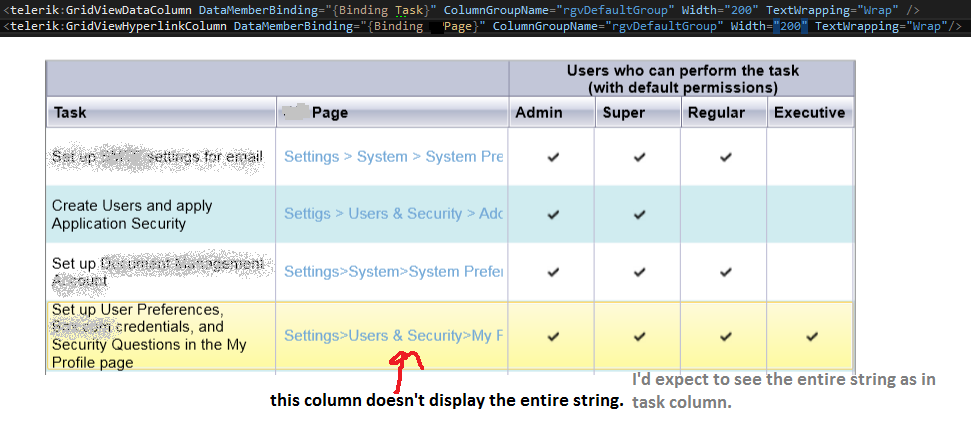

I have a almost the same problem but with GridViewHyperlinkColumn, TextWrapping="Wrap" doesn't work!
I have attached an image. Could you help me? I am using Telerik controls 2013 Q1
Thanks in advance.
I have a almost the same problem but with GridViewHyperlinkColumn, TextWrapping="Wrap" doesn't work!
I have attached an image. Could you help me? I am using Telerik controls 2013 Q1
Thanks in advance.
