[Solved] Child Grid data source action never called

[Mutuhraj]

Hello,
I am having a grid which will show the driver detail and if the use expands one row then I want to show the some information of that driver in another grid.

Below is my code
 <%: Html.Kendo().Grid<PrimeWebInterface.Views.ViewModels.DriverViewModel>()
                 .Name("DriverRoute")
            .Columns(columns =>
            {
                columns.Bound(e => e.Code);
                columns.Bound(e => e.Name);

            })
            .Sortable()
            .Pageable()
            .Scrollable()
            .ClientDetailTemplateId("template")
            .HtmlAttributes(new { style = "height:430px;" })
            .DataSource(dataSource => dataSource
                .Ajax()
                .PageSize(6)
                 .Read(read => read.Action("Bind_Drivers", "DriverRoute"))
            )
            .Events(events => events.DataBound("dataBound"))
    %>

    <script id="template" type="text/kendo-tmpl">
        <%: Html.Kendo().Grid<PrimeWebInterface.Views.ViewModels.DriverRouteGrid>()
                .Name("DriverRoute_#=Code#")
                .Columns(columns =>
                {
                    columns.Bound(o => o.RouteDate);
                    columns.Bound(o => o.ItinaryCode);
                    columns.Bound(o => o.RouteID);
                })
                .DataSource(dataSource => dataSource
                    .Ajax()
                    .PageSize(5)
                    .Read(read => read.Action("Bind_Itinary", "DriverRoute", new { code ="#=Code#" }))
                )
                .Pageable()
                .Sortable()
                .ToClientTemplate()
        %>
    </script>
    <script>
        function dataBound() {
            this.expandRow(this.tbody.find("tr.k-master-row").first());
        }

    </script>
</asp:Content>

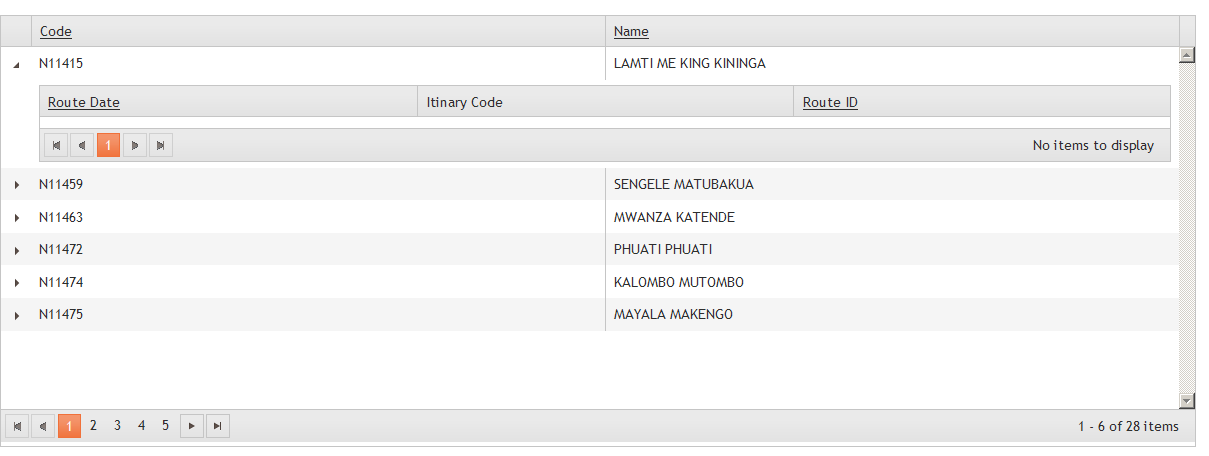

Code (string type) is the primary field. With the above code I can able to see the parent records (Driver) and the child grid not showing any records.


Since I am new to this , I might have missed some setting. So, Could you please guide me to solve this issue.?

Thanks and Best Regards
Muthuraja

[Nikolay Rusev]

Hello Mutuhraj,

The Grid setup looks correct to me. Do you see any JavaScript errors when the detail Grid gets expanded? When you inspect that browser console `Network` tab are there any failed requests with server errors or something? Is your controller and action method correctly implemented?

Here is an article showing how to implement Grid hierarchy step by step: Client Detail Template

Regards,
Nikolay Rusev
Telerik

[Mutuhraj]

Hello Nikolay ,

Thank you very much for your response.

I am not seeing any with the Java Script.

I have attached my files and could you please check it and give your comments.

Thanks and Best Regards,
Muthuraja

[Nikolay Rusev]

Hello Mutuhraj,

I'm afraid that there aren't any attachments in your post. Could you, please try attaching those files again?

Regards,
Nikolay Rusev
Telerik

[Mutuhraj]

Hello Nikolay ,

Please find the files.

Thanks and Best Regards
Muthuraja

[Mutuhraj]

Hello Nickoly,
I am not sure why my attachment is failing, I am zipping it and attach it again.

Thanks and Best Regards
Muthuraja

[Nikolay Rusev]

Hello Mutuhraj,

You are missing kendo.aspnetmvc.min.js in your script section:

<script src="../../Content/js/jquery.min.js"></script>
<script src="../../Content/js/kendo.all.min.js" type="text/javascript"> </script>

<!-- you must add the following script too -->
<script src="../../Content/js/kendo.aspnetmvc.min.js" type="text/javascript"> </script>

See step 5 from the following article for more details: Using Kendo UI in ASP.NET MVC application

Regards,
Nikolay Rusev
Telerik

[Mutuhraj]

Hello Nikolay ,

I have tried adding .js file still the rows are not getting loaded in to the child grid. The Action I have return for the child grid is never gets called.

Please let me know if you have any idea on this.

Thanks and Best Regards
Muthuraja

[Nikolay Rusev]

Hello Mutuhraj,

If you provide us with a runnable sample that illustrates the behavior we will be able to assist you further.

Regards,
Nikolay Rusev
Telerik

[Nate]

Did you resolve this? I am having the same problem.
