CheckBox selection column in a RadGridView

[Alexandru]

hi,

in a winforms app, i am using a RadGridView with MultiSelect = true and i am trying to create a column with check-boxes that will be checked for each row that is selected.
i want this column to work in both ways:
  1) the check-boxes should update themselves each time the list of selected rows is changed.
  2) the user should be able to select additional rows by checking the check-boxes in this column.

currently i was able to implement the first request (the check-boxes are updating themselves according to the selected rows), but not the second one.

i subscribed to the SelectionChanged event of the grid, i unchecked the previously selected check-boxes and then checked the ones from the currently selected rows. here is the code:


        private readonly List<GridViewRowInfo> previouslySelectedRows = new List<GridViewRowInfo>();

        private void HandleGridSelectionChanged(object sender, EventArgs e)
        {
                UnCheckPreviouslySelectedRows();
                CheckCurrentlySelectedRows();
                StoreCurrentlySelectedRows();
        }

        private void UnCheckPreviouslySelectedRows()
        {
            foreach (GridViewRowInfo row in previouslySelectedRows)
            {
                row.Cells["Select"].Value = false;
            }
        }

        private void CheckCurrentlySelectedRows()
        {
            IEnumerable<GridViewCellInfo> cells = radGridView1.SelectedRows
                .Select(x => x.Cells["Select"]);

            foreach (GridViewCellInfo cell in cells)
            {
                cell.Value = true;
            }
        }

        private void StoreCurrentlySelectedRows()
        {
            previouslySelectedRows.Clear();
            previouslySelectedRows.AddRange(radGridView1.SelectedRows);
        }

did someone implement something similar?
can someone help me with the second task (to let the user select/unselect rows by checking/unchecking the check-boxes)?

thank you,
alez

[Hristo]

Hello Alexandru,

Thank you for writing.

The code you provided appears to be working properly. If you would like to keep your logic and additionally allow the user to select rows by simply changing the checkbox value you should also subscribe to CellBeginEdit event. Then you should cancel it because letting it to execute would interfere with you logic:

private void radGridView1_CellBeginEdit(object sender, GridViewCellCancelEventArgs e)
{
    if (this.radGridView1.CurrentColumn.Name == "Select")
    {
        e.Cancel = true;
    }
}

Please bear in mind that multiple selection by design works by holding the Ctrl key. I have attached a .gif file demonstrating the behavior of the grid on my side.

Hope this helps. Should you have further questions do not hesitate to write back.

Regards,
Hristo
Telerik





[Srividya]

Hi Team,

I have different case in the multi level grid view.

Parent 1

  Child 1

    Child 1-1

    Child 1-2

    Child 1-3

  Child 2

    Child 2-1

     Child 2-2

Parent 2

ect....

in above multi level grid check box is placed at the last column

My scenario:

1. if we check the parent 1->Child 1  then all corresponding child (child 1-1,child 1-2)check boxes should be checked.

2. if we uncheck the child 1-1 then child 1 should be uncheck as well as child 1-2 should be in previous state because we haven't touch it ;)

3. if we select a new row I mean parent 2-> child 1-1 then should work above 2 scenarios

4.if we uncheck and check the same row the above first 2 scenarios should work



Please help me out with a simple solution I tried with so many ways by keeping Boolean variables in the code..but no use of it

[Hristo]

Hi Srividya,

Thank you for writing.

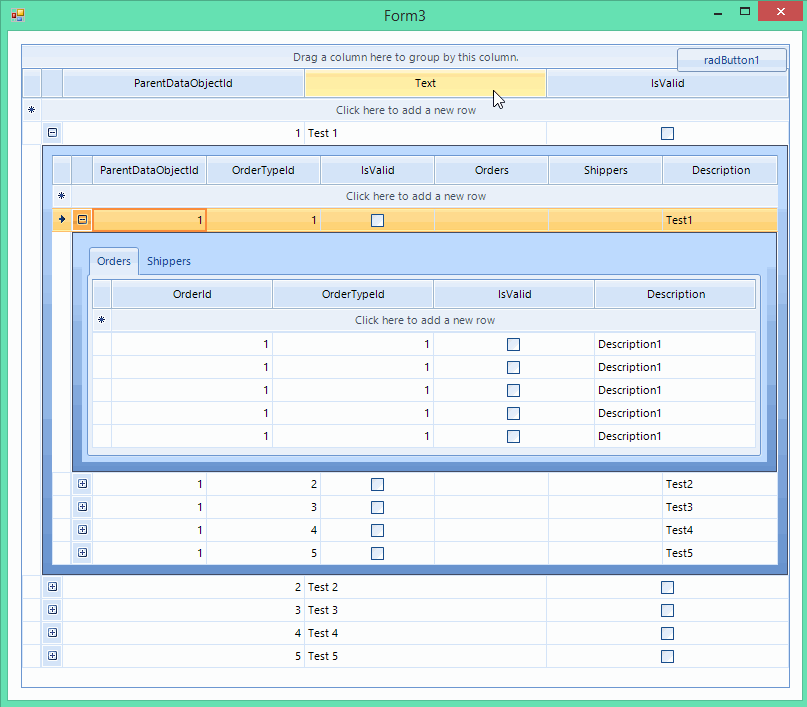

You can achieve this task by iterating the hierarchy and data rows for the different hierarchy templates: Iterating the child rows collection of a chosen parent row in hierarchy RadGridView.

A suitable place for performing this operation is the handler of the CellValueChanged event. Please check my code snippet below:

bool suspendEvent = false;
private void radGridView1_CellValueChanged(object sender, GridViewCellEventArgs e)
{
    if (!suspendEvent && e.Column.Name == "IsValid")
    {
        List<GridViewHierarchyRowInfo> parents = new List<GridViewHierarchyRowInfo>();
        GridViewHierarchyRowInfo parent = e.Row.Parent as GridViewHierarchyRowInfo;
        while (parent != null)
        {
            parents.Add(parent);
            parent = parent.Parent as GridViewHierarchyRowInfo;
        }

        suspendEvent = true;
        foreach (GridViewHierarchyRowInfo p in parents)
        {
            if (p.Views.Count > 0)
            {
                p.Cells["IsValid"].Value = this.CheckCellsForLevel(p.Views[0]);
            }
        }

        GridViewHierarchyRowInfo hierarchyRow = e.Row as GridViewHierarchyRowInfo;
        if (hierarchyRow != null)
        {
            Queue<GridViewHierarchyRowInfo> children = new Queue<GridViewHierarchyRowInfo>();
            children.Enqueue(hierarchyRow);

            while (children.Count > 0)
            {
                GridViewHierarchyRowInfo current = children.Dequeue();
                foreach (GridViewRowInfo row in current.ChildRows)
                {
                    row.Cells["IsValid"].Value = e.Value;
                    if (row is GridViewHierarchyRowInfo)
                    {
                        children.Enqueue((GridViewHierarchyRowInfo)row);
                    }
                }
            }
        }

        suspendEvent = false;
    }
}

private bool CheckCellsForLevel(GridViewInfo template)
{
    foreach (GridViewRowInfo rowInfo in template.Rows)
    {
        if ((bool)rowInfo.Cells["IsValid"].Value == false)
        {
            return false;
        }
    }

    return true;
}

Please note that in order to illustrate the idea and to make the example simpler in all of my grid templates I am having a GridViewCheckBoxColumn with the name IsValid. You may need to alter this to access the proper cells in your actual project. I am also sending you a short video showing the result on my end.

I hope this helps. Should you have further questions please do not hesitate to write back.

Regards,
Hristo Merdjanov
Telerik by Progress

[Srividya]

Hi Hristo,

The above code is working as expected thank you so much.....

:)

Regards,

Srividya

[swarupa]

Hi Hristo,

The above code is useful for one of my requirements.

I am using telerik 2013 version.

I need to display Checkbox in the header row for all the three level gridview, so that I can check and uncheck the checkboxes in the data rows automatically when the header checkbox is checked or unchecked.

In 2013 version we don't have Gridviewcheckboxcolumn.EnableHeaderCheckBox Property.

So I have used the following code, which I have taken from Telerik forums to enable the header check boxes in all the

three levels gridview. Its working fine in the first level gridview, but it is not working for second and third levels gridview.



public class CheckBoxHeaderCell : GridHeaderCellElement
{
#region Fields
private RadCheckBoxElement checkbox;
private int suspendNotificationCount = 0;
private bool suspendProcessingToggleStateChanged;
#endregion
#region Initialization
public CheckBoxHeaderCell(GridViewColumn column, GridRowElement row)
: base(column, row)
{
}
protected override void InitializeFields()
{
base.InitializeFields();
this.DrawText = false;
}
public override void Initialize(GridViewColumn column, GridRowElement row)
{
base.Initialize(column, row);
column.AllowSort = false;
}
protected override void DisposeManagedResources()
{
this.checkbox.ToggleStateChanged -= new StateChangedEventHandler(checkbox_ToggleStateChanged);
base.DisposeManagedResources();
}
protected override void CreateChildElements()
{
base.CreateChildElements();
this.checkbox = new RadCheckBoxElement();
this.checkbox.ToggleStateChanged += new StateChangedEventHandler(checkbox_ToggleStateChanged);
this.Children.Add(checkbox);
} #endregion
#region Properties
protected override Type ThemeEffectiveType
{
get
{
return typeof(GridHeaderCellElement);
}
}
public override object Value
{
get
{
return Convert.ToBoolean(this.RowInfo.Tag);
}
set
{
this.RowInfo.Tag = value;
}
} #endregion
#region Methods
public void SetCheckBoxState(Telerik.WinControls.Enumerations.ToggleState state)
{
suspendProcessingToggleStateChanged = true;
this.checkbox.ToggleState = state;
suspendProcessingToggleStateChanged = false;
}

protected override void SetContentCore(object value)
{
base.SetContentCore(value);
this.suspendNotificationCount++;
if (this.RowInfo.Tag != null)
{
this.checkbox.ToggleState = (bool)value ? ToggleState.On : ToggleState.Off;
}
else
{
this.checkbox.ToggleState = ToggleState.Off;
}
this.checkbox.TextElement.Text = this.Text;
this.suspendNotificationCount--;
}
public override bool IsCompatible(GridViewColumn data, object context)
{
return data.Name == "Select" && context is GridTableHeaderRowElement
&& base.IsCompatible(data, context);
}
#endregion
#region Event Handlers
private void checkbox_ToggleStateChanged(object sender, StateChangedEventArgs args)
{
if (!suspendProcessingToggleStateChanged)
{
for (int i = 0; i < this.GridControl.Rows.Count; i++)
{
this.GridControl.Rows[i].Cells[this.ColumnIndex].Value = this.checkbox.IsChecked;
}
}

} #endregion
#region Layout
protected override SizeF ArrangeOverride(SizeF finalSize)
{
SizeF size = base.ArrangeOverride(finalSize);
RectangleF rect = GetClientRectangle(finalSize);
this.checkbox.Arrange(new RectangleF((finalSize.Width - this.checkbox.DesiredSize.Width) / 2, (rect.Height - 20) / 2, 20, 20));
return size;
} #endregion }

private void DgSearchBdPortsResult_CreateCell(object sender, Telerik.WinControls.UI.GridViewCreateCellEventArgs e)
{
if (e.Row is GridTableHeaderRowElement && e.Column.HeaderText == "Select All")
{
e.CellElement = new CheckBoxHeaderCell(e.Column, e.Row);
}

}



private void DgSearchBdPortsResult_ValueChanged(object sender, EventArgs e)
{
DgSearchBdPortsResult.EndEdit();

}

Thanks And Regards,

Swarupa



[Hristo]

Hello Swarupa,

Thank you for writing back.

I am glad that the suggested approach is working well in your project. Regarding the header checkbox please note that the KB solution as stated here and our latter implementation handles the rows from a single template.

When you have the grid created in a hierarchy the columns on the various levels may be completely different. If you want this header checkbox to be responsible for rows located in child templates you need to handle it separately. You can alter the solution from the KB article to cope with the hierarchy following an approach as the one discussed here.

I hope this helps. Should you have further questions please do not hesitate to write back.

Regards,
Hristo Merdjanov
Telerik by Progress

[Pavel]

Sorry for bumping an old thread, but this is the exact same thing I am trying to do.

I tried subscribing to the CellBeginEdit event, but as soon as I click the checkbox, all the rows get deselected. What are the ppoperties that my RadGrid and my columns need to have in order to make it work?

[Hristo]

Hi Pavel,

Thank you for writing.

I am not sure what exactly is your scenario. Can you please provide more details about your task. A general code snippet demonstrating your local setup would also help.

Looking forward to your reply.

Regards,
Hristo Merdjanov
Telerik by Progress

[Thanh]

Hello,

I have another case related to the relationship of "Select All" checkbox and hierarchy checkbox.

I have a sample , please note that the just has only 1 parent row as below:

==========================================================

(cb#1) Select All checkbox   |   Column A   |   Column B   |   ...

(cb#2) Parent

     (cb#3) Child 1

          (cb#4) Child 1-1

          Child 1-2

          Child 1-3

     Child 2

          Child 2-1

          Child 2-2

...

==========================================================

The requirement rules are:

1. Check on Select All (cb#1) checkbox > All checkboxes will be checked

2. Check on Parent (cb#2) checkbox > All children checkboxes will be checked

3. Uncheck a child checkbox > Keep the state of its parent checkbox, but the state of Select All (cb#1) must be changed to unchecked.



My problem is the rule #3, please see the reproduce steps below:

1. Check on cb#1, so all checkboxes will be checked

2. Uncheck cb#4, as the requirement, keep the cb#2 and cb#3 as checked, but the cb#1 should be unchecked.



By default,

- The cb#1 and cb#2 has the relationship.

- The cb#2 and cb#3 and cb#4 has the relationship.

I don't know how to implement the relationship of cb#1 and cb#3 / cb#4, since the children checkboxes just have the relationship with its parent, and the Select All checkbox jus have the relationship with the highest parent of .

Please advice! Thanks so much!



Best regards,

THANH



[Hristo]

Hi Thanh,

Thank you for writing.

I would like to clarify that the checkboxes displayed in the header of the column are only responsible for checking and unchecking rows within the same template. The header checkbox can be displayed this way:

(this.radGridView1.MasterTemplate.Columns["Select All"] as GridViewCheckBoxColumn).EnableHeaderCheckBox = true;

Any other logic responsible for checking and unchecking rows from different templates is custom. You can follow the approach I sent in one of my previous posts. You can try removing the logic for checking the parents in the CellValueChanged event handler:

bool suspendEvent = false;
private void radGridView1_CellValueChanged(object sender, GridViewCellEventArgs e)
{
    if (!suspendEvent && e.Column.Name == "Select All")
    {
        suspendEvent = true;
        GridViewHierarchyRowInfo hierarchyRow = e.Row as GridViewHierarchyRowInfo;
        if (hierarchyRow != null)
        {
            Queue<GridViewHierarchyRowInfo> children = new Queue<GridViewHierarchyRowInfo>();
            children.Enqueue(hierarchyRow);

            while (children.Count > 0)
            {
                GridViewHierarchyRowInfo current = children.Dequeue();
                foreach (GridViewRowInfo row in current.ChildRows)
                {
                    row.Cells["Select All"].Value = e.Value;
                    if (row is GridViewHierarchyRowInfo)
                    {
                        children.Enqueue((GridViewHierarchyRowInfo)row);
                    }
                }
            }
        }

        suspendEvent = false;
    }
}

I hope this helps. Should you have further questions please do not hesitate to write back.

Regards,
Hristo
Progress Telerik

[Thanh]

Hi Hristo,

Thanks for your reply. I'm sorry for lack of information so that the solution you provided cannot resolve my problem.

Please see my detail information below:

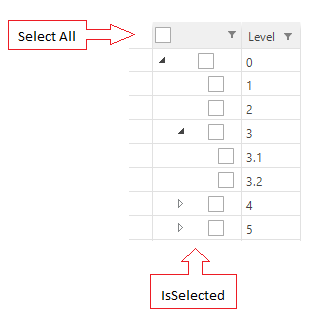

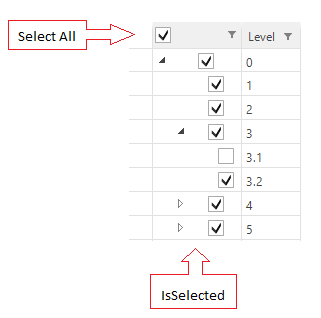

1. I have a sample has 2 column, see attachment #1:

     - The first column is "IsSelected" column. It's a GridViewCheckBoxColumn type and it has no HeaderText value. I've already applied EnableHeaderCheckBox for this so that the system will automatically generate a header checkbox column, I will call it a Select All checkbox.

     - The second column is "Level" column, it's simply a GridViewTextBoxColumn type. Please note that the level 0 is the highest level, it is the parent of all other levels.

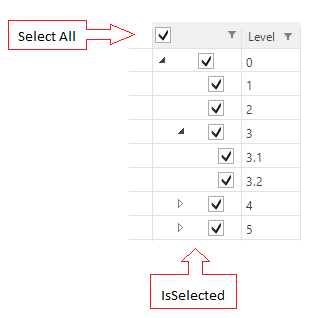

2. When I click on Select All checkbox, all the checkboxes will be checked, see attachment #2.

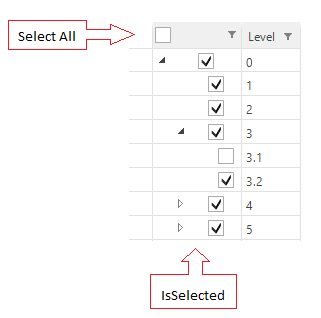

3. This is my problem. When I click on the checkbox of level 3.1, see the result in attachment #3. What I expect is the result in attachment #4, I want the Select All checkbox will be unchecked, but the parent checkboxes of level 3.1, include the checkbox of level 3 and the checkbox of level 0 will be kept as "checked" state.



All the checkboxes in "IsSelected" column, include the Select All , have the same GridViewCheckBoxColumn type and all of the rows, include the header row, have the same GridViewHierarchyRowInfo type. That's why when I click on the checkbox of level 3.1, I have no idea to detect the Select All checkbox to update its state. And I recognized the Select All checkbox and the checkbox of level 0 has the relationship, they always have the same state, I afraid if the Select All checkbox is unchecked, the checkbox of level 0 is unchecked too.



Please advice! Thanks a lot!



Regards,

THANH

[Thanh]

Hello,

I'm still looking forward to hearing the good news.

Please help!



Thanks and Best regards,

THANH

[Dess | Tech Support Engineer, Principal]

Hello, Thanh,

Thank you for writing.

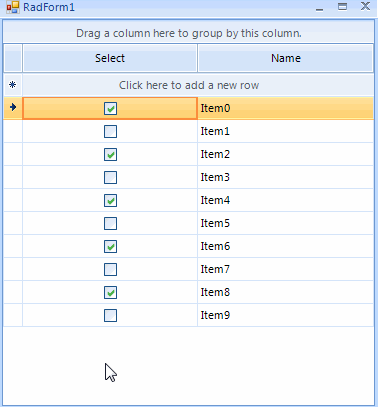

The header checkbox is designed to control the toggle state of the cells in the GridViewCheckBoxColumn for the same template. Hence, if you uncheck the header checkbox, all rows will be unchecked as well and vice versa. This is desired behavior. If you need to customize this default behavior, I would recommend you to create a custom GridCheckBoxHeaderCellElement and add your own RadCheckBoxElement with which you can fully manage the ToggleState according to your custom requirement. Here is a sample code snippet demonstrating how to add a custom checkbox and toggle the rows for the parent template:

public RadForm1()
{
    InitializeComponent();

    DataTable dt = new DataTable();
    dt.Columns.Add("IsActive", typeof(bool));
    dt.Columns.Add("Name", typeof(string));

    for (int i = 0; i < 5; i++)
    {
        dt.Rows.Add(false, "Item" + i);
    }
    this.radGridView1.CreateCell += radGridView1_CreateCell;
    this.radGridView1.DataSource = dt;
    this.radGridView1.AutoSizeColumnsMode = Telerik.WinControls.UI.GridViewAutoSizeColumnsMode.Fill;
}

private void radGridView1_CreateCell(object sender, GridViewCreateCellEventArgs e)
{
    if (e.CellType == typeof(GridCheckBoxHeaderCellElement))
    {
        e.CellElement = new CustomGridCheckBoxHeaderCellElement(e.Column, e.Row);
    }
}

public class CustomGridCheckBoxHeaderCellElement : GridCheckBoxHeaderCellElement
{
    public CustomGridCheckBoxHeaderCellElement(GridViewColumn column, GridRowElement row)
        : base(column, row)
    {
    }

    RadCheckBoxElement myCheckBoxElement = new RadCheckBoxElement();

    protected override void CreateChildElements()
    {
        base.CreateChildElements();

        myCheckBoxElement.ToggleStateChanged += myCheckBoxElement_ToggleStateChanged;
        this.Children.Add(myCheckBoxElement);
    }

    private void myCheckBoxElement_ToggleStateChanged(object sender, StateChangedEventArgs args)
    {
        this.GridControl.BeginUpdate();
        this.RowInfo.Tag = args.ToggleState;

        foreach (GridViewRowInfo row in this.GridControl.Rows)
        {
            if (row.HierarchyLevel == 0)
            {
                row.Cells["IsActive"].Value = args.ToggleState;
            }
        }
        this.GridControl.EndUpdate();
    }

    public override void SetContent()
    {
        base.SetContent();
        myCheckBoxElement.ToggleStateChanged -= myCheckBoxElement_ToggleStateChanged;
        if (this.RowInfo.Tag != null)
        {
            myCheckBoxElement.ToggleState = (ToggleState)this.RowInfo.Tag;
        }
        myCheckBoxElement.ToggleStateChanged += myCheckBoxElement_ToggleStateChanged;
    }
}

Note that this is just a sample approach and it may not cover all possible cases. Feel free to modify it in a way which suits your requirement best.

I hope this information helps. Should you have further questions I would be glad to help.

Regards,
Dess
Progress Telerik

[Thanh]

Hello Dess,

I really appreciate your help.

Your solution is amazing.



Thanks and Best regards,

THANH

[Deepak]

Hello,

I have a GridView with the first column as checkbox column. I need to select only one row at a time. If row is being selected then the checkbox from the previous row should be removed.

Is it possible to check only one checkbox at a time?



Regards,

Deepak

[Dess | Tech Support Engineer, Principal]

Hello, Deepak,

Thank you for writing.

In order to cover your scenario, you can subscribe to the CurrentRowChanging event where you have access to the previously and newly selected row. Thus, you can manipulate the value of the boolean cell. Here is a sample code snippet which result is illustrated in the attached gif file:

public RadForm1()
{
    InitializeComponent();
    this.radGridView1.CurrentRowChanging += radGridView1_CurrentRowChanging;
    DataTable dt = new DataTable();
    dt.Columns.Add("IsActive", typeof(bool));
    dt.Columns.Add("Id", typeof(int));
    dt.Columns.Add("Name", typeof(string));
    for (int i = 0; i < 10; i++)
    {
        dt.Rows.Add(false, i, "Item" + i);
    }
    this.radGridView1.DataSource = dt;
    this.radGridView1.AutoSizeColumnsMode = Telerik.WinControls.UI.GridViewAutoSizeColumnsMode.Fill;
}

private void radGridView1_CurrentRowChanging(object sender, Telerik.WinControls.UI.CurrentRowChangingEventArgs e)
{
    if (e.NewRow != null)
    {
        e.NewRow.Cells["IsActive"].Value = true;
    }
    if (e.CurrentRow != null)
    {
        e.CurrentRow.Cells["IsActive"].Value = false;
    }
}

I hope this information helps. Should you have further questions I would be glad to help.

Regards,
Dess
Progress Telerik

[Deepak]

Hello Dess,



The code is working fine with Gridview1. If I add GridView2 with checkbox then radGridView1_CurrentRowChanging is called automatically on toggling checkbox of the GridView2. Both these GridViews are not linked.

I don't want to call radGridView1_CurrentRowChanging on toggle of the GridView2 checkbox.

Deepak

[Dess | Tech Support Engineer, Principal]

Hello, Deepak,

Thank you for writing back.

If both RadGridView controls don't use the same DataSource and the handled events don't affect the current row, it is not supposed changing the toggle state of a checkbox in one of the grids to affect the second's row current row. I suppose that there is some code snippet that performs this changing.

If you are still experiencing any further difficulties, feel free to submit a support ticket where you can provide a sample project demonstrating the undesired behavior. Thus, we would be able to make an adequate analysis of the problem and assist you further. Thank you in advance.

If you have any additional questions, please let me know.

 Regards,
Dess
Progress Telerik

[Deepak]

Thanks, Dess. My source was same. I have one question.

I created a gridview from a DataTable with one column as a bool. It got converted into checkbox column. Now I am trying to check multiple checkboxes but unable to do so. Can you help me?



[Dess | Tech Support Engineer, Principal]

Hello, Deepak,

Thank you for writing back.

I am glad that the previous issue you were facing is now resolved. Could you please specify how exactly you try to check multiple checkboxes? There is no specific setting that enables or disables this functionality. It is simply necessary to toggle the checkbox in the grid cells by clicking with the mouse. It would be greatly appreciated if you can provide additional information about the precise case that you have. Thus, we would think about a suitable solution and assist you further. Thank you in advance.

I am looking forward to your reply.

Regards,
Dess
Progress Telerik

[Deepak]

Hello Dess,

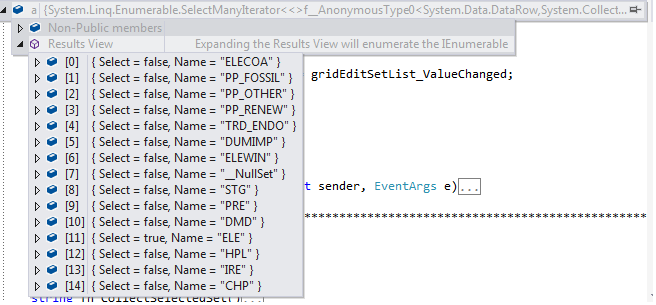

I have given data in list format to the grid view. One column is a bool and another is a string.

Check the files I have attached.It will give you the clear picture.

[Deepak]

Hello,

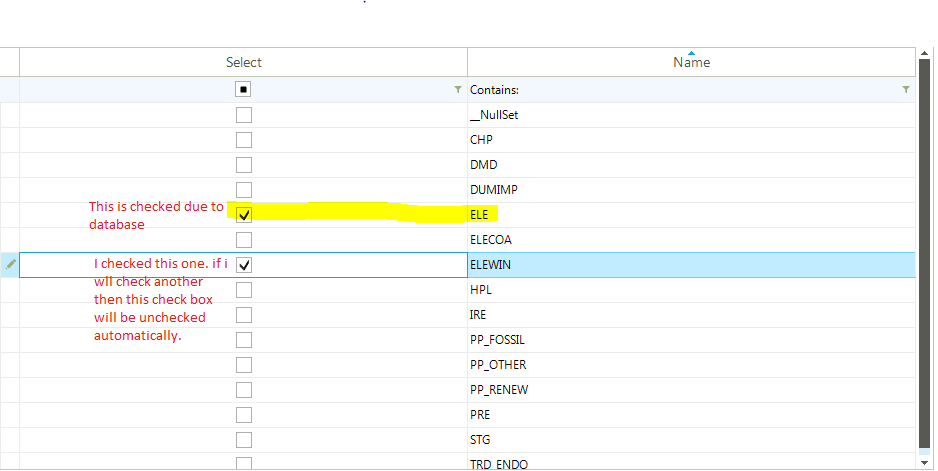

I created the grid with a list as the data source. My data has two columns (bool, string) and a few rows. I need to select multiple rows but unable to do so. If I select one check then the previously selected row gets unchecked. The checked row which was created because of the bool=true column remains unchanged.

[Dess | Tech Support Engineer, Principal]

Hello, Deepak,

Thank you for writing back.

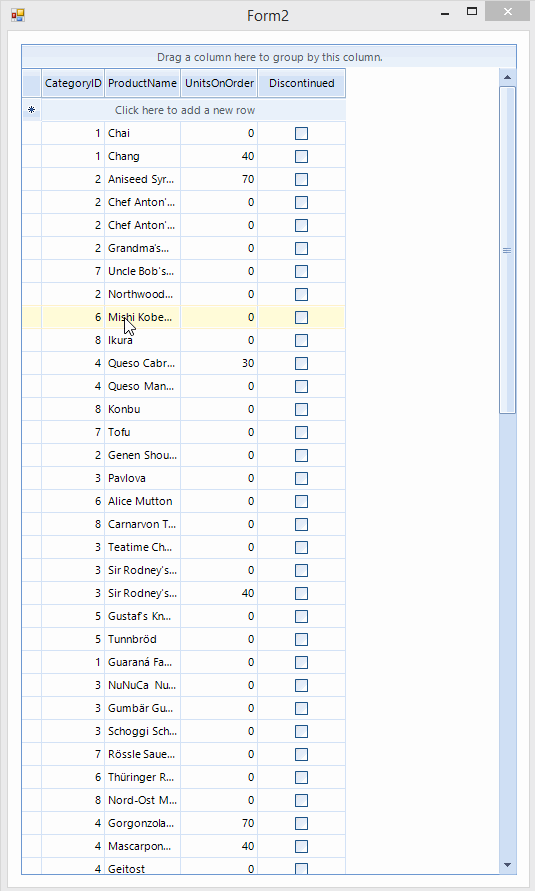

The provided detailed explanation and screenshots are greatly appreciated. However, I am still unable to replicate the described behavior. Please refer to the attached gif file illustrating the behavior on my end with the specified version. I have attached my sample project. Could you please specify the exact steps how to reproduce the problem? Once we reproduce the problem we would be able to investigate the precise case and assist you further.

I am looking forward to your reply.

Regards,
Dess
Progress Telerik
