Chart fill bar color in range/candlestick charts

1 Answer 101 Views
Report Designer (standalone)
Dyan
Top achievements
Rank 1
Dyan asked on 14 Oct 2022, 10:21 PM

Hello Team,

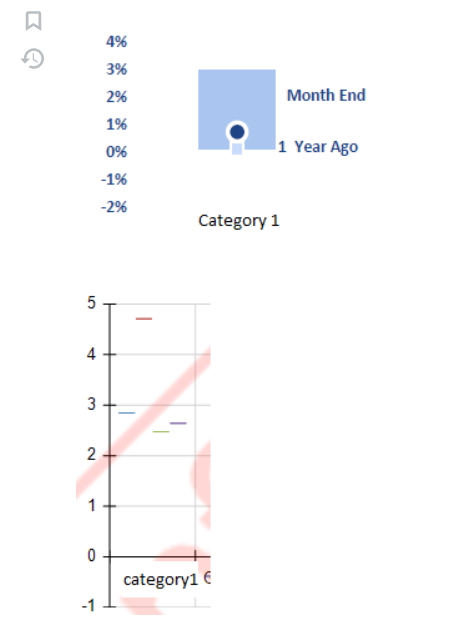

I am looking to build report similar to below image 1, but only lines are displayed for min, max, monthend and yearend



how to fill in bar color ? any properties to set ?

image 2 is created using telerik report designer (candelstick chart)

1 Answer, 1 is accepted

Sort by
0
Dimitar
Telerik team
answered on 19 Oct 2022, 02:43 PM

Hi Dyaneshwaran,

The bar markers are auto-filled depending on the values of the open, high, low, and close mark values defined in the Graph.GraphSeries.OhlcMarks property.

The color of the bar can be controlled either in the Series.DataPointStyle.BackgroundColor or with conditional formatting through the Series.DataPointConditionalFormatting property.

I have attached a sample report with an OHLC graph with colorized bars, please check it out and let me know if you have any further questions.

Regards,
Dimitar
Progress Telerik

Brand new Telerik Reporting course in Virtual Classroom - the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products. Check it out at https://learn.telerik.com/.
Dyan
Top achievements
Rank 1
commented on 07 Nov 2022, 11:29 PM

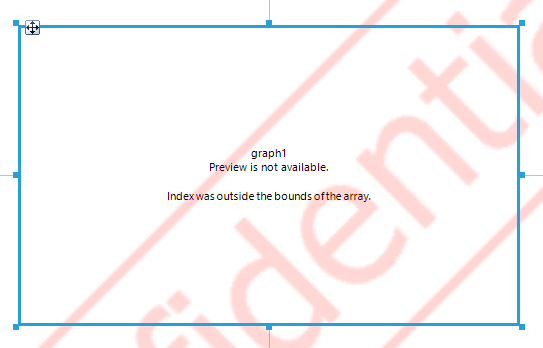

What could be issue with below error

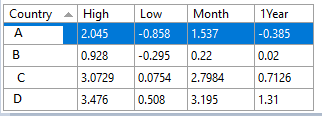

Data using in report

Dimitar
Telerik team
commented on 10 Nov 2022, 01:24 PM

I have created a new graph in the report with the data provided in your reply but the issue was not reproduced.

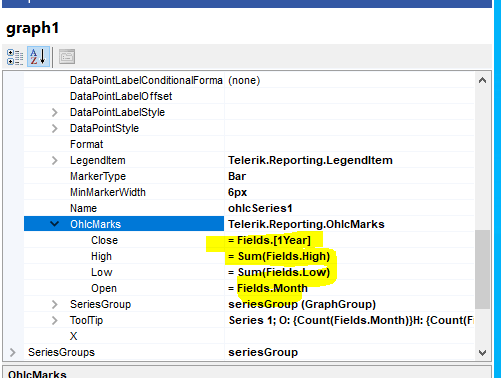

I have re-attached the report with the new graph so that you may use it for reference. I used the Candlestick graph wizard setting the OhlcMarks as shown in the second image and the graph loaded successfully so you shouldn't experience issues either if you use the wizard.

In case you need further assistance, please send me your report so that I may have a look at it.

Dyan
Top achievements
Rank 1
commented on 30 Nov 2022, 11:17 PM

Thank you Dimitar, is it possible to add Circle or Box for High low points?
Dimitar
Telerik team
commented on 05 Dec 2022, 01:58 PM

If I understand correctly, you would like to add some kind of a mark to the High and Low points in the Candlestick graph, is that correct?

In order to do such a thing, you would need to introduce two line series graphs that use the same coordinate system as that of the OHLC series of the graph, as well as the same Series and Category grouping.

This is basically the approach explained in the Create a Graph Report Item with Column and Line Series - Telerik Reporting article, however, in order to illustrate it better, I have recorded a short video of how a Square marked line graph can be created on top of the OHLC series in order to display a square at the Low points. The approach is absolutely identical for the High points too.

I have attached the video and the modified report to my reply, please check them out and let me know if you have any further questions.

Dyan
Top achievements
Rank 1
commented on 05 Dec 2022, 07:02 PM

Thank you very much Dimitar, much appreciated for all your help !! it works now :)
