Changing X-axis item labels

[Matthew Hile]

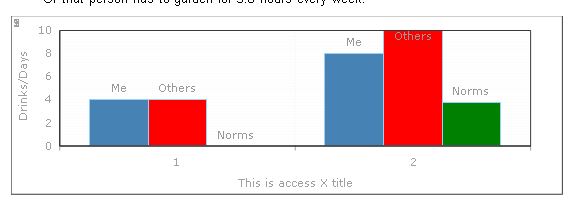

Using VS 2010 and Q2 2012 reporting. I have chart (attached) in my report based on a dynamic query. The query returns 4 columns and two rows as shown below

Question           Me Others Norms
Days in 7           4 4       0.00
Drinks per day  8 10         3.80

I would like to change the X-axis item labels from 1 and 2 to "Days in 7" and "Drinks per day".

Where in the designer can I do this? Do I need to change the way the data is returned from the database?

Thanks,

Matthew

[Steve]

Hello Matthew,

When the chart is bound to a datasource declaratively, you cannot affect the series in any way, because they are generated at run time. To change the labels along an Axis you should create the series programmatically:

• Set AutoScale to false.
• Add a range of items to the axis.
• Populate the Items.

Here is a sample markup:

Chart.PlotArea.XAxis.AutoScale = false;
Chart.PlotArea.XAxis.AddRange(1, 2, 1);
Chart.PlotArea.XAxis[0].TextBlock.Text = "Days in 7";
Chart.PlotArea.XAxis[1].TextBlock.Text = "Drinks per day";

All the best,
Steve
the Telerik team
