[Solved] can I add text to a linear gauge

[Chriso]

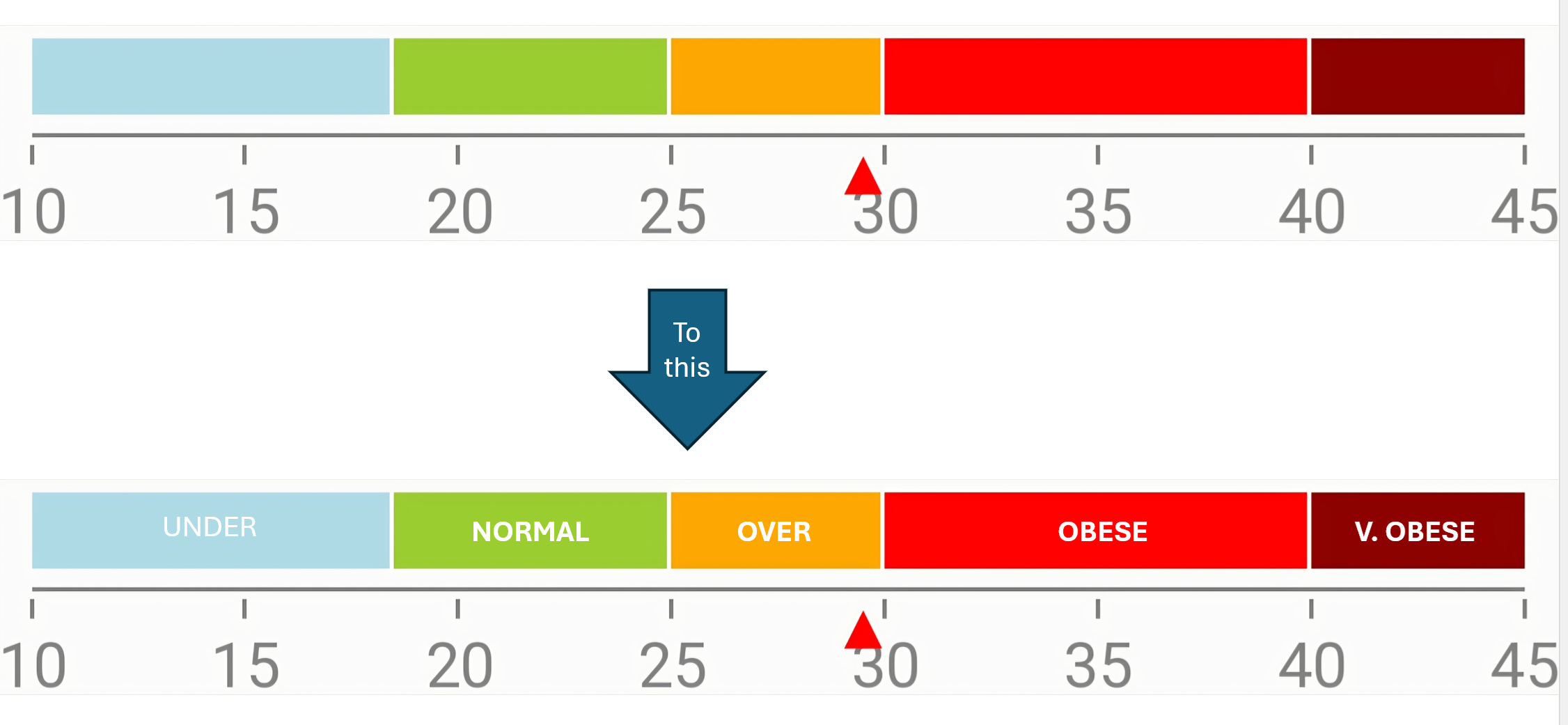

Hi, is it possible to modify a linear gauge, so that there is text inside the various ranges? as per the example

[Denis]

Hello Chriso,

Thank you for the question and the provided image.

The scenario can be achieved using the GaugeTextIndicator. So mainly you have to add several indicators based on the ranges. Here is an example:

	<VerticalStackLayout HeightRequest="100">
		<!-- The Horizontal Gauge -->
		<telerik:RadHorizontalGauge HeightRequest="100">
			<telerik:RadHorizontalGauge.Axis>
				<telerik:GaugeLinearAxis Minimum="10"
                                             Maximum="45"
                                             Step="5"
                                             ShowLabels="True"
                                             TickThickness="1"
                                             TickPosition="End"
                                             LabelPosition="End"
                                             FontSize="16" />
			</telerik:RadHorizontalGauge.Axis>
			<telerik:RadHorizontalGauge.Indicators>
				<telerik:GaugeShapeIndicator Value="28" />
				<telerik:GaugeTextIndicator

						  Text="UNDER"
						  TextColor="White"
						  TextMargin="4" Position="Start"
						  Offset="15"
						  Value="14" />
				<telerik:GaugeTextIndicator

				  Text="NORMAL"
				  TextColor="White"
				  TextMargin="4" Position="Start"
				  Offset="15"
				  Value="20" />
				<telerik:GaugeTextIndicator

				  Text="OVER"
				  TextColor="White"
				  TextMargin="4" Position="Start"
				  Offset="15"
				  Value="27" />
				<telerik:GaugeTextIndicator

				  Text="OBESE"
				  TextColor="White"
				  TextMargin="4" Position="Start"
				  Offset="15"
				  Value="35" />
				<telerik:GaugeTextIndicator

	  Text="V. OBESE"
	  TextColor="White"
	  TextMargin="4" Position="Start"
	  Offset="15"
	  Value="42" />
			</telerik:RadHorizontalGauge.Indicators>
			<telerik:RadHorizontalGauge.Ranges>
				<telerik:GaugeRangesDefinition StartThickness="45"
                                                   EndThickness="45"
                                                   Position="Start">
					<!-- Under: 10-18.5 - Light Blue -->
					<telerik:GaugeRange From="10" To="18.5" Color="#ADD8E6" />
					<!-- Normal: 18.5-25 - Green -->
					<telerik:GaugeRange From="18.5" To="25" Color="#8BC34A" />
					<!-- Over: 25-30 - Orange -->
					<telerik:GaugeRange From="25" To="30" Color="#FFA726" />
					<!-- Obese: 30-40 - Red -->
					<telerik:GaugeRange From="30" To="40" Color="#F44336" />
					<!-- V. Obese: 40-45 - Dark Red -->
					<telerik:GaugeRange From="40" To="45" Color="#8B0000" />
				</telerik:GaugeRangesDefinition>
			</telerik:RadHorizontalGauge.Ranges>
		</telerik:RadHorizontalGauge>
	</VerticalStackLayout>

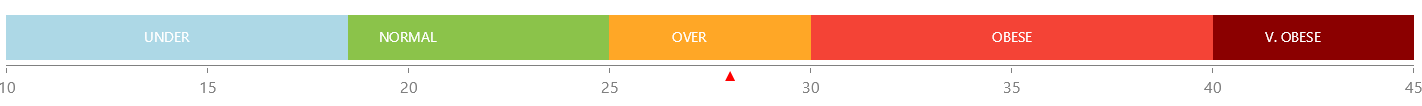

and an image is attached.

Also I have logged a feature request on your behalf, for extending the gage ranges definition: https://feedback.telerik.com/maui/1706022-gauge-provide-option-to-set-text-in-the-gauge-ranges-definition and updated your Telerik points for this report.

Regards,
Denis
Progress Telerik
