Buttons alignment

[Hans]

Hi !

I have a rad toolstrip with 3 butons, Save, Clear and Exit.
I would like to align exit button at the end on the right side.

Can I do this? How?

Thank you !
Hans

[Richard Slade]

Hi,

Im fairly sure that the buttons cannot be right aligned, but you could always add a margin to the right most button to create the desired space. E.g.

Me.RadButtonElementExit.Margin.Left = value

Hope that helps
Richard

[Richard Slade]

Note, that there is also a new control that will replace this one soon called RadCommandBar.

You can find out more about the new release at this link

Richard

[Peter]

Indeed, Hans, as Richards mentions, we have been working on a new control - RadCommandBar - that will  replace the existing RadToolstrip.

The new control will provide this feature (which currently is not support by RadToolstrip.) and will also provide Visual Style Builder support, auto-collapse, and much better design-time support.

Hope this helps.

Greetings,
Peter
the Telerik team

[Francisco]

Hello,

  I am trying to accomplish the right alignment of a button like it was mentioned on this post using the CommandBarButton but I can't find the setting to do that.

I am using Telerik version 2015.2.728.40

Thanks

Francisco

[Dess | Tech Support Engineer, Principal]

Hello Francisco,

Thank you for writing.

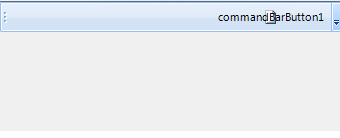

In order to achieve your requirement with right aligned CommandBarButton, please, have a look at the following code snippet:

public Form1()
{
    InitializeComponent();
    this.commandBarStripElement1.StretchHorizontally = true;
    this.commandBarButton1.StretchHorizontally = true;
    this.commandBarButton1.Alignment = ContentAlignment.MiddleRight;
    this.commandBarButton1.MaxSize = new Size(120, 0);

}

I hope this information helps. Should you have further questions I would be glad to help.



Regards,
Dess
Telerik

[Francisco]

Hello Dess,

  This works!

Thanks

- Francisco
