Bubble Chart on RadChartView

1 Answer 69 Views
Chart
This is a migrated thread and some comments may be shown as answers.
Mark Oldytowski
Top achievements
Rank 1
Mark Oldytowski asked on 22 Aug 2012, 07:41 PM
Can you provide an example of a data bound Bubble Chart using the new RadChartView controls? I have seen a few examples using the old RadChart controls but none as of yet using RadChartView.

Thanks,

Mark

1 Answer, 1 is accepted

Sort by
0
Petar Marchev
Telerik team
answered on 27 Aug 2012, 08:55 AM
Hi Mark,

The RadChartView does not offer Bubble Series. This feature is still not in our development plans and currently this is not supported.

However I think that in some scenarios it would be a feasible solution to use ScatterPointSeries and define a PointTemplate, in which you can place an Ellipse which size is defined by a property of the underlying business item:
<telerik:ScatterPointSeries.PointTemplate>
 <DataTemplate>
  <Ellipse Width="{Binding DataItem.BubbleSize}" Height="{Binding DataItem.BubbleSize}" Fill="Blue"/>

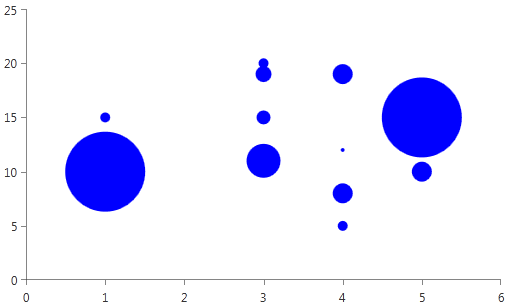

One little trick you must apply is set the Width and Height of the ContentPresenter which hosts the Ellipse to be enough to accomodate the largest bubble possible. I have attached a simple app to demonstrate this, and a snapshot of the output that I get when I run the app. In the attached project, the largest possible bubble is 80x80 and this is why I have set this code:
<telerik:ScatterPointSeries.Resources>
 <Style TargetType="ContentPresenter">
  <Setter Property="Height" Value="80" />
  <Setter Property="Width" Value="80" />

Give this approach a try and see if you can adopt it to your current project.

Regards,
Petar Marchev
the Telerik team
