Blurred horizontal lines

1 Answer 22 Views
GridView
This is a migrated thread and some comments may be shown as answers.
Jiri
Top achievements
Rank 1
Jiri asked on 25 Nov 2013, 08:55 AM

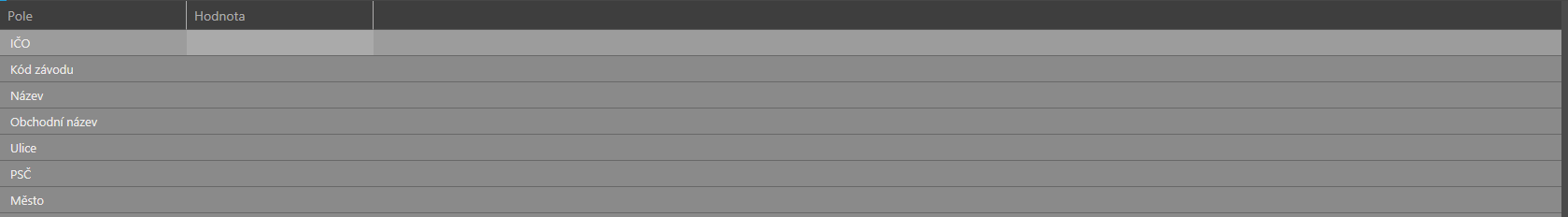

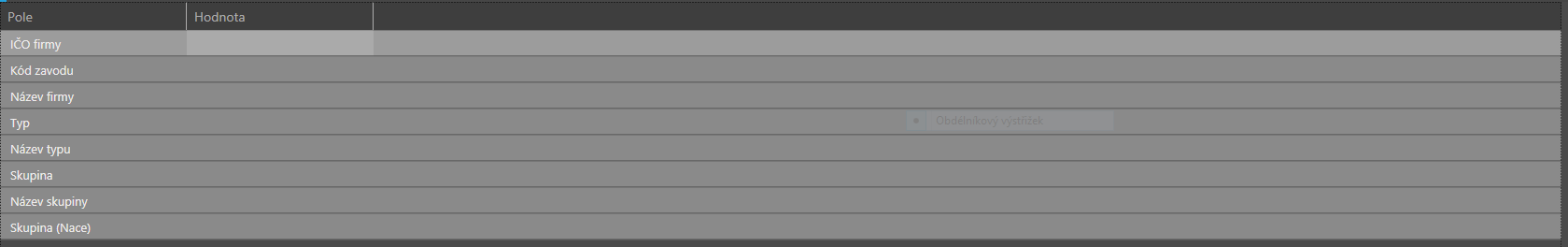

Hi I have problem, when I set up HorizontalGridLinesBrush to my grid, it gets blurred (when I set top margin to 32 everything is fine)

here is my caml grid row setup:

<ControlTemplate x:Key="GridViewRowTemplate" TargetType="grid:GridViewRow">
        <Border BorderThickness="{TemplateBinding BorderThickness}" BorderBrush="{TemplateBinding BorderBrush}">
            <VisualStateManager.VisualStateGroups>
                <VisualStateGroup x:Name="FocusStates">
                    <VisualState x:Name="Unfocused" />
                    <VisualState x:Name="Focused">
                        <Storyboard>
                            <ObjectAnimationUsingKeyFrames Storyboard.TargetName="NavigatorIndicator" Storyboard.TargetProperty="(UIElement.Visibility)">
                                <DiscreteObjectKeyFrame KeyTime="0">
                                    <DiscreteObjectKeyFrame.Value>
                                        <Visibility>Visible</Visibility>
                                    </DiscreteObjectKeyFrame.Value>
                                </DiscreteObjectKeyFrame>
                            </ObjectAnimationUsingKeyFrames>
                        </Storyboard>
                    </VisualState>
                </VisualStateGroup>
                <VisualStateGroup x:Name="SelectionStates">
                    <VisualState x:Name="Unselected" />
                    <VisualState x:Name="SelectedUnfocused">
                        <Storyboard>
                            <ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetName="Background_Over" Storyboard.TargetProperty="(UIElement.Visibility)">
                                <DiscreteObjectKeyFrame KeyTime="0">
                                    <DiscreteObjectKeyFrame.Value>
                                        <Visibility>Visible</Visibility>
                                    </DiscreteObjectKeyFrame.Value>
                                </DiscreteObjectKeyFrame>
                            </ObjectAnimationUsingKeyFrames>
                            <ObjectAnimationUsingKeyFrames Storyboard.TargetName="Background_Over" Storyboard.TargetProperty="Fill">
                                <DiscreteObjectKeyFrame KeyTime="0:0:0">
                                    <DiscreteObjectKeyFrame.Value>
                                        <SolidColorBrush Color="#FF9c9c9c"/>
                                    </DiscreteObjectKeyFrame.Value>
                                </DiscreteObjectKeyFrame>
                            </ObjectAnimationUsingKeyFrames>
                            <ObjectAnimationUsingKeyFrames Storyboard.TargetName="Background_Selected" Storyboard.TargetProperty="Fill">
                                <DiscreteObjectKeyFrame KeyTime="0:0:0">
                                    <DiscreteObjectKeyFrame.Value>
                                        <SolidColorBrush Color="#FF9c9c9c"/>
                                    </DiscreteObjectKeyFrame.Value>
                                </DiscreteObjectKeyFrame>
                            </ObjectAnimationUsingKeyFrames>
                            <DoubleAnimation To="1" Duration="0" Storyboard.TargetName="Background_Over" Storyboard.TargetProperty="(UIElement.Opacity)" />
                        </Storyboard>
                    </VisualState>
                </VisualStateGroup>
                <VisualStateGroup x:Name="CommonStates">
                    <VisualState x:Name="Normal" />
                    <VisualState x:Name="MouseOver">
                        <!--Bez najeti mysi-->
                    </VisualState>
                    <VisualState x:Name="Selected">
                        <Storyboard>
                            <ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetName="Background_Selected" Storyboard.TargetProperty="(UIElement.Visibility)">
                                <DiscreteObjectKeyFrame KeyTime="0">
                                    <DiscreteObjectKeyFrame.Value>
                                        <Visibility>Visible</Visibility>
                                    </DiscreteObjectKeyFrame.Value>
                                </DiscreteObjectKeyFrame>
                            </ObjectAnimationUsingKeyFrames>
                        </Storyboard>
                    </VisualState>
                </VisualStateGroup>
                <VisualStateGroup x:Name="ValueStates">
                    <VisualState x:Name="RowValid" />
                    <VisualState x:Name="RowInvalid">
                        <Storyboard>
                            <ObjectAnimationUsingKeyFrames Storyboard.TargetName="Background_Invalid" Storyboard.TargetProperty="(UIElement.Visibility)">
                                <DiscreteObjectKeyFrame KeyTime="0">
                                    <DiscreteObjectKeyFrame.Value>
                                        <Visibility>Visible</Visibility>
                                    </DiscreteObjectKeyFrame.Value>
                                </DiscreteObjectKeyFrame>
                            </ObjectAnimationUsingKeyFrames>
                            <ObjectAnimationUsingKeyFrames Storyboard.TargetName="ErrorIndicator" Storyboard.TargetProperty="Visibility">
                                <DiscreteObjectKeyFrame KeyTime="0">
                                    <DiscreteObjectKeyFrame.Value>
                                        <Visibility>Visible</Visibility>
                                    </DiscreteObjectKeyFrame.Value>
                                </DiscreteObjectKeyFrame>
                            </ObjectAnimationUsingKeyFrames>
                        </Storyboard>
                    </VisualState>
                </VisualStateGroup>
                <VisualStateGroup x:Name="EditStates">
                    <VisualState x:Name="ReadOnlyMode" />
                    <VisualState x:Name="EditMode">
                        <Storyboard>
                            <ObjectAnimationUsingKeyFrames Storyboard.TargetName="EditIndicator" Storyboard.TargetProperty="Visibility">
                                <DiscreteObjectKeyFrame KeyTime="0">
                                    <DiscreteObjectKeyFrame.Value>
                                        <Visibility>Visible</Visibility>
                                    </DiscreteObjectKeyFrame.Value>
                                </DiscreteObjectKeyFrame>
                            </ObjectAnimationUsingKeyFrames>
                        </Storyboard>
                    </VisualState>
                </VisualStateGroup>
            </VisualStateManager.VisualStateGroups>
            <grid:SelectiveScrollingGrid x:Name="grid">
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="Auto" />
                    <ColumnDefinition Width="Auto" />
                    <ColumnDefinition Width="Auto" />
                    <ColumnDefinition Width="*" />
                </Grid.ColumnDefinitions>
                <Grid.RowDefinitions>
                    <RowDefinition Height="*" />
                    <RowDefinition Height="Auto" />
                    <RowDefinition Height="Auto" />
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>
                <Border x:Name="SelectionBackground" Grid.Column="2" Grid.ColumnSpan="2" Background="{TemplateBinding Background}" Margin="{TemplateBinding Margin}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}" Padding="{TemplateBinding Padding}" grid:SelectiveScrollingGrid.SelectiveScrollingClip="True" />
                <Rectangle x:Name="Background_Over" Fill="{telerik:Windows8Resource ResourceKey=StrongBrush}" Opacity="0.1" Grid.ColumnSpan="4" Visibility="Collapsed" grid:SelectiveScrollingGrid.SelectiveScrollingClip="True" />
                <Rectangle x:Name="Background_Selected" Fill="#FF9c9c9c" Visibility="Collapsed" Margin="0,0,0,0" Grid.ColumnSpan="4" grid:SelectiveScrollingGrid.SelectiveScrollingClip="True"/>
                <!--Ramecek pro erroru-->
                <Rectangle x:Name="Background_Invalid" Stroke="#FFe56060" Fill="White" StrokeThickness="1" Grid.ColumnSpan="4" Visibility="Collapsed" grid:SelectiveScrollingGrid.SelectiveScrollingClip="True" />
                <controls:GridViewToggleButton Grid.Column="2" x:Name="PART_HierarchyExpandButton" Width="25" grid:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Opacity="{Binding IsExpandable, RelativeSource={RelativeSource TemplatedParent}, Converter={StaticResource BooleanToOpacityConverter}}" IsHitTestVisible="{Binding IsExpandable, RelativeSource={RelativeSource TemplatedParent}}" Visibility="{Binding HasHierarchy, RelativeSource={RelativeSource TemplatedParent}, Converter={StaticResource BooleanToVisibilityConverter}}" IsChecked="{Binding IsExpanded, Mode=TwoWay, RelativeSource={RelativeSource TemplatedParent}}" IsTabStop="{TemplateBinding IsTabStop}" />
                <Border Grid.Column="2" grid:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="{Binding HasHierarchy, RelativeSource={RelativeSource TemplatedParent}, Converter={StaticResource BooleanToVisibilityConverter}}" />
                <grid:DataCellsPresenter Grid.Column="3" x:Name="PART_DataCellsPresenter" />
                <Border x:Name="PART_RowBorder" SnapsToDevicePixels="True"  ClipToBounds="False" BorderBrush="{TemplateBinding HorizontalGridLinesBrush}" BorderThickness="{Binding HorizontalGridLinesWidth, RelativeSource={RelativeSource TemplatedParent}, Converter={StaticResource GridLineWidthToThicknessConverter}, ConverterParameter=Bottom}" Grid.ColumnSpan="4" Grid.Column="1" Grid.RowSpan="4" VerticalAlignment="Bottom" grid:SelectiveScrollingGrid.SelectiveScrollingClip="True" />
                <Border Grid.Column="2" Grid.Row="2" Grid.ColumnSpan="2" grid:SelectiveScrollingGrid.SelectiveScrollingClip="True">
                    <ContentPresenter x:Name="PART_HierarchyChildPresenter" grid:SelectiveScrollingGrid.SelectiveScrollingClip="True" Visibility="{Binding IsExpanded, RelativeSource={RelativeSource TemplatedParent}, Converter={StaticResource BooleanToVisibilityConverter}}" />
                </Border>
                <grid:DetailsPresenter x:Name="PART_DetailsPresenter" Grid.Column="2" Grid.ColumnSpan="2" Grid.Row="1" DetailsProvider="{TemplateBinding DetailsProvider}" />
                <Border x:Name="PART_IndicatorPresenter" Width="25" VerticalAlignment="Stretch" Visibility="{TemplateBinding RowIndicatorVisibility}" grid:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Grid.RowSpan="3" Background="{telerik:Windows8Resource ResourceKey=MainBrush}" BorderBrush="{telerik:Windows8Resource ResourceKey=BasicBrush}" BorderThickness="0,0,1,0">
                    <Grid>
                        <Grid x:Name="NavigatorIndicator" HorizontalAlignment="Center" VerticalAlignment="Center" Width="9" Height="9" Visibility="Collapsed">
                            <Path x:Name="plus" Stretch="Fill" Width="8" Height="4" Data="M0,0 L8,2.3841858E-07 L4,4 z" RenderTransformOrigin="0.5,0.5" Fill="{telerik:Windows8Resource ResourceKey=AccentBrush}" StrokeThickness="{TemplateBinding BorderThickness}" Margin="{TemplateBinding Padding}">
                                <Path.RenderTransform>
                                    <TransformGroup>
                                        <ScaleTransform ScaleY="0" />
                                        <SkewTransform />
                                        <RotateTransform Angle="90" />
                                        <TranslateTransform X="9.5006054579016563E-08" Y="-4.6599587300022449E-08" />
                                    </TransformGroup>
                                </Path.RenderTransform>
                            </Path>
                        </Grid>
                        <Border x:Name="EditIndicator" HorizontalAlignment="Center" VerticalAlignment="Center" Width="12" Height="10" Visibility="Collapsed" Background="{telerik:Windows8Resource ResourceKey=MainBrush}" BorderBrush="{telerik:Windows8Resource ResourceKey=StrongBrush}" BorderThickness="0">
                            <Path Fill="Transparent" Stretch="Fill" Data="M3,2 L4,2 L5,2 L6,2 L6,3 L5,3 L5,4 L5,5 L5,6 L5,7 L6,7 L6,8 L5,8 L4,8 L3,8 L3,7 L4,7 L4,6 L4,5 L4,4 L4,3 L3,3 z" HorizontalAlignment="Left" Margin="0,0,0,0" Width="3" Height="6" />
                        </Border>
                        <!--Error pri spatnem vyplneni-->
                        <Grid x:Name="ErrorIndicator" HorizontalAlignment="Center" VerticalAlignment="Center" Visibility="Collapsed">
                            <Ellipse Fill="{telerik:Windows8Resource ResourceKey=MainBrush}" Width="16" Height="16" Stroke="#FFe56060" />
                            <Path Data="M1.0000001,8 C1.5522848,8 2.0000002,8.4477148 2.0000002,9 C2.0000002,9.5522842 1.5522848,10 1.0000001,10 C0.4477154,10 1.527369E-07,9.5522842 1.4901161E-07,9 C1.527369E-07,8.4477148 0.4477154,8 1.0000001,8 z M0,0 L2,0 L2,7 L0,7 z" Fill="#FFe56060" Width="2" Height="10" Stretch="Fill" />
                            <ToolTipService.ToolTip>
                                <ToolTip x:Name="validationTooltip" Placement="Bottom" Content="{TemplateBinding Errors}"></ToolTip>
                            </ToolTipService.ToolTip>
                        </Grid>
                        <Border x:Name="PART_RowResizer" Background="Transparent" Height="4" VerticalAlignment="Bottom" Cursor="SizeNS" />
                    </Grid>
                </Border>
                <grid:IndentPresenter x:Name="PART_IndentPresenter" IndentLevel="{TemplateBinding IndentLevel}" Grid.Column="1" Grid.RowSpan="4" grid:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" />

            </grid:SelectiveScrollingGrid>
        </Border>
    </ControlTemplate>
    <Style x:Key="GridViewRowStyle" TargetType="grid:GridViewRow">
        <Setter Property="IsTabStop" Value="False" />
        <Setter Property="Template" Value="{DynamicResource GridViewRowTemplate}" />
        <Setter Property="Background" Value="#FF8a8a8a" />
        <Setter Property="FontWeight" Value="Normal" />
        <Setter Property="AllowDrop" Value="True" />
        <Setter Property="VerticalContentAlignment" Value="Stretch" />
        <Setter Property="HorizontalContentAlignment" Value="Stretch" />
        <Setter Property="Padding" Value="0" />
        <Setter Property="BorderThickness" Value="0" />
        <Setter Property="SnapsToDevicePixels" Value="False" />
    </Style>
    <Style TargetType="grid:GridViewRow" BasedOn="{StaticResource GridViewRowStyle}" />

1 Answer, 1 is accepted

Sort by
0
Vanya Pavlova
Telerik team
answered on 25 Nov 2013, 03:32 PM
Hi Jiri,


We have tried to replicate the behavior you described, however to no avail. Would it be possible to check the attached project and let us know how it differs from yours?



Regards,
Vanya Pavlova
Telerik
