Bind to column object, not column name.

2 posts, 0 answers
  1. Scott
    Scott avatar
    6 posts
    Member since:
    Jan 2014

    Posted 18 Jul 2014 Link to this post

    What is the correct way use a "DataColumn" object to tell the RadGridView which column to bind to? I can get it to bind using the "ColumnName" property on the column, but I would rather bind on the DataColumn object itself.

    Here is a test program to demonstrate the problem

    <Window x:Class="RadGridViewTest.MainWindow"
                    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                    xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
                    xmlns:radGridViewTest="clr-namespace:RadGridViewTest"
                    Title="MainWindow" Height="350" Width="525">
        <Window.Resources>
            <radGridViewTest:ContextData x:Key="ContextData"/>
        </Window.Resources>

        <Grid DataContext="{StaticResource ContextData}">
            <telerik:RadGridView ItemsSource="{Binding Path=ExampleTable}"
                                 AutoGenerateColumns="True"
                                 ShowGroupPanel="False">
                <telerik:RadGridView.Columns>
                    <telerik:GridViewDataColumn DataMemberBinding="{Binding ExampleColumn}" Header="Via property"/>
                    <telerik:GridViewDataColumn DataMemberBinding="{Binding Example}" Header="Via Column Name"/>
                </telerik:RadGridView.Columns>
            </telerik:RadGridView>
        </Grid>
    </Window>

    using System.Data;
    using System.Windows;

    namespace RadGridViewTest
    {
        /// <summary>
        /// Interaction logic for MainWindow.xaml
        /// </summary>
        public partial class MainWindow : Window
        {
            public MainWindow()
            {
                InitializeComponent();
            }
        }

        public class ContextData
        {
            public ContextData()
            {
                ExampleTable = new StrongNamedDataTable();

                var row = ExampleTable.NewRow();
                row[ExampleTable.ExampleColumn] = "Test Data";
                ExampleTable.Rows.Add(row);
            }

            public StrongNamedDataTable ExampleTable { get; set; }
        }

        public class StrongNamedDataTable : DataTable
        {
            public StrongNamedDataTable()
            {
                ExampleColumn = this.Columns.Add("Example");
            }

            public DataColumn ExampleColumn { get; private set; }
        }
    }

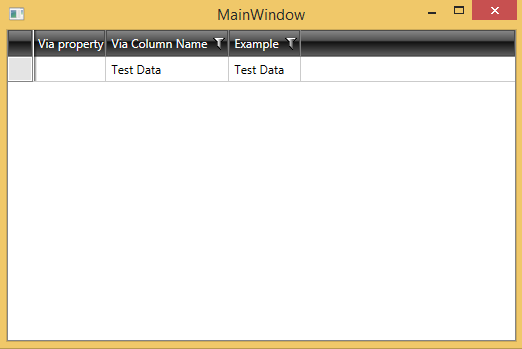

    The column that I set via the property did not work, but the one referencing the column name and the auto generated column both worked. What is the correct way to reference a column using the property?
  2. Yoan
    Admin
    Yoan avatar
    1213 posts

    Posted 23 Jul 2014 Link to this post

    Hi Scott,

    Generally, if you want to bind GridViewDataColumn to a specific column of your DataTable, you need to use the name of DataTable's column. Please note that you will get the same behaviour with MS DataGrid.

    Regards,
    Yoan
