Barcode lenght is too large to fit!

2 Answers 493 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
Jordi
Top achievements
Rank 2
Jordi asked on 04 Aug 2013, 02:27 PM
Hello,

I have to print a barcode in a little label! 37mm with... value lenght is 14... Appears error "Barcode lenght 14 is too large to fit" in report designer!

Is possible to adjust some size properties??

I know that is possible print this barcode in this label, because I do it this programing directly in ZPL (Programing Language)

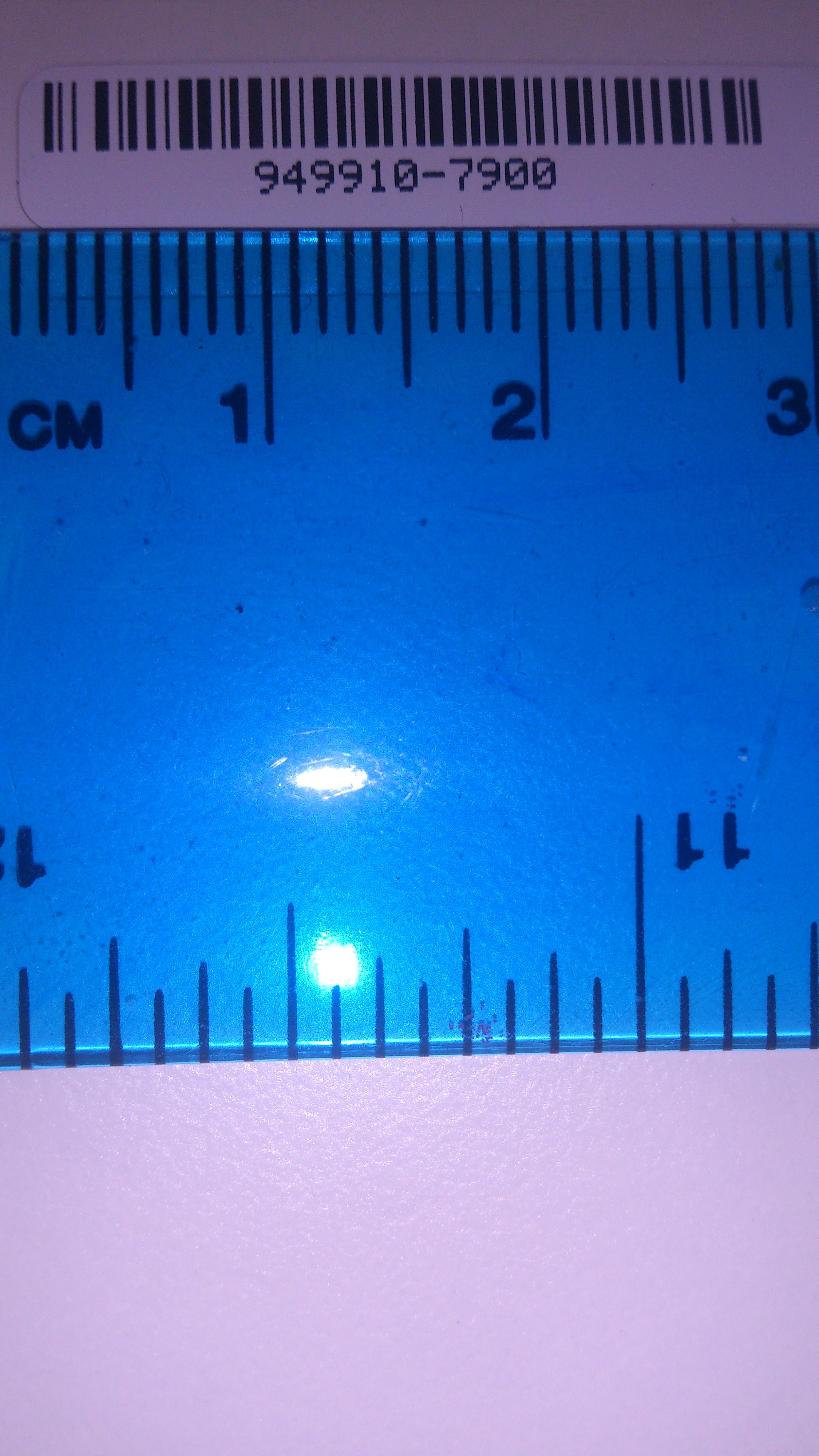

(attached image)

Any idea or solutions?

Thanks in advanced

Jordi

2 Answers, 1 is accepted

Sort by
0
Peter
Telerik team
answered on 06 Aug 2013, 11:20 AM
Hello Jordi,

If you set the Stretch property to True, the barcode will adjust according to the width of the item. If it is very small, you will have to adjust the font size of the text (or remove it completely) so it doesn't limit the size of the barcode. Additionally if you want the bars dimensions to be absolute, you can set the Module Property to a smaller value. Both approaches will allow you to create a smaller barcode, it depends on your requirements and other factors which one you will use.

Regards,
Peter
Telerik

Have you tried the new visualization options in Telerik Reporting Q2 2013? You can get them from your account.

0
Jordi
Top achievements
Rank 2
answered on 06 Aug 2013, 11:58 AM

Hi Peter,

Thanks Peter! I solved this when I set the Stretch = True.
(Module property = 1pt)

best regards,
Jordi
