Hi,
I have to meet some requirements for a client:
1) Add different color bands in the chart to separate different levels.
2) Add the possibility to have multiline label on the axis.

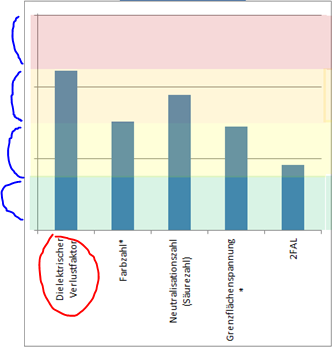

See the image in attachement.
I would like to know if it is possible to achieve that with telerik reporting graph.
1 Answer, 1 is accepted
0
Hi Francis,
Yes, it is possible to create a graph with such a layout, as we demonstrated in the attached sample report. Here are some key guidelines how to do that:
1) The color bands are represented by 4 bar series. Assuming your graph has fixed minimum and maximum of the vertical scale (I guess it'll show values in 0-100 range) , it's easy to set each bar's Y and Y0. In our example they are hard-coded, but if your scenario is different, these values can be calculated with an expression or user function.
2) The axis labels are not word-wrapped by default, but if you set the axis' Size property, the labels will try to fit in the available space, wrapping their contents. Note that the desired size depends on the used font settings and you have to make sure that the font is available on the machine that renders the report.
Please take a look at the attached .trdx that demonstrates how to reproduce the graph on the applied screenshot. We hope you will find it useful.
If you need further assistance, do not hesitate to ask.
Regards,
Ivan Hristov
Progress Telerik
Yes, it is possible to create a graph with such a layout, as we demonstrated in the attached sample report. Here are some key guidelines how to do that:
1) The color bands are represented by 4 bar series. Assuming your graph has fixed minimum and maximum of the vertical scale (I guess it'll show values in 0-100 range) , it's easy to set each bar's Y and Y0. In our example they are hard-coded, but if your scenario is different, these values can be calculated with an expression or user function.
2) The axis labels are not word-wrapped by default, but if you set the axis' Size property, the labels will try to fit in the available space, wrapping their contents. Note that the desired size depends on the used font settings and you have to make sure that the font is available on the machine that renders the report.
Please take a look at the attached .trdx that demonstrates how to reproduce the graph on the applied screenshot. We hope you will find it useful.
If you need further assistance, do not hesitate to ask.
Regards,
Ivan Hristov
Progress Telerik
