Koen L asked on 23 Oct 2013, 01:11 PM

In some reports we use the background image.
Sinds the update from Q2 2012 to Q3 2013 SP1 we needed to change the way to set a backgound image.

From
report.Style.BackgroundImage.ImageData = imageData
to
report.PageSettings.BackgroundImage.ImageData = imageData

Sinds this change the backgroundimage is not fully visible anymore. The data from a detail section / subreport is now a overlayer above the backgroundimage.

How can i prevent this?

7 Answers, 1 is accepted

Sort by
0
KS
Top achievements
Rank 1
answered on 25 Oct 2013, 06:13 PM
Hi,

Check this: http://www.telerik.com/community/forums/reporting/telerik-reporting/report-background-image.aspx#2592796

Use just the detail section or split the image into "sections" - a part for the page header, another for the main part and a third one for the page footer.

-KS
0
Koen L
Top achievements
Rank 1
answered on 28 Oct 2013, 06:44 AM
A detail section in my report is never the same size so this is not a solution for me.
The link you send i allready found myself, thats why i mentioned the from ->> to fraze.
0
KS
Top achievements
Rank 1
answered on 28 Oct 2013, 02:46 PM
You can still set the report.Style.BackgroundImage.ImageData = imageData and use just the detail, or set the report.Style.BackgroundImage.ImageData = imageData and the page sections Style.BackgroundImage.ImageData.
Or... remove the report background and use just the PageSettings.Style.BackgroundImage.ImageData and show the report in print preview.

Perhaps some screenshots will clear the situation?

-KS

Nay
Top achievements
Rank 1
commented on 25 Apr 2022, 12:18 PM

Hi KS !

How to get  imageData   in Expression for  PageSetting.BackgroundImage.ImageData  in Report Designer ?

-Nay San

Lance | Senior Manager Technical Support
Telerik team
commented on 26 Apr 2022, 05:47 PM

Hi Nay,

Someone from the Telerik Reporting team will review the other forum post you've opened for this topic in the next couple days. The answer Kahka posted was nearly 10 years ago, so I'm not sure how (if any) reply you would get from them.

If you want a faster answer (<24 hours), open a Technical Support Ticket here (note: ask your manager/team lead to assign whomever has the Telerik Reporting license to your account so that you can use Support. It take just a few seconds using the Manage Licensed Users portal).

0
Koen L
Top achievements
Rank 1
answered on 28 Oct 2013, 03:08 PM

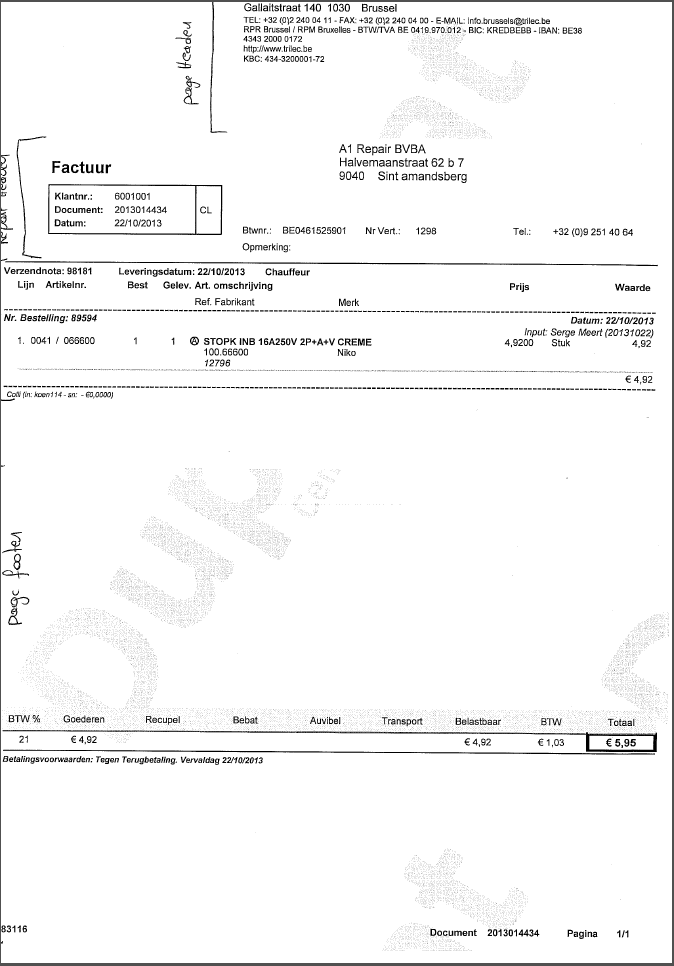

Between the page header en page footer is my detail section.
How to make my backgroundimage visible in the page header and detail?
0
Stef
Telerik team
answered on 31 Oct 2013, 03:25 PM
Hi Koen,

The way the Report.Styel.BackgroundImage and the Report.PageSettings.BackgroundImage apply is a known issue logged into our system for improvement. The task is considered with high priority. As it is related to core functionality which cannot be changed at once, we cannot provide you with an ETA of the resolution.

Our suggestions is to use the Report.PageSettings.BackgroundImage and display the report in PrintPreview mode or use a Watermark which is also visible in PrintPreview mode.

If you need further help, please open a support ticket and attach your report definition and the used background image, with details about the purpose of the background image in your report.

Regards,
Stef
Telerik

Have you tried the new visualization options in Telerik Reporting Q2 2013? You can get them from your account.

Nay
Top achievements
Rank 1
commented on 25 Apr 2022, 12:23 PM

Hi Stef

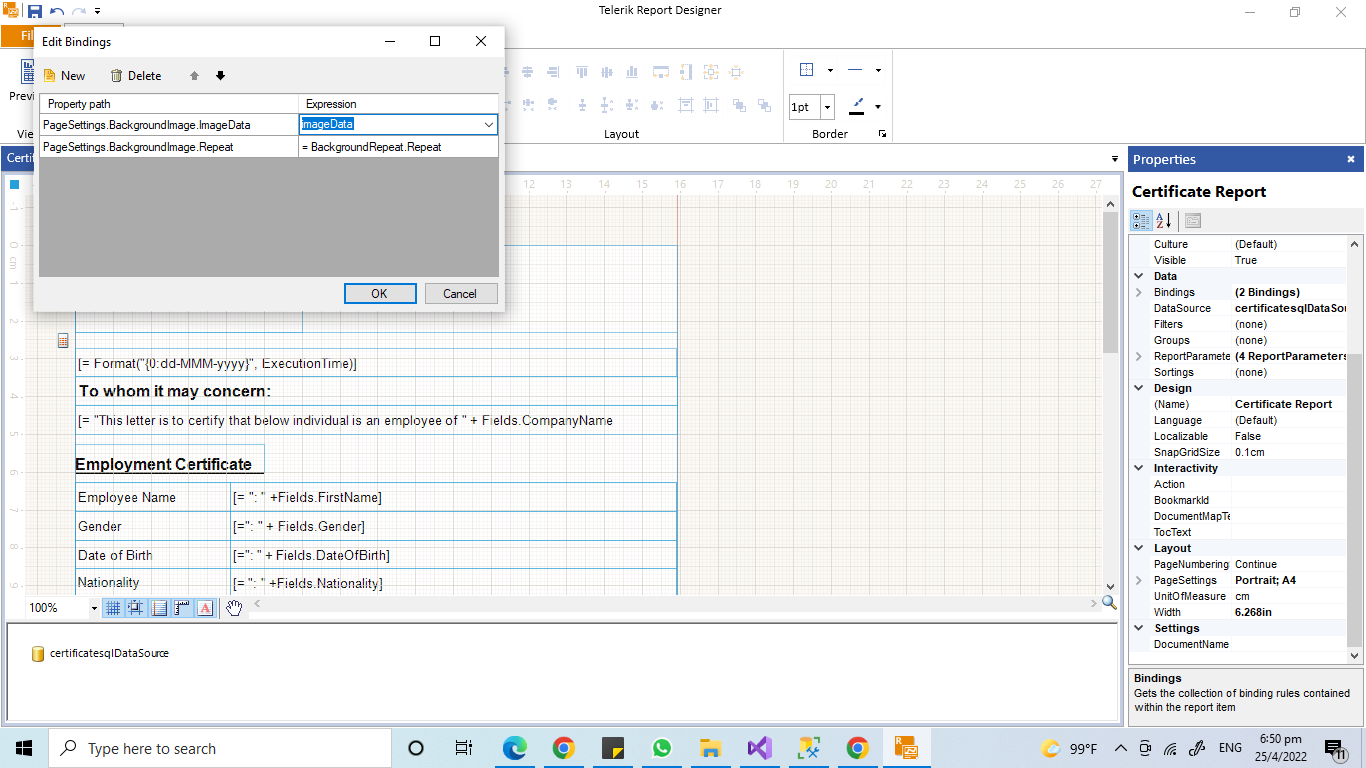

How to get dynamic imageData in Bindings Expression . I attached the image what i want .



Please Help

Thanks

Nay San

0
Koen L
Top achievements
Rank 1
answered on 22 Nov 2013, 01:43 PM
Hi,

I'm wondering if there is any progress on this issue?

Kind regards
0
Peter
Telerik team
answered on 27 Nov 2013, 01:05 PM
Hi Koen,

This issue is with highest priority however we will need more time to consider the most appropriate solution and test it thoroughly.

Regards,
Peter
Telerik
