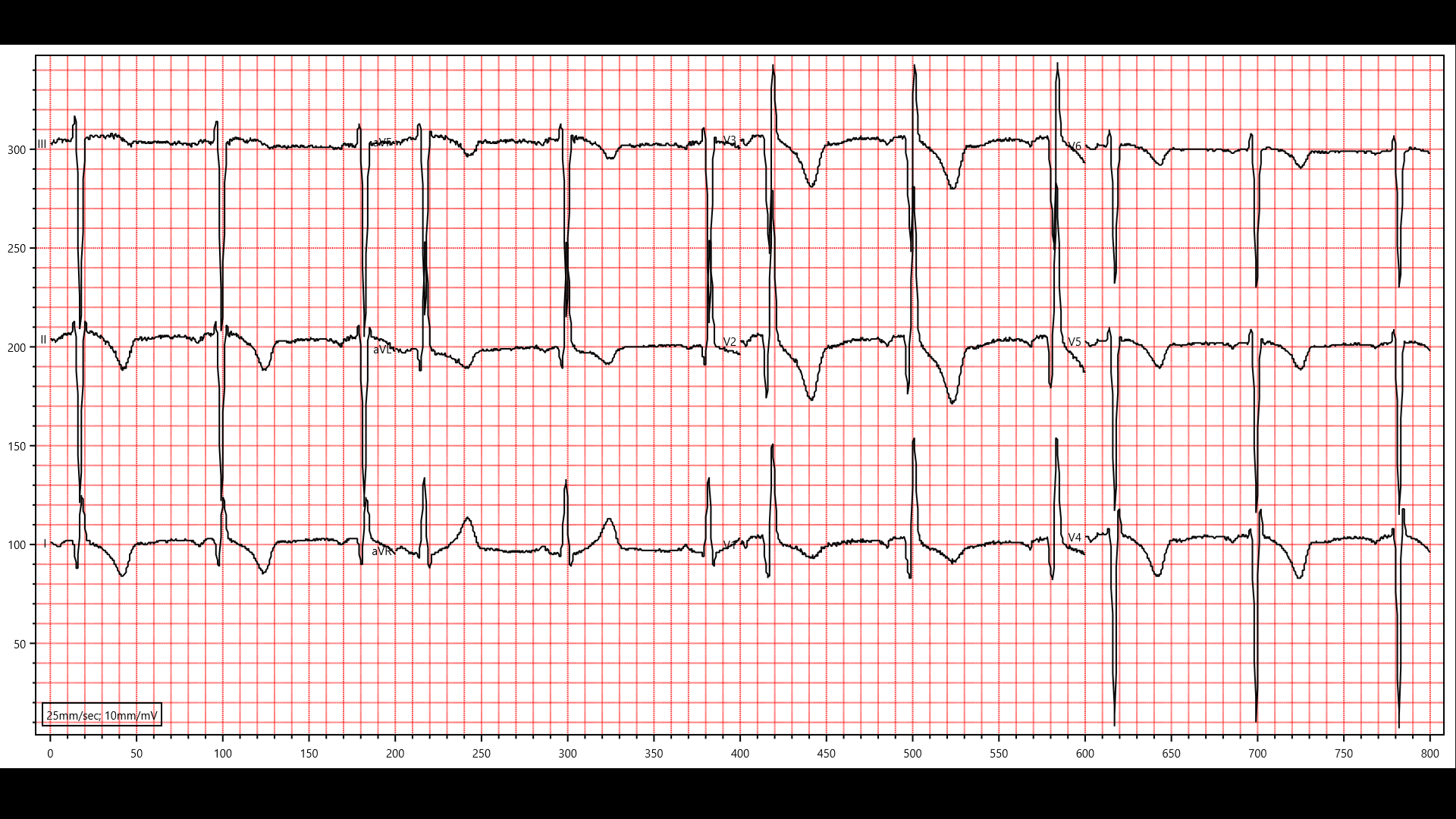

I have a LineSeries graph that displays multiple line series. I want to display a series name next to each LineSeries at the beginning of the series. If I understand correctly Telerik currently doesn't have a way to show annotations on the graph. Am I right? So is there any other way to display a text next to the LineSeries itself. I don't want to use legenf. To explain to you what we are looking for I have attached a Sample.pdf. In this screenshot you can see that at the start of each series there is a text like for eg: "I", "II", "III", "aVR", "aVL", "aVF", "V1","V2", "V3" etc. Is there any way to do this? I read somewhere that I could use DataPointLabelConditionalFormatting for this purpose but I don't know how to use it. Anyone have any ideas?
8 Answers, 1 is accepted
0
Mandar
Top achievements
Rank 1
Rank 1
answered on 14 Mar 2014, 07:05 PM
Can someone help please? I need this urgently..any help is much appreciated
0
Hi Mandar,
Yes, you should use DataPointLabelConditionalFormatting if you want to control the visibility of your data point labels based on some conditions. For example, if all of your series start from the same position on your X axis, your Conditional Formatting Rule Filter would look like this:
If your scenario requires more advanced approach, you can write an User Function to determine if a label should be visible or not and display it just once per series.
Hope it helps.
Regards,
Ivan Hristov
Telerik
Yes, you should use DataPointLabelConditionalFormatting if you want to control the visibility of your data point labels based on some conditions. For example, if all of your series start from the same position on your X axis, your Conditional Formatting Rule Filter would look like this:
=Fields.XPosition = Exec("yourGraphName", Min(Fields.XPosition))If your scenario requires more advanced approach, you can write an User Function to determine if a label should be visible or not and display it just once per series.
Hope it helps.
Regards,
Ivan Hristov
Telerik
