Document Map

[Gunasekar]

I need programetically code to create new  document map in my report.

[Steve]

Hello Gunasekar,

Check the Document Map help section that elaborates on your inquiry.

Kind regards,
Steve
the Telerik team

[Gunasekar]

Hi,
I have created document map successfully by following the below link.
In my tree view i have created one parent node and four child node.
i am not able to create another parent node and if i create also it becomes child node.

[Steve]

Hi Gunasekar,

As noted in the article we referenced previously, all report items (except the Detail section and the Report itself) produce leaf nodes in the document map tree. For example if you have a Panel item with TextBox item inside, and set the DocumentMapText property of both, the resulting nodes will be added as leaf siblings in the document map.

Kind regards,
Steve
the Telerik team

[Gunasekar]

Hi,
In my tree view i have created one parent node and four child node.
i am not able to create another parent node and if i create also it becomes child node.

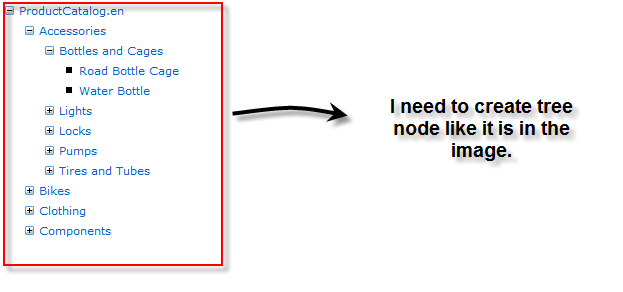

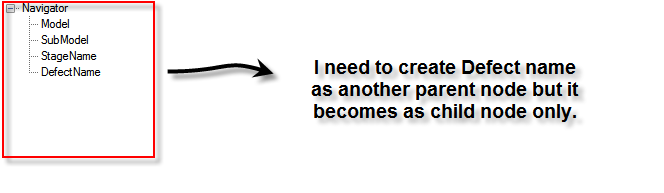

my desired output is like in the attachment 1 (treenode1) but my actual output is like attachment 2 (treenode2).
Give me some solution so that i can add parent node as well as child node.

[Steve]

Hi Gunasekar,

Please read the Document Map help article carefully as it contains the answers to all of your questions so far. The document map hierarchy of the ProductCatalog demo report (which you've taken as screenshot) is created by setting the DocumentMapText property of the report groups. Here is a quote from the documentation about this:

To form hierarchical structure of the document map, you may set the DocumentMapText property of the report groups, the CrossTab/Table groups, the Detail section and the Report (useful for SubReports).

Greetings,
Steve
the Telerik team

[Priti]

hi gunasekar,

can you please post the code how you created the document map please?

[Gunasekar]

Hi,

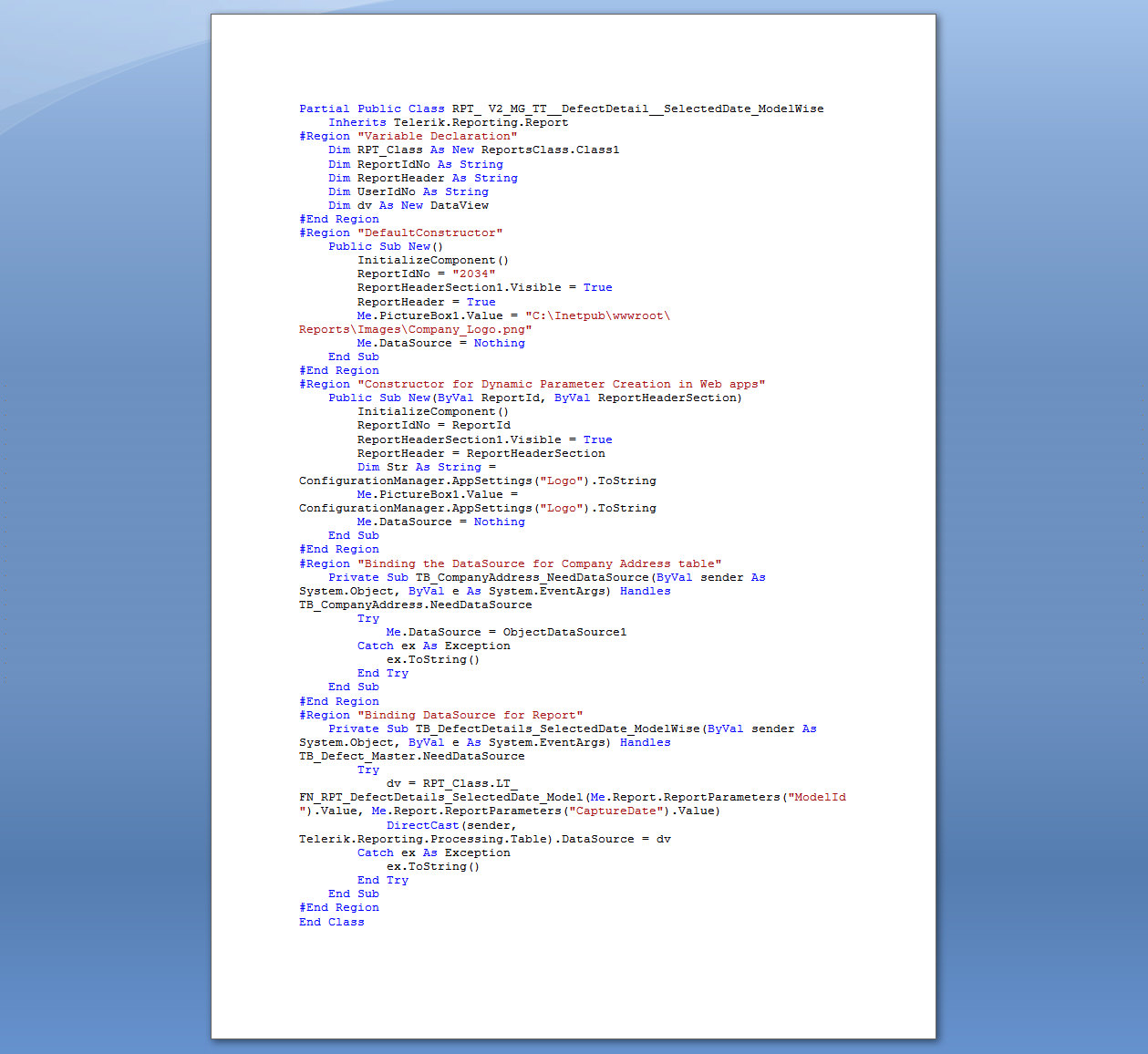

I have attached my code please check it out and let me know where i have to change it...
