24 h Format for Drag Over Visual

[Marko]

When dragging over a timeslot in RadScheduleView. The Drag over visual showing the start and end times are always shown in 12h Format. Even though my PC locale is set to 24h format.

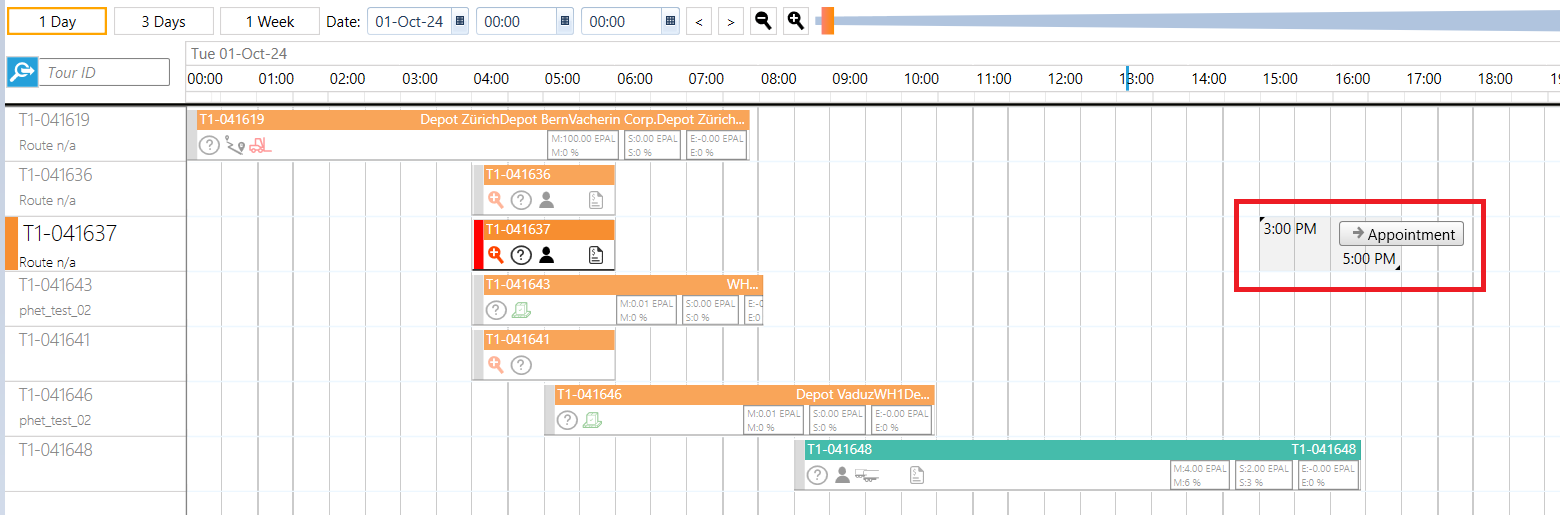

When dragging over the 15:00 slot, It shows 3PM and 5PM instead of 15:00 and 17:00. The timeruler correctly shows the same format as my PC locale but the drag over visual seems to always be 12h.

[Stenly]

Hello Marko,

To achieve this requirement, extract the default ControlTemplate from the Style with x:Key="DragDropHighlightStyle" for the HighlightItem element. Then, you can customize the StringFormat property's value of the Binding instance for the Text property of the TextBlock elements with x:Name="StartTextBox" and x:Name="EndTextBox". Then, create a new Style that targets the HighlightItem element and set the modified ControlTemplate to its Template property. Finally, set this newly created Style to the DragDropHighlightStyle property of RadScheduleView.

The following code snippets show what I have in mind:

<Application.Resources>
        <Style x:Key="CustomDragDropHighlightStyle" TargetType="telerik:HighlightItem">
            <Setter Property="Background" Value="{telerik:Windows8Resource ResourceKey=StrongBrush}"/>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate>
                        <Grid>
                            <Border Background="{TemplateBinding Background}" Opacity="0.1"/>
                            <Path Data="M0,0 L2,0 L0,2 z"
                                  Height="4"
                                  Width="4"
                                  Margin="1"
                                  Stretch="Fill"
                                  HorizontalAlignment="Left"
                                  VerticalAlignment="Top"
                                  Fill="{telerik:Windows8Resource ResourceKey=MarkerBrush}"/>
                            <TextBlock x:Name="StartTextBox"
                                       Margin="4 2"
                                       HorizontalAlignment="Left"
                                       VerticalAlignment="Top"
                                       Text="{Binding ActualStart,StringFormat={}{0:HH:00}}"
                                       Foreground="{telerik:Windows8Resource ResourceKey=MarkerBrush}"/>
                            <Path Data="M2,0 L2,2 L0,2 z"
                                  Height="4"
                                  Width="4"
                                  Stretch="Fill"
                                  Margin="1"
                                  HorizontalAlignment="Right"
                                  VerticalAlignment="Bottom"
                                  Fill="{telerik:Windows8Resource ResourceKey=MarkerBrush}"/>
                            <TextBlock x:Name="EndTextBox"
                                       Margin="4 2"
                                       HorizontalAlignment="Right"
                                       VerticalAlignment="Bottom"
                                       Text="{Binding ActualEnd,StringFormat={}{0:HH:00}}"
                                       Foreground="{telerik:Windows8Resource ResourceKey=MarkerBrush}"/>
                        </Grid>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>
</Application.Resources>

<telerik:RadScheduleView DragDropHighlightStyle="{StaticResource CustomDragDropHighlightStyle}" DataContext="{StaticResource MyViewModel}" AppointmentsSource="{Binding Appointments}">
    <telerik:RadScheduleView.ViewDefinitions>
        <telerik:DayViewDefinition />
    </telerik:RadScheduleView.ViewDefinitions>
</telerik:RadScheduleView>

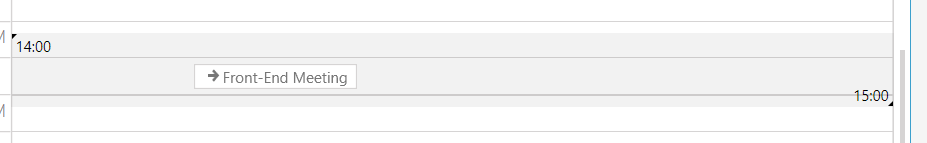

The following image showcases the produced result:

With this being said, could you give this suggestion a try and let me know how it goes?

Regards,
Stenly
Progress Telerik

[Marko]

Hi Stenly, I tried your suggestion and it worked great. Thank you
