Inserting Images using Mail Merge

Updated on Jun 5, 2026

Environment

Version	Product	Author
2024.1.124	RadWordsProcessing	Desislava Yordanova

Description

To insert images into a merge field using Mail Merge in RadWordsProcessing, follow these steps:

1. Use specific text as a placeholder for the image in your DOCX template.
2. Use the Find and Replace functionality to insert the image.

Solution

The following code snippet demonstrates how to replace the placeholder text with an image using RadWordsProcessing:

csharp

static void Main(string[] args)
{
    string placeHolder = "image_field";
    RadFlowDocument document = new RadFlowDocument();
    RadFlowDocumentEditor editor = new RadFlowDocumentEditor(document);
    editor.InsertField("MERGEFIELD Name", "");
    editor.InsertParagraph();
    editor.InsertField("MERGEFIELD Photo", "");

    List<MailMergeRecord> mailMergeDataSource = new List<MailMergeRecord>() { new MailMergeRecord() { Name = "My Name", Photo = placeHolder } };
    RadFlowDocument mailMergeResult = document.MailMerge(mailMergeDataSource);

    editor = new RadFlowDocumentEditor(mailMergeResult);

    // Replace
    ImageInline imageInline = new ImageInline(mailMergeResult);
    byte[] data = File.ReadAllBytes(@"..\..\ProgressNinjas.png");
    imageInline.Image.ImageSource = new ImageSource(data, "png");
    imageInline.Image.Size = new System.Windows.Size(100, 100);

    editor.ReplaceText(placeHolder, imageInline, true, true);
    DocxFormatProvider provider = new DocxFormatProvider();

    string originalFilePath = @"..\..\\original.docx";
    string mergedFilePath = @"..\..\merged.docx";
    File.Delete(originalFilePath);
    File.Delete(mergedFilePath);
    using (Stream output = File.OpenWrite(originalFilePath))
    {
        provider.Export(document, output);
    }
    using (Stream output = File.OpenWrite(mergedFilePath))
    {
        provider.Export(mailMergeResult, output);
    }
    Process.Start(mergedFilePath);
}

public class MailMergeRecord
{
    public MailMergeRecord()
    { }
    public string Name { get; set; }
    public string Photo { get; set; }

}

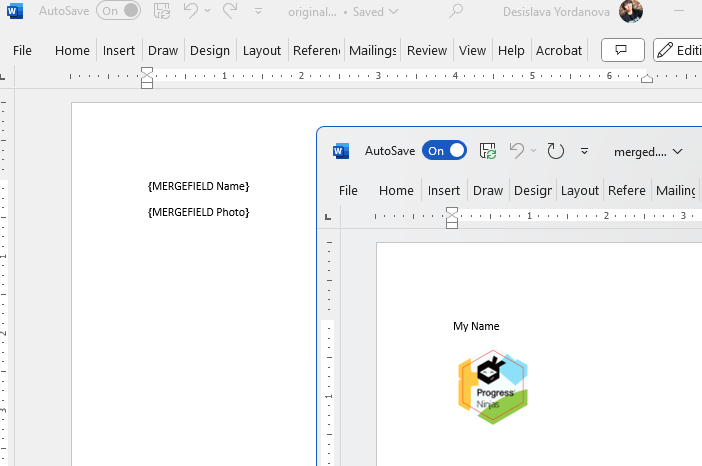

The following image shows the achieved result:
