Resize Columns
The Grid features two different column resizing mechanisms:
The example at the end of this page shows both options in action.
Resize by Dragging
The Grid allows users to resize columns by dragging the borders between header cells.
To enable column resizing, set the Resizable
parameter of the grid to true
.
To prevent the user from resizing a certain column, set its own parameter Resizable="false"
. The user will still be able to resize other columns around it.
Here a few notes on the resizing behavior:
- If the column
Width
is less thanMinResizableWidth
and the user tries to resize the column, it will snap to its minimum width. - Similarly, if the column
Width
is greater thanMaxResizableWidth
, the column will snap to its maximum width. - In multi-column header scenarios, you may set
MinResizableWidth
orMaxResizableWidth
to child columns only. Setting these attributes to parent columns will have no effect.
Autofit Columns
When column resizing is enabled, a double click on the resize handle between two header cells automatically adjusts the column width to the content of the header, data and footers. Autofitting also removes text wrapping in the column cells.
Similar to regular column resizing, autofitting specific columns preserves the current widths of all the other columns. Column autofitting can trigger a horizontal Grid scrollbar or leave empty space after the last column.
The Grid takes into account the MinResizableWidth
and MaxResizableWidth
for each auto-fitted column.
The component also exposes methods to programmatically resize columns to fit their contents:
AutoFitColumnAsync(string id)
—Autofits the column with the specifiedId
attribute.AutoFitColumnsAsync(IEnumerable<string> ids)
—Autofits multiple columns at once.AutoFitAllColumnsAsync()
—Autofits all applicable columns. For example, this method does not affect the hierarchy expand/collapse columns.
Programmatic autofitting works even if column resizing is disabled.
Autofitting a large number of columns with a large
PageSize
can be a resource-intensive operation. For better client-side performance, set fixed optimal widths to all columns with predictable content like numbers and dates, and only autofit the others.
Limitations
The known limitations of the Autofit Columns feature include:
-
Autofitting the columns is not supported with Virtual Columns.
-
Autofitting the columns on initial load of the Grid is not supported.
Trying to autofit the columns on initial load will throw a
NullReferenceException
. Check the AutoFit all Grid columns on initial load knowledge-based article to see a possible solution to achieve this behavior.

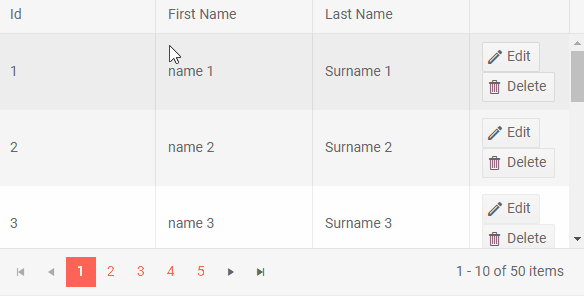

Example
How Column Resizing Works in the Telerik Grid
Grid Column Resizing and Autofitting
<p>Resize the Grid columns and click the AutoFit buttons. The command column is not resizable by the user.</p>
<TelerikButton OnClick="@AutoFitSingleColumn">AutoFit ID Column</TelerikButton>
<TelerikButton OnClick="@AutoFitMultipleColumns">AutoFit String Columns</TelerikButton>
<TelerikButton OnClick="@AutoFitAllColumns">AutoFit All Columns</TelerikButton>
<TelerikGrid @ref="@GridRef"
Data="@GridData"
Resizable="true"
Pageable="true"
Sortable="true"
Height="300px">
<GridColumns>
<GridColumn Field=@nameof(SampleData.Id) Title="ID" Id="@IdColumnId" />
<GridColumn Field=@nameof(SampleData.FirstName) Title="First Name" Id="@FirstNameColumnId" />
<GridColumn Field=@nameof(SampleData.LastName) Title="Last Name" Id="@LastNameColumnId" />
<GridCommandColumn Width="100px" Resizable="false">
<GridCommandButton Icon="@SvgIcon.Pencil">Edit</GridCommandButton>
<GridCommandButton Icon="@SvgIcon.Trash">Delete</GridCommandButton>
</GridCommandColumn>
</GridColumns>
</TelerikGrid>
@code {
public TelerikGrid<SampleData>? GridRef { get; set; }
public List<SampleData> GridData { get; set; } = new();
// Columns IDs used in the Grid column definitions and in the AutoFit methods.
private const string IdColumnId = "id-column";
private const string FirstNameColumnId = "first-name-column";
private const string LastNameColumnId = "last-name-column";
private async Task AutoFitSingleColumn()
{
await GridRef!.AutoFitColumnAsync(IdColumnId);
}
private async Task AutoFitMultipleColumns()
{
var columnIds = new List<string>() { FirstNameColumnId, LastNameColumnId };
await GridRef!.AutoFitColumnsAsync(columnIds);
}
private async Task AutoFitAllColumns()
{
await GridRef!.AutoFitAllColumnsAsync();
}
protected override void OnInitialized()
{
GridData = GetData();
}
private List<SampleData> GetData()
{
return Enumerable.Range(1, 50).Select(x => new SampleData
{
Id = x,
FirstName = $"Name {x}",
LastName = $"Surname {x}"
}).ToList();
}
public class SampleData
{
public int Id { get; set; }
public string FirstName { get; set; } = string.Empty;
public string LastName { get; set; } = string.Empty;
}
}
