Polar Spline Area Series

Updated on Mar 26, 2026

When using PolarSplineAreaSeries the data points are connected with smooth line segments that enclose an area that may be optionally stroked and/or filled.

Properties

PolarSplineAreaSeries class inherits from the PolarAreaSeries class - See the inherited properties.

Example

Examples 1 an 2 show how to create a RadCartesianChart with a PolarSplineAreaSeries.

Example 1: Defining the model and populating with data

C#

public sealed partial class MainPage : Page
{
	public MainPage()
	{
		this.InitializeComponent();

		double a = 0.5;
		var b = (Math.PI / 180);
		List<Data> data = new List<Data>();
		for (int i = 1; i < 5 * 360; i += 10)
		{
			data.Add(new Data() { Angle = i, Value = (a * Math.Cos(20 * i * b)) });
		}

		this.polarChart.DataContext = data;
	}
}


public class Data
{
	public double Value { get; set; }

	public double Angle { get; set; }
}

Example 2: Defining the model RadPolarChart and PolarSplineAreaSeries

XAML

<Grid xmlns:telerikChart="using:Telerik.UI.Xaml.Controls.Chart">
	<telerikChart:RadPolarChart x:Name="polarChart">
		<telerikChart:RadPolarChart.PolarAxis>
			<telerikChart:PolarAxis/>
		</telerikChart:RadPolarChart.PolarAxis>
		<telerikChart:RadPolarChart.RadialAxis>
			<telerikChart:NumericalRadialAxis/>
		</telerikChart:RadPolarChart.RadialAxis>

		<telerikChart:PolarSplineAreaSeries ItemsSource="{Binding}">
			<telerikChart:PolarSplineAreaSeries.ValueBinding>
				<telerikChart:PropertyNameDataPointBinding PropertyName="Value"/>
			</telerikChart:PolarSplineAreaSeries.ValueBinding>
			<telerikChart:PolarSplineAreaSeries.AngleBinding>
				<telerikChart:PropertyNameDataPointBinding PropertyName="Angle"/>
			</telerikChart:PolarSplineAreaSeries.AngleBinding>
		</telerikChart:PolarSplineAreaSeries>
	</telerikChart:RadPolarChart>
</Grid>

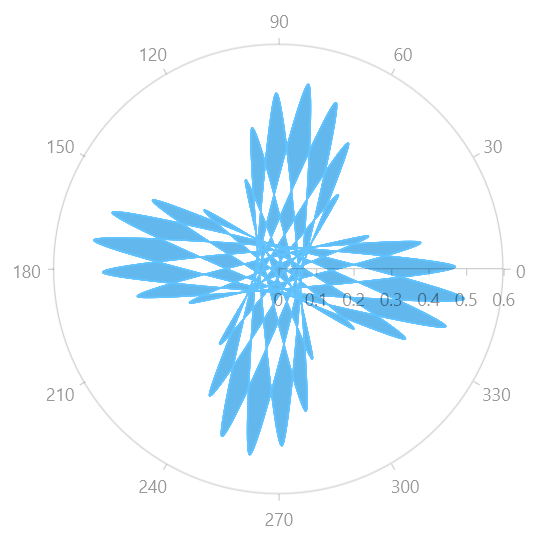

Figure 1: RadPolarChart and PolarSplineAreaSeries
