Style the Column Resizers

Environment

Product

RadGridView for WPF

Description

How to apply a style to the thumbs responsible for resizing the columns.

Solution

To style the column resizers, you need to edit the default template of the GridViewHeaderCell element and replace the default ColumnHeaderGripperStyle which is set for the PART_LeftHeaderGripper and PART_RightHeaderGripper elements.

Example 1: Override the ColumnHeaderGripperStyle

XAML

    <Application.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <!-- other merged dictionaries -->
                <!-- if you're using the standard binaries -->
                <ResourceDictionary Source="/Telerik.Windows.Controls.GridView;component/Themes/GenericOfficeBlack.xaml"/>
                <!-- if you're using the NoXaml binaries -->
                <ResourceDictionary Source="/Telerik.Windows.Themes.Office_Black;component/Themes/Telerik.Windows.Controls.GridView.xaml"/>
                <!-- replace OfficeBlack with the theme you're using -->
            </ResourceDictionary.MergedDictionaries>
            <Style x:Key="ColumnHeaderGripperStyle" TargetType="Thumb">
                <Setter Property="Width" Value="8"/>
                <Setter Property="Background" Value="Transparent"/>
                <Setter Property="BorderBrush" Value="LightGray"/>
                <Setter Property="BorderThickness" Value="1"/>
                <Setter Property="Width" Value="1"/>
                <Setter Property="HorizontalContentAlignment" Value="Stretch"/>
                <Setter Property="VerticalContentAlignment" Value="Stretch"/>
                <Setter Property="Padding" Value="0"/>
                <Setter Property="Cursor" Value="ScrollAll"/>
                <Setter Property="Template">
                    <Setter.Value>
                        <ControlTemplate TargetType="Thumb">
                            <Border
                            Padding="{TemplateBinding Padding}"
                            Background="{TemplateBinding Background}"
                            BorderBrush="{TemplateBinding BorderBrush}"
                            BorderThickness="{TemplateBinding BorderThickness}"
                            HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
                            VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>
                        </ControlTemplate>
                    </Setter.Value>
                </Setter>
            </Style>

            <ControlTemplate x:Key="GridViewHeaderCellTemplate" TargetType="grid:GridViewHeaderCell">
                <Grid x:Name="PART_OuterGrid">
                    <!-- the default control template that you've extracted -->
                </Grid>
            </ControlTemplate>

            <Style TargetType="telerik:GridViewHeaderCell" BasedOn="{StaticResource GridViewHeaderCellStyle}">
                <Setter Property="Template" Value="{StaticResource GridViewHeaderCellTemplate}"/>
            </Style>
        </ResourceDictionary>
    </Application.Resources>

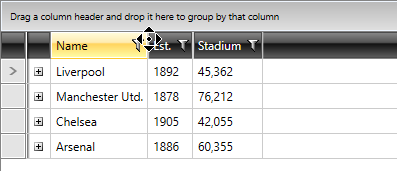

Figure 1: The modified column resizers
