Remove Space around RadPaneGroup and DocumentHost

Environment

Product Version	2020.3.1020
Product	RadDocking for WPF

Description

How to remove the padding around the pane groups of the RadDocking control.

Solution

To get rid of the extra space surrounding the panes in the pane group, which is defined inside a DocumentHost container, you would need to set the Padding property of the RadPaneGroup element, to 0.

XAML

	<telerik:RadDocking.DocumentHost>
	    <telerik:RadSplitContainer>
	        <telerik:RadPaneGroup Padding="0">
	            <telerik:RadPane>
	                <ScrollViewer/>
	            </telerik:RadPane>
	        </telerik:RadPaneGroup>
	    </telerik:RadSplitContainer>
	</telerik:RadDocking.DocumentHost>

If you need to apply this to all of the RadPaneGroup instances, create a new Style with a Setter for the Padding property

XAML

	<!-- If you're using the NoXaml binaries, you need to base the custom style on the default one for the control, like so:
	<Style TargetType="telerik:RadPaneGroup" BasedOn="{StaticResource RadPaneGroupStyle}"> -->
	<Style TargetType="telerik:RadPaneGroup">
	    <Setter Property="Padding" Value="0" />
	</Style>

For the Fluent, Green, Material, Office2016 and Office2016Touch themes, the RadPaneGroup element's padding should be updated through a style trigger.

XAML

	<!-- If you're using the NoXaml binaries, you need to base the custom style on the default one for the control, like so:
	<Style TargetType="telerik:RadPaneGroup" BasedOn="{StaticResource RadPaneGroupStyle}"> -->
	<Style TargetType="telerik:RadPaneGroup">
	    <Style.Triggers>
	        <Trigger Property="IsInDocumentHost" Value="True">
	            <Setter Property="Padding" Value="0" />
	        </Trigger>
	    </Style.Triggers>
	</Style>

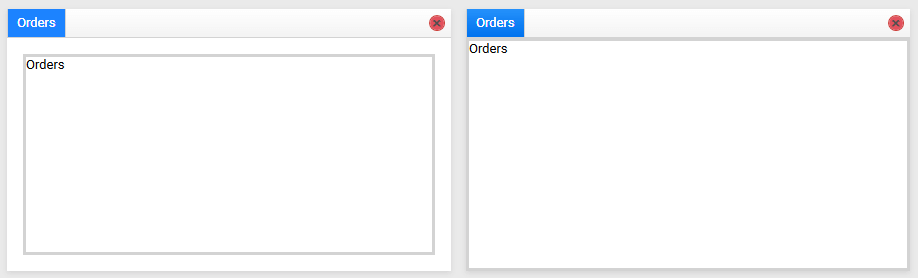

Figure 1: DocumentHost with and without the default padding in the Crystal theme
