Integration With Visual Studio Tools for Microsoft Office (VSTO) Templates

Environment

Product Version	2023.3.1114
Product	UI for WPF

Description

How to create an add-in for Microsoft Office with Telerik UI for WPF.

Solution

The following example shows how to create an Excel VSTO Add-in application and display a RadWindow and RadGridView elements. It is setup with the NoXaml version of the assemblies in mind.

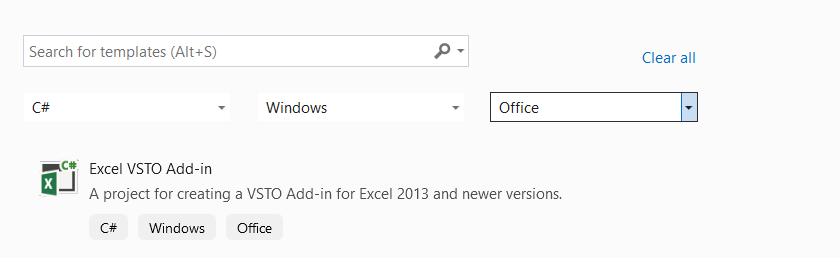

1. Open Visual Studio and choose the Excel VSTO Add-in template:



To create a VSTO project, you will need to install the Office/SharePoint Development package from the Visual Studio Installer application.

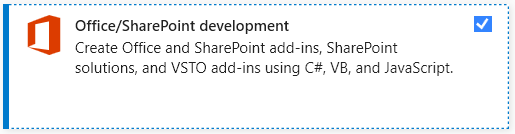

Office/SharePoint development package

2. Create a new UserControl that will hold the Telerik UI for WPF controls.

   WPF UserControl with Telerik UI for WPF components

   XAML

   	<UserControl x:Class="VSTO.WPFUserControl"
   	             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   	             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
   	             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
   	             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
   	             mc:Ignorable="d"
   	             xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
   	             d:DesignHeight="450" d:DesignWidth="800">
   	    <UserControl.Resources>
   	        <ResourceDictionary>
   	            <ResourceDictionary.MergedDictionaries>
   	                <ResourceDictionary Source="/Telerik.Windows.Themes.Office2019;component/Themes/System.Windows.xaml"/>
   	                <ResourceDictionary Source="/Telerik.Windows.Themes.Office2019;component/Themes/Telerik.Windows.Controls.xaml"/>
   	            </ResourceDictionary.MergedDictionaries>
   	        </ResourceDictionary>
   	    </UserControl.Resources>
   	    <Grid>
   	        <telerik:RadButton Content="RadButton" Click="RadButton_Click"/>
   	    </Grid>
   	</UserControl>

   The above RadButton will create a new RadWindow instance that will host a RadGridView control when its Click event occurs.

   RadButton Click event handler

   C#

   	private void RadButton_Click(object sender, RoutedEventArgs e)
   	{
   	    RadWindow radWindow = new RadWindow()
   	    {
   	        Header = "RadWindow with RadGridView",
   	        WindowStartupLocation = WindowStartupLocation.CenterScreen,
   	        Owner = this,
   	        Width = 400,
   	        Height = 300,
   	    };
   	    this.SetupResources(radWindow);
   	    RadGridView radGridView = new RadGridView() { ItemsSource = this.peopleViewModel.People };
   	    radWindow.Content = radGridView;
   	    radWindow.ShowDialog();
   	}

   The SetupResources method from the above code snippet merges the resource dictionaries required by the RadGridView and RadWindow controls. The example utilizes the Office2019 theme.

   SetupResources method's implementation

   C#

   	private void SetupResources(RadWindow radWindow)
   	{
   	    radWindow.Resources.MergedDictionaries.Clear();

   	    radWindow.Resources.MergedDictionaries.Add(new ResourceDictionary()
   	    {
   	        Source = new Uri("/Telerik.Windows.Themes.Office2019;component/Themes/System.Windows.xaml", UriKind.RelativeOrAbsolute)
   	    });
   	    radWindow.Resources.MergedDictionaries.Add(new ResourceDictionary()
   	    {
   	        Source = new Uri("/Telerik.Windows.Themes.Office2019;component/Themes/Telerik.Windows.Controls.xaml", UriKind.RelativeOrAbsolute)
   	    });
   	    radWindow.Resources.MergedDictionaries.Add(new ResourceDictionary()
   	    {
   	        Source = new Uri("/Telerik.Windows.Themes.Office2019;component/Themes/Telerik.Windows.Controls.GridView.xaml", UriKind.RelativeOrAbsolute)
   	    });
   	    radWindow.Resources.MergedDictionaries.Add(new ResourceDictionary()
   	    {
   	        Source = new Uri("/Telerik.Windows.Themes.Office2019;component/Themes/Telerik.Windows.Controls.Input.xaml", UriKind.RelativeOrAbsolute)
   	    });
   	    radWindow.Resources.MergedDictionaries.Add(new ResourceDictionary()
   	    {
   	        Source = new Uri("/Telerik.Windows.Themes.Office2019;component/Themes/Telerik.Windows.Controls.Navigation.xaml", UriKind.RelativeOrAbsolute)
   	    });
   	}

3. Create a WindowsForms UserControl that will hold the WPF UserControl in its Child property.

   WindowsForms UserControl

   C#

   	public partial class WinFormsUserControl : UserControl
   	{
   	    private ElementHost ctrlHost;

   	    public WinFormsUserControl()
   	    {
   	        InitializeComponent();

   	        ctrlHost = new ElementHost();
   	        ctrlHost.Child = new WPFUserControl();
   	        this.Controls.Add(ctrlHost);
   	    }
   	}

4. Open the add-in class generated by the Excel VSTO Add-in template and create new CustomTaskPane instance in the event handler for the Startup event. This CustomTaskPane will hold the WindowsForms UserControl.

   AddIn class implementation

   C#

   	public partial class MyAddIn
   	{
   	    private Microsoft.Office.Tools.CustomTaskPane myCustomTaskPane;
   	    private WinFormsUserControl userControl;

   	    private void OnMyAddInStartup(object sender, System.EventArgs e)
   	    {
   	        userControl = new WinFormsUserControl();

   	        myCustomTaskPane = this.CustomTaskPanes.Add(userControl, "My Task Pane");
   	        myCustomTaskPane.Visible = true;
   	    }

   	    private void OnMyAddInShutdown(object sender, System.EventArgs e)
   	    {
   	    }

   	    #region VSTO generated code

   	    /// <summary>
   	    /// Required method for Designer support - do not modify
   	    /// the contents of this method with the code editor.
   	    /// </summary>
   	    private void InternalStartup()
   	    {
   	        this.Startup += new System.EventHandler(OnMyAddInStartup);
   	        this.Shutdown += new System.EventHandler(OnMyAddInShutdown);
   	    }

   	    #endregion
   	}

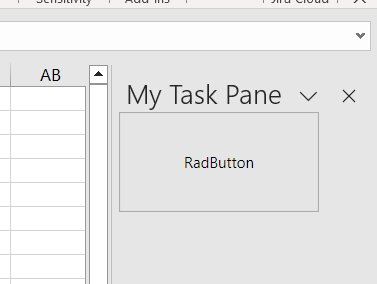

Excel VSTO Add-in with a WinForms UserControl that hosts the WPFUserControl

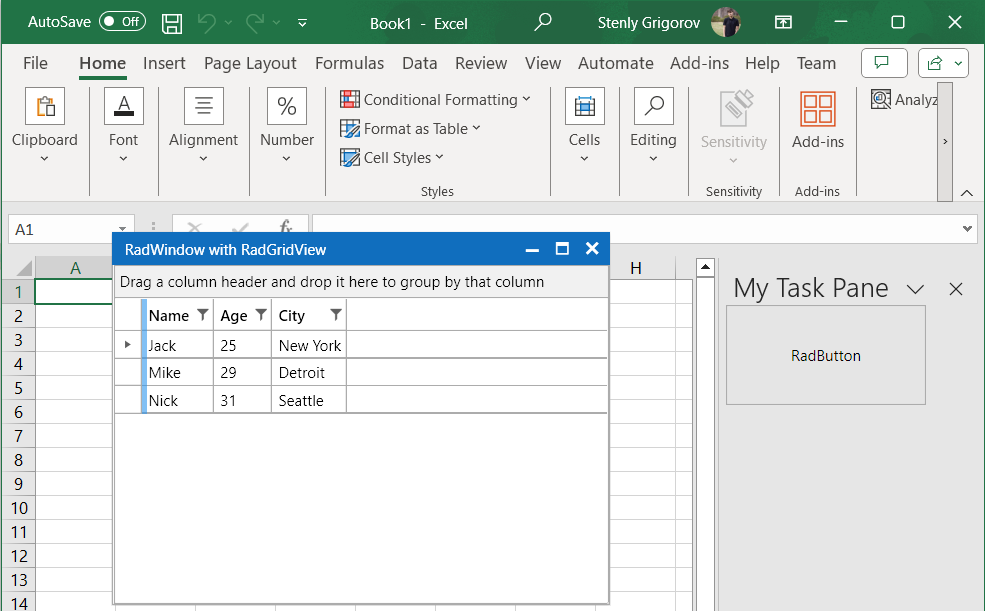

Excel VSTO Add-in with Telerik UI for WPF components
