GroupStyleSelector

This article will show you how to style RadPropertyGrid's group rows conditionally by applying GroupStyleSelector.

Assume we have a RadPropertyGrid bound to an Employee object. You can view the initial setup in the Styling Groups article. At first the appearance of the control looks like this:

What we would like to achieve is to apply one style to the Group Name row and different style to the other groups. In order to achieve the desired behavior, you need to follow these steps:

1. Create a new class that inherits the StyleSelector class. Override its SelectStyle method. Based on your conditions - you return the proper Style that will be applied to the framework element.

Example 1: The GroupStyleSelector class

C#

	public class GroupStyleSelector : StyleSelector
	{
	    public override Style SelectStyle(object item, DependencyObject container)
	    {
	        GroupDefinition groupDef = item as GroupDefinition;
	        if (groupDef.DisplayName == "Group Name")
	        {
	            return this.NameGroupStyle;
	        }
	        else if (groupDef.DisplayName == "Group Phone")
	        {
	            return this.PhoneGroupStyle;
	        }
	        else
	        {
	            return this.TitleGroupStyle;
	        }
	    }
	    public Style NameGroupStyle { get; set; }
	    public Style PhoneGroupStyle { get; set; }
	    public Style TitleGroupStyle { get; set; }
	}

VB.NET

	Public Class GroupStyleSelector
	    Inherits StyleSelector
	    Public Overrides Function SelectStyle(ByVal item As Object, ByVal container As DependencyObject) As Style
	        Dim groupDef As GroupDefinition = TryCast(item, GroupDefinition)
	        If groupDef.DisplayName = "Group Name" Then
	            Return Me.NameGroupStyle
	        ElseIf groupDef.DisplayName = "Group Phone" Then
	            Return Me.PhoneGroupStyle
	        Else
	            Return Me.TitleGroupStyle
	        End If
	    End Function
	    Public Property NameGroupStyle() As Style
	    Public Property PhoneGroupStyle() As Style
	    Public Property TitleGroupStyle() As Style
	End Class

In this specific scenario we have three different styles that could be applied:

• NameGroupStyle

• PhoneGroupStyle

• TitleGroupStyle

Depending on the underlying data you can select which style to apply.

2. In the XAML file define the style selector as a resource and set the properties for the different styles:

Example 2: Defining the different style for the GroupStyleSelector

XAML

	<my:GroupStyleSelector x:Key="groupStyleSelector">
	    <my:GroupStyleSelector.NameGroupStyle>
	        <Style TargetType="telerik:RadToggleButton">
	            <Setter Property="Foreground" Value="Red"/>
	        </Style>
	    </my:GroupStyleSelector.NameGroupStyle>
	    <my:GroupStyleSelector.PhoneGroupStyle>
	        <Style TargetType="telerik:RadToggleButton">
	            <Setter Property="Foreground" Value="Orange"/>
	        </Style>
	    </my:GroupStyleSelector.PhoneGroupStyle>
	    <my:GroupStyleSelector.TitleGroupStyle>
	        <Style TargetType="telerik:RadToggleButton">
	            <Setter Property="Foreground" Value="Green"/>
	        </Style>
	    </my:GroupStyleSelector.TitleGroupStyle>
	</my:GroupStyleSelector>

The "my:" prefix before GroupStyleSelector specifies the mapping for the namespace of the project: xmlns:my="

If you are using our Implicit Themes, you should base the style on the one defined for the corresponding theme:

Example 3: Basing the style on the default for the control

XAML

	<Style TargetType="telerik:RadToggleButton" BasedOn="{StaticResource RadToggleButtonStyle}">
	    <Setter Property="Foreground" Value="Green"/>
	</Style>

3. Finally, set the GroupStyleSelector property of the data column which represents the GroupStyleSelector field:

Example 4: Setting RadPropertyGrid's GroupStyleSelector property

XAML

	<telerik:RadPropertyGrid x:Name="PropertyGrid"
	                     RenderMode="Flat"
	                     IsGrouped="True"
	                     GroupStyleSelector="{StaticResource groupStyleSelector}"
	                     AutoGeneratePropertyDefinitions="False">
	    <telerik:RadPropertyGrid.PropertyDefinitions>
	        <telerik:PropertyDefinition Binding="{Binding FirstName}" GroupName="Group Name" DisplayName="First Name" />
	        <telerik:PropertyDefinition Binding="{Binding LastName}" GroupName="Group Name" DisplayName="Last Name"/>
	        <telerik:PropertyDefinition Binding="{Binding Title}" GroupName="Group Title" DisplayName="Title"/>
	        <telerik:PropertyDefinition Binding="{Binding HomePhone}" GroupName="Group Phone" DisplayName="HomePhone"/>
	    </telerik:RadPropertyGrid.PropertyDefinitions>
	</telerik:RadPropertyGrid>

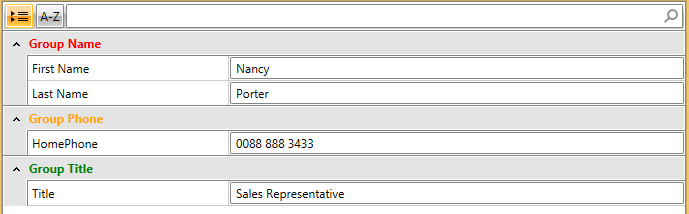

The RadPropertyGrid should have the following appearance after the applied changes:

f you are using Implicit Themes, you should base the style on the one defined for the corresponding theme.
