Modal Editor

The ModalEditor element allows you to edit the value of a PropertyDefinition in a modal dialog window.

Showing the ModalEditor via the EditorTemplate of a PropertyDefinition

The PropertyDefinition exposes the EditorTemplate property that will allow you to define a new ModalEditor instance for it. Via the SourceProperty of the ModalEditor, you can set the property from your business object that will be used for the binding. To use your custom editor, you can utilize the Editor property, which expects a value of the type of FrameworkElement.

Defining the business object

C#

    public class CharacterInfo
    {
        public string ProtagonistName { get; set; }
    }

VB.NET

    Public Class CharacterInfo
        Public Property ProtagonistName As String
    End Class

Setting the ModalEditor via the EditorTemplate property

XAML

    <telerik:RadPropertyGrid.PropertyDefinitions>
        <telerik:PropertyDefinition DisplayName="Protagonist Name" Binding="{Binding ProtagonistName}">
            <telerik:PropertyDefinition.EditorTemplate>
                <DataTemplate>
                    <telerik:ModalEditor SourceProperty="{Binding ProtagonistName}">
                        <telerik:ModalEditor.Editor>
                            <TextBox Text="{Binding ProtagonistName}" telerik:StyleManager.Theme="Windows11"/>
                        </telerik:ModalEditor.Editor>
                    </telerik:ModalEditor>
                </DataTemplate>
            </telerik:PropertyDefinition.EditorTemplate>
        </telerik:PropertyDefinition>
    </telerik:RadPropertyGrid.PropertyDefinitions>

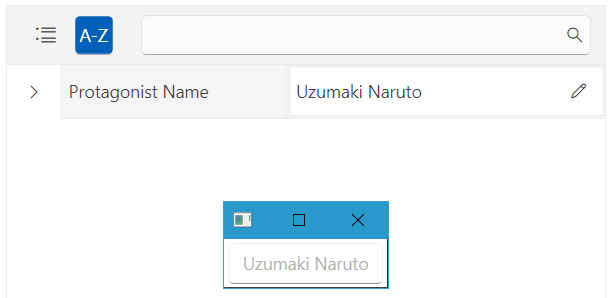

ModalEditor defined via the EditorTemplate property

Showing the ModalEditor When Using the EditorAttribute

When using the EditorAttribute, if its EditorStyle property is set to Modal, a new ModalEditor element is created.

Setting the EditorStyle property to Modal

C#

    public class CharacterInfo
    {
        [Editor(typeof(TextBox), "Text", EditorStyle.Modal)]
        public string ProtagonistName { get; set; }
    }

VB.NET

    Public Class CharacterInfo
        <Editor(GetType(TextBox), "Text", EditorStyle.Modal)>
        Public Property ProtagonistName As String
    End Class

ModalEditor defined via the EditorStyle property of the EditorAttribute

Customizing the ModalEditor

To customize the ModalEditor element, you can either create a Style that targets it or use the FieldLoaded event. You can retrieve it through the Content property of the Field object that is provided by the event's arguments.

Customizing the ModalEditor via a Style

XAML

    <!--If you are using NoXaml assemblies: BasedOn="{StaticResource ModalEditorStyle}"-->
    <Style TargetType="telerik:ModalEditor">
        <Setter Property="Foreground" Value="White"/>
        <Setter Property="Background" Value="Orange"/>
    </Style>

Customizing the ModalEditor via the FieldLoaded event

C#

    private void RadPropertyGrid_FieldLoaded(object sender, FieldEventArgs e)
    {
        var modalEditor = e.Field.Content as ModalEditor;

        if (modalEditor != null)
        {
            modalEditor.Foreground = Brushes.White;
            modalEditor.Background = Brushes.Orange;
        }
    }

VB.NET

    Private Sub RadPropertyGrid_FieldLoaded(ByVal sender As Object, ByVal e As FieldEventArgs)
        Dim modalEditor = TryCast(e.Field.Content, ModalEditor)

        If modalEditor IsNot Nothing Then
            modalEditor.Foreground = Brushes.White
            modalEditor.Background = Brushes.Orange
        End If
    End Sub

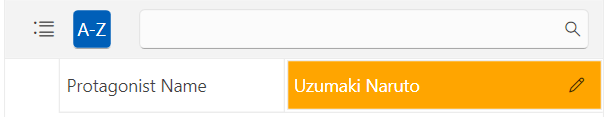

Customized ModalEditor

Positioning the ModalEditor

The ModalEditor element provides the functionality to position the modal dialog window. To do so, you can utilize the WindowStartupLocation, WindowTop, and WindowLeft properties.

In order for the WindowTop and WindowLeft properties to be taken into account, the WindowStartupLocation property has to be set to Manual.

Positioning the ModalEditor via Style

XAML

    <!--If you are using NoXaml assemblies: BasedOn="{StaticResource ModalEditorStyle}"-->
	<Style TargetType="telerik:ModalEditor">
		<Setter Property="WindowStartupLocation" Value="Manual"/>
		<Setter Property="WindowTop" Value="500"/>
		<Setter Property="WindowLeft" Value="250"/>
	</Style>

Positioning the ModalEditor via the FieldLoaded event

C#

	private void PropertyGrid_FieldLoaded(object sender, Telerik.Windows.Controls.Data.PropertyGrid.FieldEventArgs e)
	{
		var modalEditor = e.Field.Content as ModalEditor;

		if (modalEditor != null)
		{
			modalEditor.WindowStartupLocation = WindowStartupLocation.Manual;
			modalEditor.WindowTop = 500;
			modalEditor.WindowLeft = 250;
		}
	}

VB.NET

	Private Sub PropertyGrid_FieldLoaded(ByVal sender As Object, ByVal e As Telerik.Windows.Controls.Data.PropertyGrid.FieldEventArgs)
		Dim modalEditor = TryCast(e.Field.Content, ModalEditor)

		If modalEditor IsNot Nothing Then
			modalEditor.WindowStartupLocation = WindowStartupLocation.Manual
			modalEditor.WindowTop = 500
			modalEditor.WindowLeft = 250
		End If
	End Sub
