Palettes

RadChartView3D has a built-in automatic coloring mechanism. There are predefined palettes containing 3D materials used to define the textures of the chart data points.

Here are all of the predefined chart palettes:

Name	Pallete
Arctic
Autumn
Cold
Flower
Forest
Grayscale
Ground
Lilac
Natural
Pastel
Rainbow
Spring
Summer
Warm
Windows8
Office2013
VisualStudio2013
Green
Office2016
Material
Fluent
Crystal
VisualStudio2019

A palette can be set via the Palette property of the chart. The property is of type System.Windows.Media.Media3D.MaterialCollection so you can easily create a custom palette.

Example 1: Setting a palette in XAML

XAML

	<telerik:RadCartesianChart3D Palette="Windows8" />

You can access the predefined palettes in code using the Chart3DPalettes static class.

Example 2: Setting a palette in code

C#

	chart.Palette = Chart3DPalettes.Windows8;

Each series added in the chart will use different entry from the MaterialCollection (the palette). If you have a single series, only the first material from the collection is used.

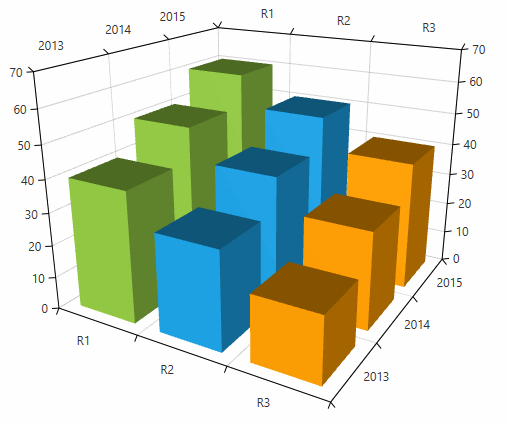

Figure 2: Chart with 3 BarSeries3D colored using the Windows8 palette

The DefaultVisualMaterial property of the series has a higher precedence than the palette materials.

Create a custom palette

The chart allows you to create a custom palette by defining a MaterialCollection and populating it with System.Windows.Media.Media3D.Material objects. The new collection can be assinged to the Palette property of the chart.

Example 3: Defining a custom palette

XAML

	<FrameworkElement.Resources>
        <MaterialCollection x:Key="customPalette">
            <DiffuseMaterial Brush="#0078D7"/>
            <DiffuseMaterial Brush="#EE5315"/>
            <DiffuseMaterial Brush="#FFCE43"/>
        </MaterialCollection>
    </FrameworkElement.Resources>

Example 4: Applying the custom palette

XAML

	 <telerik:RadCartesianChart3D Palette="{StaticResource customPalette}">

Example 5: Complete example of setting a custom palette

XAML

	<Grid>
		<FrameworkElement.Resources>
			<MaterialCollection x:Key="customPalette">
				<DiffuseMaterial Brush="#0078D7"/>
				<DiffuseMaterial Brush="#EE5315"/>
				<DiffuseMaterial Brush="#FFCE43"/>
			</MaterialCollection>
		</FrameworkElement.Resources>
		<telerik:RadCartesianChart3D Palette="{StaticResource customPalette}">
			<telerik:RadCartesianChart3D.XAxis>
				<telerik:CategoricalAxis3D />
			</telerik:RadCartesianChart3D.XAxis>
			<telerik:RadCartesianChart3D.YAxis>
				<telerik:CategoricalAxis3D />
			</telerik:RadCartesianChart3D.YAxis>
			<telerik:RadCartesianChart3D.ZAxis>
				<telerik:LinearAxis3D />
			</telerik:RadCartesianChart3D.ZAxis>
			<telerik:RadCartesianChart3D.Series>
				<telerik:BarSeries3D>
					<telerik:BarSeries3D.DataPoints>
						<telerik:XyzDataPoint3D XValue="R1" YValue="2013" ZValue="40" />
						<telerik:XyzDataPoint3D XValue="R1" YValue="2014" ZValue="50" />
						<telerik:XyzDataPoint3D XValue="R1" YValue="2015" ZValue="60" />
					</telerik:BarSeries3D.DataPoints>
				</telerik:BarSeries3D>
				<telerik:BarSeries3D>
					<telerik:BarSeries3D.DataPoints>
						<telerik:XyzDataPoint3D XValue="R2" YValue="2013" ZValue="30" />
						<telerik:XyzDataPoint3D XValue="R2" YValue="2014" ZValue="40" />
						<telerik:XyzDataPoint3D XValue="R2" YValue="2015" ZValue="50" />
					</telerik:BarSeries3D.DataPoints>
				</telerik:BarSeries3D>
				<telerik:BarSeries3D>
					<telerik:BarSeries3D.DataPoints>
						<telerik:XyzDataPoint3D XValue="R3" YValue="2013" ZValue="20" />
						<telerik:XyzDataPoint3D XValue="R3" YValue="2014" ZValue="30" />
						<telerik:XyzDataPoint3D XValue="R3" YValue="2015" ZValue="40" />
					</telerik:BarSeries3D.DataPoints>
				</telerik:BarSeries3D>
			</telerik:RadCartesianChart3D.Series>
			<telerik:RadCartesianChart3D.Grid>
				<telerik:CartesianChart3DGrid />
			</telerik:RadCartesianChart3D.Grid>
		</telerik:RadCartesianChart3D>
	</Grid>

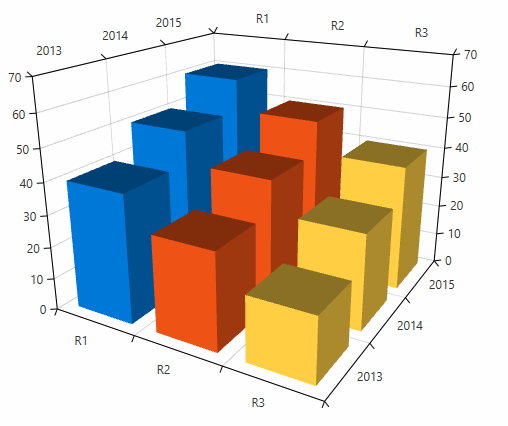

Figure 3: Chart with custom palette
