Binding DataPointMember to a DependencyProperty

The purpose of this tutorial is to show you how to databind the chart's DataPointMember to a DependencyProperty.

To learn what DataPointMember is please read the Manual Series Mapping section.

This help topic will show you how to change the bar height (assuming that RadChart is created with its DefaultSeriesDefinition which is BarSeriesDefinition) as soon as you change the value in Text box.

The main idea behind this binding is to create an object that implements INotifyPropertyChanged and setting it to both RadChart and Text Box:

XAML

	<telerik:RadChart x:Name="RadChart1" Margin="0,0,0,48" ItemsSource="{Binding}">
	     <telerik:RadChart.SeriesMappings>
	          <telerik:SeriesMapping>
	               <telerik:SeriesMapping.SeriesDefinition>
	                    <telerik:BarSeriesDefinition />
	               </telerik:SeriesMapping.SeriesDefinition>
	               <telerik:ItemMapping FieldName="yValue" DataPointMember="YValue" />
	          </telerik:SeriesMapping>
	     </telerik:RadChart.SeriesMappings>
	</telerik:RadChart>
	<TextBox Height="23" HorizontalAlignment="Left" Margin="342,0,0,12" Name="textBox1" VerticalAlignment="Bottom" Width="120" Text="{Binding Path=[0].yValue, Mode=TwoWay}" />
	<TextBlock Height="23" HorizontalAlignment="Left" Margin="300,0,0,8" Name="textBlock1" Text="Value:" VerticalAlignment="Bottom" />

Here is how to create object that implements INotifyPropertyChanged in code-behind:

C#

	public class MyObject : INotifyPropertyChanged
	{
	  private double _yValue = 0;
	  public event PropertyChangedEventHandler PropertyChanged;
	  public double yValue
	  {
	    get
	    {
	      return this._yValue;
	    }
	    set
	    {
	     if (this._yValue == value)
	     return;
	     this._yValue = value;
	     this.OnPropertyChanged("yValue");
	     }
	   }
	   protected virtual void OnPropertyChanged(string propertyName)
	   {
	     if (PropertyChanged != null)
	     PropertyChanged(this, new PropertyChangedEventArgs(propertyName));
	   }
	}

VB.NET

	Public Class MyObject
	    Implements INotifyPropertyChanged


	    Private _yValue As Double = 0

	    Public Property yValue() As Double

	        Get

	            Return Me._yValue
	        End Get
	        Set(value As Double)

	            If Me._yValue = value Then
	                Return
	            End If
	            Me._yValue = value

	            Me.OnPropertyChanged("yValue")
	        End Set
	    End Property

	    Protected Overridable Sub OnPropertyChanged(propertyName As String)

	        RaiseEvent PropertyChanged(Me, New PropertyChangedEventArgs(propertyName))
	    End Sub

	    Public Event PropertyChanged(sender As Object, e As PropertyChangedEventArgs) Implements INotifyPropertyChanged.PropertyChanged
	End Class

Set the DataContext property to List of MyObject class after the InitializeComponent method:

C#

	this.DataContext = new List<MyObject>() { new MyObject() };

VB.NET

	Me.DataContext = New List(Of MyObject)() From { _
	New MyObject() _
	}

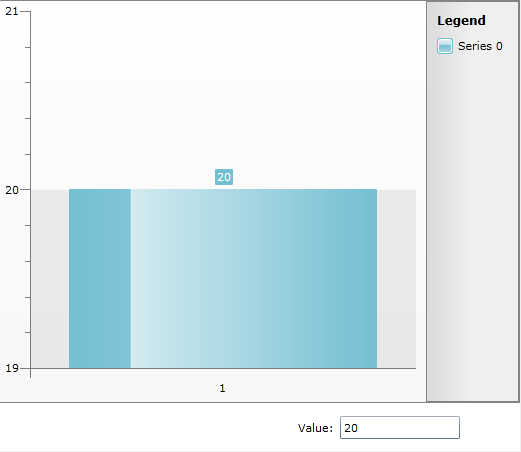

Here is the final result:

ou should move the focus out of the Text box in Silverlight to be able to see the new value of the Bar.
