Chart Export

RadChart allows you to export the chart in several file formats:

• Png - Portable Netwok Graphic. Use RadChart.ExportToImage(Stream).

• Bmp - Bitmap file. Use RadChart.ExportToImage(Stream, BitmapEncoder) where the encoder is of type BmpBitmapEncoder().

• ExcelML - ExcelML file, supported by Office 2003 and above. Use RadChart.ExportToExcelML(Stream).

• Xps - XML Paper Specification file. Use RadChart.ExportToXps(Stream).

n WPF there are overloads for the methods listed above, which take as parameter the name of the file you want to export to, instead of a stream. This allows you to easily export your chart directly to a file.

The following example demonstrates how to export RadChart to ExcelML file format.

C#

	SaveFileDialog dialog = new SaveFileDialog();
	dialog.DefaultExt = "*.xls";
	dialog.Filter = "Files(*.xls)|*.xls";
	if ( !( bool )dialog.ShowDialog() )
	    return;
	Stream fileStream = dialog.OpenFile();
	radChart.ExportToExcelML( fileStream );
	fileStream.Close();

VB.NET

	Dim dialog As New SaveFileDialog()
	dialog.DefaultExt = "*.xls"
	dialog.Filter = "Files(*.xls)|*.xls"
	If Not CBool(dialog.ShowDialog()) Then
	    Return
	End If
	Dim fileStream As Stream = dialog.OpenFile()
	radChart.ExportToExcelML(fileStream)
	fileStream.Close()

C#

	SaveFileDialog dialog = new SaveFileDialog();
	dialog.DefaultExt = "*.xls";
	dialog.Filter = "Files(*.xls)|*.xls";
	if (!(bool)dialog.ShowDialog())
	    return;
	radChart.ExportToExcelML(dialog.FileName);
	fileStream.Close();

VB.NET

	Dim dialog As New SaveFileDialog()
	dialog.DefaultExt = "*.xls"
	dialog.Filter = "Files(*.xls)|*.xls"
	If Not CBool(dialog.ShowDialog()) Then
	    Return
	End If
	radChart.ExportToExcelML(dialog.FileName)
	fileStream.Close()

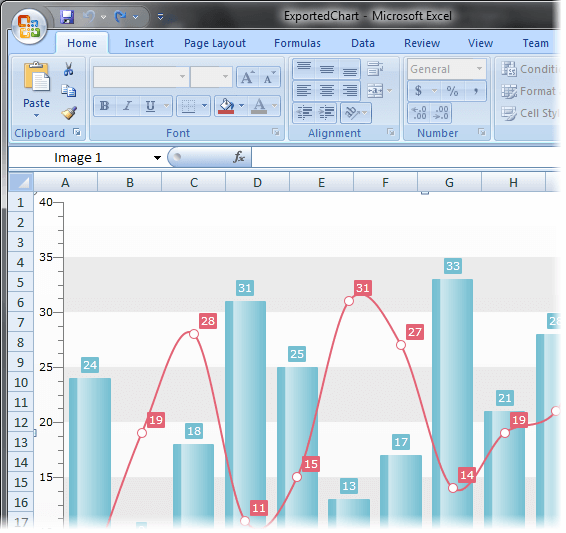

The snapshot below shows the exported ExcelML file loaded into Excel.
