Calculator Picker

The RadCalculatorPicker control is a drop down button with a RadCalculator in its drop down content. The button content shows the calculated value of the calculator.

Defining RadCalculatorPicker

XAML

	<telerik:RadCalculatorPicker Height="30" Width="200" />

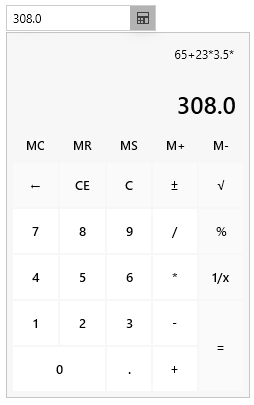

RadCalculatorPicker example

The drop down state can be controlled manually with the IsDropDownOpen property of RadCalculatorPicker.

Opening the drop down content in code

C#

	this.calculatorPicker.IsDropDownOpen = true;

DataGrid Integration

The following example shows how to utilize the RadColorPicker control as the cell editing element of a RadGridView column. To do so, define a custom CellEditTemplate for the column and in the DataTemplate add the calculator.

Defining a model for the RadGridView rows

C#

	public class RowInfo
    {
        public string Name { get; set; }
        public double Value { get; set; }
    }

Populating the data source

C#

	public MainWindow()
	{
		InitializeComponent();
		var source = new ObservableCollection<RowInfo>();
		for (int i = 0; i < 10; i++)
		{
			source.Add(new RowInfo() { Name = "Item " + i, Value = 5 });
		}
		DataContext = source;
	}

Defining the RadGridView and setting up the RadCalculatorPicker as the cell edit element

XAML

	<telerik:RadGridView GroupRenderMode="Flat"
						 ItemsSource="{Binding}"
						 AutoGenerateColumns="False">
		<telerik:RadGridView.Columns>
			<telerik:GridViewDataColumn DataMemberBinding="{Binding Name}"/>
			<telerik:GridViewDataColumn DataMemberBinding="{Binding Value}">
				<telerik:GridViewDataColumn.CellEditTemplate>
					<DataTemplate>
						<telerik:RadCalculatorPicker Value="{Binding Value, Mode=TwoWay}" />
					</DataTemplate>
				</telerik:GridViewDataColumn.CellEditTemplate>
			</telerik:GridViewDataColumn>
		</telerik:RadGridView.Columns>
	</telerik:RadGridView>

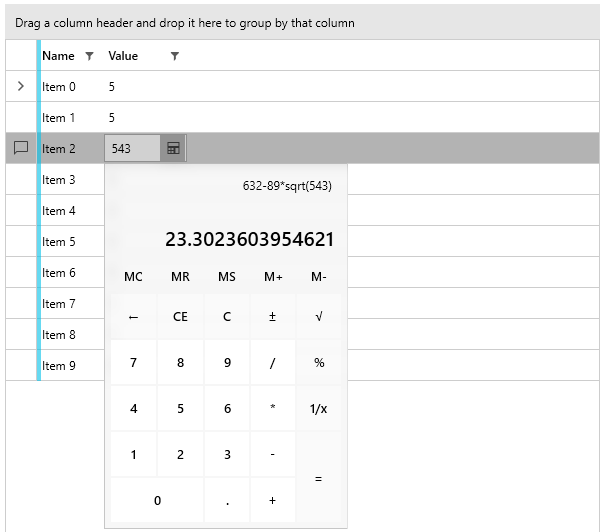

Using RadCalculatorPicker as a cell editor of RadGridView
