How to show different columns for child rows

Updated over 6 months ago

Environment

Product Version	Product	Author
2022.2.622	RadGridView for WinForms	Dinko Krastev

Description

Before proceeding with the approach we need to pull out an important note when modifying templates in the RadGridView. Each hierarchical level is represented by a GridViewTemplate. This template is a common template that is used by all the parent rows to display their hierarchical rows. Each level shares one and the same template. So modifying the template will affect all rows on this level. However, the RadGridView allows you to have multiple GridViewTemplates. We can use this functionality to achieve our scenario. This example demonstrates a sample approach to how to hide the child tabs depending on a cell value in the parent row.

Solution

1. First we will populate RadGridView with hierarchical data and subscribe to the ViewCellFormatting event where we will execute our custom logic. For the purpose of this example, the control will be populated in unbound mode.

C#


public RadForm1()
{
	InitializeComponent();
	this.radGridView1.ViewCellFormatting += RadGridView1_ViewCellFormatting;
	CreatingHierarchicalGridInUnboundMode();

}

private void RadGridView1_ViewCellFormatting(object sender, CellFormattingEventArgs e)
{
    // execute logic which hides/shows different gridview template
}

public void CreatingHierarchicalGridInUnboundMode()
{
	GridViewTextBoxColumn textColumn = new GridViewTextBoxColumn("Name");
	textColumn.Width = 150;
	radGridView1.MasterTemplate.Columns.Add(textColumn);

	//setup the child template
	GridViewTemplate firstTemplate = new GridViewTemplate();
	firstTemplate.AllowAddNewRow = true;
	firstTemplate.Caption = "A Table";
	firstTemplate.Columns.Add(new GridViewTextBoxColumn("Name"));
	firstTemplate.Columns.Add(new GridViewTextBoxColumn("Product Number"));
	firstTemplate.Columns.Add(new GridViewDecimalColumn("Quantity"));
	firstTemplate.Columns.Add(new GridViewDecimalColumn("Discount"));
	firstTemplate.Columns.Add(new GridViewDecimalColumn("Total"));
	radGridView1.MasterTemplate.Templates.Add(firstTemplate);

	//create the relation
	GridViewRelation firstRelation = new GridViewRelation(radGridView1.MasterTemplate);
	firstRelation.ChildTemplate = firstTemplate;
	firstRelation.RelationName = "EmployeesOrders";
	firstRelation.ParentColumnNames.Add("Name");
	firstRelation.ChildColumnNames.Add("Name");
	radGridView1.Relations.Add(firstRelation);

	GridViewTemplate secondTemplate = new GridViewTemplate();
	secondTemplate.Caption = "B Table";
	secondTemplate.AllowAddNewRow = true;
	secondTemplate.Columns.Add(new GridViewTextBoxColumn("Name"));
	secondTemplate.Columns.Add(new GridViewTextBoxColumn("Product Number"));
	radGridView1.MasterTemplate.Templates.Add(secondTemplate);
	//create the relation
	GridViewRelation secondRelation = new GridViewRelation(radGridView1.MasterTemplate);
	secondRelation.ChildTemplate = secondTemplate;
	secondRelation.RelationName = "EmployeesOrders";
	secondRelation.ParentColumnNames.Add("Name");
	secondRelation.ChildColumnNames.Add("Name");
	radGridView1.Relations.Add(secondRelation);
	//load data
	LoadUnboundData();
}

Random random = new Random((int)DateTime.Now.Ticks);
private void LoadUnboundData()
{
	using (radGridView1.DeferRefresh())
	{
		for (int i = 0; i < 10; i++)
		{
			string name = random.Next(1, 15) % 2 == 0 ? "A" : "B";
			radGridView1.MasterTemplate.Rows.Add(name);
			GridViewTemplate template = radGridView1.MasterTemplate.Templates[0];
			for (int j = 0; j < 1; j++)
			{
				template.Rows.Add(name, random.Next(1000), random.Next(50), random.Next(100), random.Next(10000));
			}
			GridViewTemplate template2 = radGridView1.MasterTemplate.Templates[1];
			for (int j = 0; j < 1; j++)
			{
				template2.Rows.Add(name, random.Next(1000));
			}
		}
	}
}



VB.NET


Public Sub New()
	InitializeComponent()
	AddHandler Me.radGridView1.ViewCellFormatting, AddressOf RadGridView1_ViewCellFormatting
	CreatingHierarchicalGridInUnboundMode()
End Sub

Private Sub RadGridView1_ViewCellFormatting(ByVal sender As Object, ByVal e As CellFormattingEventArgs)
End Sub

Public Sub CreatingHierarchicalGridInUnboundMode()
	Dim textColumn As GridViewTextBoxColumn = New GridViewTextBoxColumn("Name")
	textColumn.Width = 150
	radGridView1.MasterTemplate.Columns.Add(textColumn)
	Dim firstTemplate As GridViewTemplate = New GridViewTemplate()
	firstTemplate.AllowAddNewRow = True
	firstTemplate.Caption = "A Table"
	firstTemplate.Columns.Add(New GridViewTextBoxColumn("Name"))
	firstTemplate.Columns.Add(New GridViewTextBoxColumn("Product Number"))
	firstTemplate.Columns.Add(New GridViewDecimalColumn("Quantity"))
	firstTemplate.Columns.Add(New GridViewDecimalColumn("Discount"))
	firstTemplate.Columns.Add(New GridViewDecimalColumn("Total"))
	radGridView1.MasterTemplate.Templates.Add(firstTemplate)
	Dim firstRelation As GridViewRelation = New GridViewRelation(radGridView1.MasterTemplate)
	firstRelation.ChildTemplate = firstTemplate
	firstRelation.RelationName = "EmployeesOrders"
	firstRelation.ParentColumnNames.Add("Name")
	firstRelation.ChildColumnNames.Add("Name")
	radGridView1.Relations.Add(firstRelation)
	Dim secondTemplate As GridViewTemplate = New GridViewTemplate()
	secondTemplate.Caption = "B Table"
	secondTemplate.AllowAddNewRow = True
	secondTemplate.Columns.Add(New GridViewTextBoxColumn("Name"))
	secondTemplate.Columns.Add(New GridViewTextBoxColumn("Product Number"))
	radGridView1.MasterTemplate.Templates.Add(secondTemplate)
	Dim secondRelation As GridViewRelation = New GridViewRelation(radGridView1.MasterTemplate)
	secondRelation.ChildTemplate = secondTemplate
	secondRelation.RelationName = "EmployeesOrders"
	secondRelation.ParentColumnNames.Add("Name")
	secondRelation.ChildColumnNames.Add("Name")
	radGridView1.Relations.Add(secondRelation)
	LoadUnboundData()
End Sub

Private random As Random = New Random(CInt(DateTime.Now.Ticks))

Private Sub LoadUnboundData()
	Using radGridView1.DeferRefresh()

		For i As Integer = 0 To 10 - 1
			Dim name As String = If(random.[Next](1, 15) Mod 2 = 0, "A", "B")
			radGridView1.MasterTemplate.Rows.Add(name)
			Dim template As GridViewTemplate = radGridView1.MasterTemplate.Templates(0)

			For j As Integer = 0 To 1 - 1
				template.Rows.Add(name, random.Next(1000), random.Next(50), random.Next(100), random.Next(10000))
			Next

			Dim template2 As GridViewTemplate = radGridView1.MasterTemplate.Templates(1)

			For j As Integer = 0 To 1 - 1
				template2.Rows.Add(name, random.Next(1000))
			Next
		Next
	End Using
End Sub

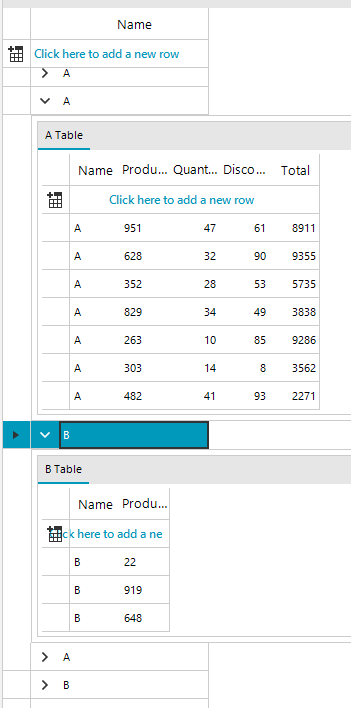

2. What's left is to create the logic in the ViewCellFormatting event handler. In the following code snippet, we are going to check the string in the parent row cell. Depending on the cell value we are going to show one template and hide the other one.

C#

private void RadGridView1_ViewCellFormatting(object sender, CellFormattingEventArgs e)
{
    GridDetailViewCellElement cell = e.CellElement as GridDetailViewCellElement;
    GridGroupExpanderCellElement expanderCell = e.CellElement as GridGroupExpanderCellElement;
    if (cell != null)
    {
        GridViewHierarchyRowInfo hierarchyRow = (GridViewHierarchyRowInfo)((GridViewDetailsRowInfo)cell.RowInfo).Owner;
        for (int i = 0; i < cell.PageViewElement.Items.Count; i++)
        {
            RadPageViewItem item = cell.PageViewElement.Items[i];
            GridViewInfo viewInfo = hierarchyRow.Views[i];
            // item.Text = "Child Template " + i;
            if (hierarchyRow.Cells[0].Value != null && hierarchyRow.Cells[0].Value.ToString() == "B")
            {
                cell.PageViewElement.Items[1].IsSelected = true;
                cell.PageViewElement.Items[1].Visibility = ElementVisibility.Visible;
                cell.PageViewElement.Items[0].Visibility = ElementVisibility.Collapsed;
            }
            else
            {
                cell.PageViewElement.Items[0].IsSelected = true;
                cell.PageViewElement.Items[0].Visibility = ElementVisibility.Visible;
                cell.PageViewElement.Items[1].Visibility = ElementVisibility.Collapsed;
            }
        }
    }
}



VB.NET

Private Sub RadGridView1_ViewCellFormatting(ByVal sender As Object, ByVal e As CellFormattingEventArgs)
    Dim cell As GridDetailViewCellElement = TryCast(e.CellElement, GridDetailViewCellElement)
    Dim expanderCell As GridGroupExpanderCellElement = TryCast(e.CellElement, GridGroupExpanderCellElement)

    If cell IsNot Nothing Then
        Dim hierarchyRow As GridViewHierarchyRowInfo = CType((CType(cell.RowInfo, GridViewDetailsRowInfo)).Owner, GridViewHierarchyRowInfo)

        For i As Integer = 0 To cell.PageViewElement.Items.Count - 1
            Dim item As RadPageViewItem = cell.PageViewElement.Items(i)
            Dim viewInfo As GridViewInfo = hierarchyRow.Views(i)

            If hierarchyRow.Cells(0).Value IsNot Nothing AndAlso hierarchyRow.Cells(0).Value.ToString() = "B" Then
                cell.PageViewElement.Items(1).IsSelected = True
                cell.PageViewElement.Items(1).Visibility = ElementVisibility.Visible
                cell.PageViewElement.Items(0).Visibility = ElementVisibility.Collapsed
            Else
                cell.PageViewElement.Items(0).IsSelected = True
                cell.PageViewElement.Items(0).Visibility = ElementVisibility.Visible
                cell.PageViewElement.Items(1).Visibility = ElementVisibility.Collapsed
            End If
        Next
    End If
End Sub
