Drag and Drop Behavior from GanttView to Scheduler

Updated over 6 months ago

Environment

Product Version	Product	Author
2019.2.618	RadGanttView for WinForms	Desislava Yordanova

Description

RadGanttView supports drag and drop functionality for its tasks out of the box. A common requirement is to drag a task outside the ganttview, e.g. to RadScheduler and add an appointment after dropping the task to a specific cell.

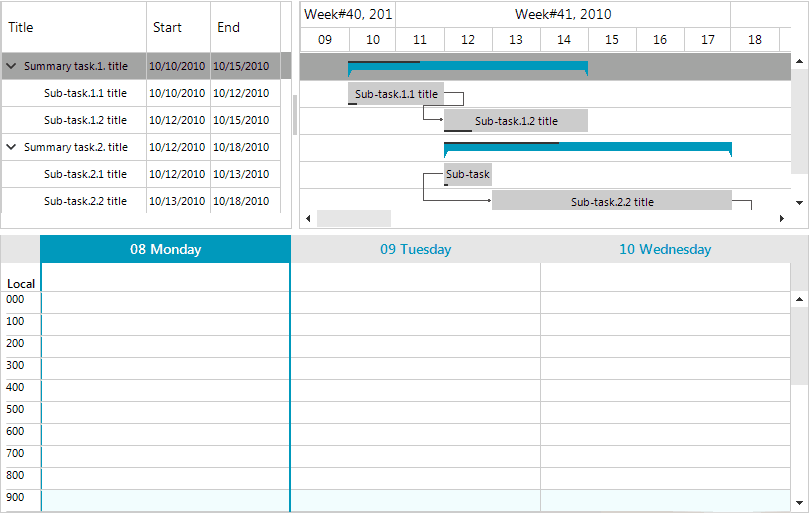

Drag and Drop from RadGanttView to RadScheduler

Solution

This behavior can be achieved by the GanttViewDragDropService which is accessed by the GanttViewElement.DragDropService property. As a descendant of RadDragDropService, GanttViewDragDropService handles the whole drag and drop operation. The PreviewDragOver event allows you to control on what targets the task being dragged can be dropped on. The PreviewDragDrop event allows you to get a handle on all the aspects of the drag and drop operation, the source (drag) RadGanttView, the destination (target) control, as well as the task being dragged.

It is necessary to implement a custom BaseGanttViewBehavior in order to start the service on mouse down. Since RadGanttView allows only horizontal dragging of a task, the HandleMouseMove method of the inherited GanttViewDragDropService ensures that you can drag the task outside the associated row.

Consider RadGanttView is populated programmatically with GanttViewDataItems in the PopulateGanttView method.

Drag tasks from RadGanttView to RadScheduler

C#

          public RadForm1()
        {
            InitializeComponent();

            PopulateGanttView();

            this.radGanttView1.GanttViewBehavior = new CustomGanttViewBehavior();
            this.radGanttView1.DragDropService = new CustomGanttViewDragDropService(this.radGanttView1.GanttViewElement);

            this.radGanttView1.DragDropService.PreviewDragOver += GanttViewDragDropService_PreviewDragOver;
            this.radGanttView1.DragDropService.PreviewDragDrop += GanttViewDragDropService_PreviewDragDrop;

            GanttViewTextViewColumn titleColumn = new GanttViewTextViewColumn("Title");
            GanttViewTextViewColumn startColumn = new GanttViewTextViewColumn("Start");
            GanttViewTextViewColumn endColumn = new GanttViewTextViewColumn("End");
            this.radGanttView1.GanttViewElement.Columns.Add(titleColumn);
            this.radGanttView1.GanttViewElement.Columns.Add(startColumn);
            this.radGanttView1.GanttViewElement.Columns.Add(endColumn);

            this.radGanttView1.DragDropService.PreviewDragStart += DragDropService_PreviewDragStart;
        }

        private void GanttViewDragDropService_PreviewDragOver(object sender, Telerik.WinControls.RadDragOverEventArgs e)
        {
            e.CanDrop = e.HitTarget is SchedulerCellElement | e.HitTarget is GanttViewTextViewCellElement;
        }

        public class CustomGanttViewBehavior : BaseGanttViewBehavior
        {
            protected override void ProcessScrolling(Point mousePosition, bool scrollVertical)
            {
            }

            public override bool ProcessMouseDown(MouseEventArgs e)
            {
                GanttViewTextViewCellElement cellElement = this.GanttViewElement.ElementTree.GetElementAtPoint(e.Location) as GanttViewTextViewCellElement;
                if (cellElement != null && e.Button == System.Windows.Forms.MouseButtons.Left)
                    this.GanttViewElement.DragDropService.Start(cellElement);

                return base.ProcessMouseDown(e);
            }
        }

        private void DragDropService_PreviewDragStart(object sender, Telerik.WinControls.PreviewDragStartEventArgs e)
        {
            GanttViewTextViewCellElement cellElement = e.DragInstance as GanttViewTextViewCellElement;
            if (cellElement != null)
                e.CanStart = true;
        }

        private void GanttViewDragDropService_PreviewDragDrop(object sender, Telerik.WinControls.RadDropEventArgs e)
        {
            SchedulerCellElement schedulerCell = e.HitTarget as SchedulerCellElement;
            if (schedulerCell == null)
            {
                DayViewAllDayHeader allDay = ((SchedulerDayViewElement)this.radScheduler1.SchedulerElement.ViewElement).AllDayHeaderElement;
                schedulerCell = SchedulerUIHelper.GetCellAtPoint(e.DropLocation, allDay.Children);
            }
            if (schedulerCell == null)
                return;
            GanttViewTaskElement draggedTaskElement = e.DragInstance as GanttViewTaskElement;
            GanttViewTextViewCellElement cellElement = e.DragInstance as GanttViewTextViewCellElement;
            if (draggedTaskElement == null && cellElement == null)
                return;
            Appointment appointment = new Appointment();
            appointment.Start = schedulerCell.Date;
            appointment.End = schedulerCell.Date.Add(schedulerCell.Duration);

            if (draggedTaskElement != null)
                appointment.Summary = draggedTaskElement.Text;
            else if (cellElement != null
            )
                appointment.Summary = cellElement.DataItem.Title;

            this.radScheduler1.Appointments.Add(appointment);
        }

        public class CustomGanttViewDragDropService : GanttViewDragDropService
        {
            public CustomGanttViewDragDropService(RadGanttViewElement owner)
                : base(owner)
            {
            }

            protected override void HandleMouseMove(Point mousePos)
            {
                var l = this.Location;
                this.Location = mousePos;
                base.HandleMouseMove(mousePos);
                this.Location = l;
            }
        }


VB.NET


    Sub New()

        InitializeComponent()

        PopulateGanttView()

        Me.RadGanttView1.GanttViewBehavior = New CustomGanttViewBehavior()
        Me.RadGanttView1.DragDropService = New CustomGanttViewDragDropService(Me.RadGanttView1.GanttViewElement)

        AddHandler Me.RadGanttView1.DragDropService.PreviewDragOver, AddressOf GanttViewDragDropService_PreviewDragOver
        AddHandler Me.RadGanttView1.DragDropService.PreviewDragDrop, AddressOf GanttViewDragDropService_PreviewDragDrop

        Dim titleColumn As New GanttViewTextViewColumn("Title")
        Dim startColumn As New GanttViewTextViewColumn("Start")
        Dim endColumn As New GanttViewTextViewColumn("End")
        Me.RadGanttView1.GanttViewElement.Columns.Add(titleColumn)
        Me.RadGanttView1.GanttViewElement.Columns.Add(startColumn)
        Me.RadGanttView1.GanttViewElement.Columns.Add(endColumn)

        AddHandler Me.RadGanttView1.DragDropService.PreviewDragStart, AddressOf DragDropService_PreviewDragStart
    End Sub

    Private Sub GanttViewDragDropService_PreviewDragOver(sender As Object, e As Telerik.WinControls.RadDragOverEventArgs)
        e.CanDrop = TypeOf e.HitTarget Is SchedulerCellElement
    End Sub

    Public Class CustomGanttViewBehavior
    Inherits BaseGanttViewBehavior
        Protected Overrides Sub ProcessScrolling(mousePosition As Point, scrollVertical As Boolean)

        End Sub

        Public Overrides Function ProcessMouseDown(e As MouseEventArgs) As Boolean
            Dim cellElement As GanttViewTextViewCellElement = TryCast(Me.GanttViewElement.ElementTree.GetElementAtPoint(e.Location), GanttViewTextViewCellElement)
            If cellElement IsNot Nothing AndAlso e.Button = Windows.Forms.MouseButtons.Left Then
                Me.GanttViewElement.DragDropService.Start(cellElement)
            End If

            Return MyBase.ProcessMouseDown(e)
        End Function
    End Class

    Private Sub DragDropService_PreviewDragStart(sender As Object, e As Telerik.WinControls.PreviewDragStartEventArgs)
        Dim cellElement As GanttViewTextViewCellElement = TryCast(e.DragInstance, GanttViewTextViewCellElement)
        If cellElement IsNot Nothing Then
            e.CanStart = True
        End If

    End Sub
    Private Sub GanttViewDragDropService_PreviewDragDrop(sender As Object, e As Telerik.WinControls.RadDropEventArgs)
        Dim schedulerCell As SchedulerCellElement = TryCast(e.HitTarget, SchedulerCellElement)
        If schedulerCell Is Nothing Then
            Dim allDay As DayViewAllDayHeader = TryCast(Me.RadScheduler1.SchedulerElement.ViewElement, SchedulerDayViewElement).AllDayHeaderElement
            schedulerCell = SchedulerUIHelper.GetCellAtPoint(e.DropLocation, allDay.Children)
        End If
        If schedulerCell Is Nothing Then
            Return
        End If
        Dim draggedTaskElement As GanttViewTaskElement = TryCast(e.DragInstance, GanttViewTaskElement)
        Dim cellElement As GanttViewTextViewCellElement = TryCast(e.DragInstance, GanttViewTextViewCellElement)
        If draggedTaskElement Is Nothing andalso cellElement is Nothing Then
            Return
        End If
        Dim appointment As New Appointment()
        appointment.Start = schedulerCell.Date
        appointment.[End] = schedulerCell.Date.Add(schedulerCell.Duration)

        If draggedTaskElement isnot Nothing  Then
            appointment.Summary = draggedTaskElement.Text
        Else If cellElement isnot Nothing
            appointment.Summary = cellElement.DataItem .Title
        End If

        Me.RadScheduler1.Appointments.Add(appointment)
    End Sub

    Public Class CustomGanttViewDragDropService
    Inherits GanttViewDragDropService
        Public Sub New(owner As RadGanttViewElement)
            MyBase.New(owner)

        End Sub

        Protected Overrides Sub HandleMouseMove(mousePos As Point)
            Dim l = Me.Location
            Me.Location = mousePos
            MyBase.HandleMouseMove(mousePos)
            Me.Location = l
        End Sub
    End Class



See Also

• GanttViewDragDropService
