Restricting Drag Direction in RadDiagram

Updated over 6 months ago

Environment

Product Version	2018.1 220
Product	RadDiagram for WinForms

The shapes displayed in RadDiagram can be dragged in all directions. This article will suggest a custom implementation how dragging can be restricted to a horizontal or vertical direction. The default behavior with both directions being active at the same time is also preserved.

Solution

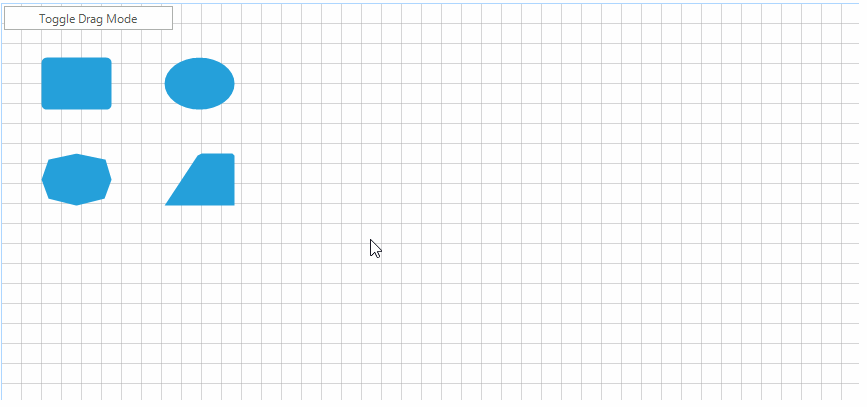

The animation below demonstrates the end result with the restricted direction.

Figure 1: Restrict Dragging

diagram-restricting-drag-direction 001

The custom functionality will be achieved with the help of a special drag service class.

1. Create a DragMode enumeration responsible for controlling the allowed drag direction.

Drag Mode Enumeration

C#
public enum DragMode
{
    Both,
    Horizontal,
    Vertical,
}
VB.NET
Public Enum DragMode
    Both
    Horizontal
    Vertical
End Enum

2. Inherit the DraggingService class.

Add two fields to be used for saving the drag start point and the currently selected drag mode.
Override the InitializeDrag method and set the initial drag start point.
Override the Drag method and depending on the current DragMode create a new drag point.

CustomDraggingService Implementation

C#
public class CustomDraggingService : DraggingService
{
    private Telerik.Windows.Diagrams.Core.Point startDragPoint;
    private DragMode dragMode = DragMode.Both;
    public CustomDraggingService(IGraphInternal graph)
        : base(graph)
    { }
    public DragMode DragMode
    {
        get
        {
            return this.dragMode;
        }
        set
        {
            this.dragMode = value;
        }
    }
    public override void InitializeDrag(Telerik.Windows.Diagrams.Core.Point point)
    {
        this.startDragPoint = point;
        base.InitializeDrag(point);
    }
    public override void Drag(Telerik.Windows.Diagrams.Core.Point newPoint)
    {
        Telerik.Windows.Diagrams.Core.Point dragPoint = newPoint;
        if (this.DragMode == DragMode.Horizontal)
        {
            dragPoint = new Telerik.Windows.Diagrams.Core.Point(newPoint.X, this.startDragPoint.Y);
        }
        else if (this.DragMode == DragMode.Vertical)
        {
            dragPoint = new Telerik.Windows.Diagrams.Core.Point(this.startDragPoint.X, newPoint.Y);
        }
        base.Drag(dragPoint);
    }
}
VB.NET
Public Class CustomDraggingService
    Inherits DraggingService
    Private startDragPoint As Telerik.Windows.Diagrams.Core.Point
    Private _dragMode As DragMode = DragMode.Both
    Public Sub New(ByVal graph As IGraphInternal)
        MyBase.New(graph)
    End Sub
    Public Property DragMode As DragMode
        Get
            Return Me._dragMode
        End Get
        Set(ByVal value As DragMode)
            Me._dragMode = value
        End Set
    End Property
    Public Overrides Sub InitializeDrag(ByVal point As Telerik.Windows.Diagrams.Core.Point)
        Me.startDragPoint = point
        MyBase.InitializeDrag(point)
    End Sub
    Public Overrides Sub Drag(ByVal newPoint As Telerik.Windows.Diagrams.Core.Point)
        Dim dragPoint As Telerik.Windows.Diagrams.Core.Point = newPoint
        If Me.DragMode = DragMode.Horizontal Then
            dragPoint = New Telerik.Windows.Diagrams.Core.Point(newPoint.X, Me.startDragPoint.Y)
        ElseIf Me.DragMode = DragMode.Vertical Then
            dragPoint = New Telerik.Windows.Diagrams.Core.Point(Me.startDragPoint.X, newPoint.Y)
        End If
        MyBase.Drag(dragPoint)
    End Sub
End Class

3. Instantiate the custom dragging service class.

Use the Custom Solution

C#
public partial class CustomDraggingServiceForm : Telerik.WinControls.UI.RadForm
{
    private CustomDraggingService dragService;
    public CustomDraggingServiceForm()
    {
        InitializeComponent();
        this.dragService = new CustomDraggingService(this.radDiagram1.DiagramElement)
        {
            DragMode = DragMode.Horizontal
        };
        this.radDiagram1.DiagramElement.ServiceLocator.Register<IDraggingService>(this.dragService);
    }
    private void radButton1_Click(object sender, System.EventArgs e)
    {
        this.dragService.DragMode = this.dragService.DragMode == DragMode.Horizontal ? DragMode.Vertical : DragMode.Horizontal;
    }
}
VB.NET
Public Class CustomDraggingServiceForm
    Dim dragService As CustomDraggingService
    Sub New()
        InitializeComponent()
        Me.dragService = New CustomDraggingService(Me.RadDiagram1.DiagramElement) With {.DragMode = DragMode.Horizontal}
        Me.RadDiagram1.DiagramElement.ServiceLocator.Register(Of IDraggingService)(Me.dragService)
    End Sub
    Private Sub RadButton1_Click(sender As Object, e As EventArgs) Handles RadButton1.Click
        Me.dragService.DragMode = If(Me.dragService.DragMode = DragMode.Horizontal, DragMode.Vertical, DragMode.Horizontal)
    End Sub
End Class

A complete solution providing a C# and VB.NET project is available here.
