xamarin RadListPicker Text color can't change

[Chiran]

Hi,

I'm trying to change the line colour of RadListPicker popup,

Please help me.



[Didi]

RadListPicker provides different styling options and they are described here: https://docs.telerik.com/devtools/xamarin/controls/listpicker/list-picker-styling#styling

On the attached image text color is not marked, the border around the items is marked.

If you want to change this border color and thickness then you have to set style to the ItemStyle and SelectedItemStyle

Example:

 <Style TargetType="telerikDataControls:SpinnerItemView" x:Key="ItemStyle">
                <Setter Property="BackgroundColor" Value="#F8F8F8"/>
                <Setter Property="CornerRadius" Value="0"/>
                <Setter Property="BorderColor" Value="Red"/>
                <Setter Property="BorderThickness" Value="2"/>
                <Setter Property="TextColor" Value="#919191" />
                <Setter Property="FontSize" Value="12"/>
            </Style>

            <Style TargetType="telerikDataControls:SpinnerItemView" x:Key="SelectedItemStyle">
                <Setter Property="BackgroundColor" Value="#F0F0F0"/>
                <Setter Property="CornerRadius" Value="0"/>
                <Setter Property="BorderColor" Value="Yellow"/>
                <Setter Property="BorderThickness" Value="2"/>
                <Setter Property="TextColor" Value="#4A4949" />
                <Setter Property="FontSize" Value="16"/>
            </Style>

and to change the border of the popup footer, you can use the FooterStyle property

<Style TargetType="telerikInput:PickerPopupFooterView" x:Key="footerStyle">
                <Setter Property="BackgroundColor" Value="Transparent"/>
                <Setter Property="HeightRequest" Value="60"/>
                <Setter Property="BorderColor" Value="Blue"/>
                <Setter Property="BorderThickness" Value="3"/>
            </Style>





 <telerikInput:RadListPicker Placeholder="Pick a City Name!"
                                        ItemsSource="{Binding Items}"
                                        DisplayMemberPath="Name"
                                        IsLooping="True"
                                        DisplayStringFormat="You have picked: {0}"
                                        ItemStyle="{StaticResource ItemStyle}"
                                        SelectedItemStyle="{StaticResource SelectedItemStyle}">
                <telerikInput:RadListPicker.BindingContext>
                    <local:ViewModel/>
                </telerikInput:RadListPicker.BindingContext>
                <telerikInput:RadListPicker.SelectorSettings>
                    <telerikInput:PickerPopupSelectorSettings PopupOutsideBackgroundColor="#4A4949F"
                                                              HeaderLabelText="Select city"
                                                              FooterStyle="{StaticResource footerStyle}"/>
                </telerikInput:RadListPicker.SelectorSettings>
            </telerikInput:RadListPicker>

and the used namespaces:

xmlns:telerikInput="clr-namespace:Telerik.XamarinForms.Input;assembly=Telerik.XamarinForms.Input"
xmlns:telerikDataControls="clr-namespace:Telerik.XamarinForms.DataControls;assembly=Telerik.XamarinForms.DataControls"

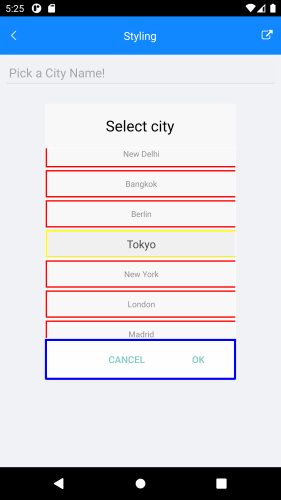

Result:





Regards,
Didi
Progress Telerik

[Chiran]

Thanks, Didi

Love you...

[Chiran]

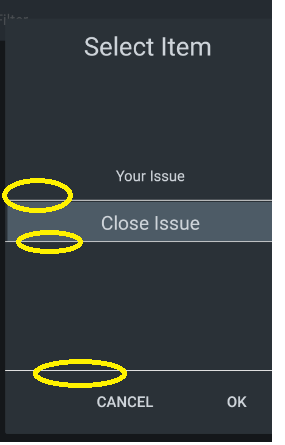

But the Center horizontal two-line can't remove or change colours, you can see that by changing the background colour to a bit dark,

My xamarin form version is 4.7.0.1351,



[Didi]

use SelectionHighlightStyle -> Specifies the style applied to the border where the current selection is.  https://docs.telerik.com/devtools/xamarin/controls/listpicker/list-picker-styling#listpicker-styling
Review the documentation and all styling options that ListPicker Provides.
