Why does the toolbar not show?

1 Answer 70 Views
Grid
Lisa
Top achievements
Rank 1
Lisa asked on 02 Dec 2021, 04:29 PM

Hello - I have a grid with a toolbar defined.  The grid is also coded to allow grouping.  The grouping option is visible, but not the toolbar.  If I disable grouping, the toolbar displays,  I have other grids coded very much the same in my project that work fine.

What do I have wrong on this one?

Here is my code:

        <div class="row pt-4 d-none centered" id="qSecurityGridDiv">
            @(Html.Kendo().Grid<WSIPC.Web.Models_View.Security.QmlativSecurityUserList>()
                .Name("grid")
                .Columns(columns => {
                    columns.Bound(p => p.Id).Visible(false);
                    columns.Bound(p => p.UserName).Title("Username");
                    columns.Bound(p => p.LastName).Title("Last Name");
                    columns.Bound(p => p.FirstName).Title("First Name");
                    columns.Bound(p => p.Role).EditorTemplateName("DropDownRoles");
                    columns.Bound(p => p.Grade).Title("Grade Level");
                    columns.Bound(p => p.AssignedSchools).ClientTemplate("#= iterate(data)#").Title("Schools");
                    columns.Bound(p => p.Hsb).EditorTemplateName("DropDownIndicators").Title("HSB Access");
                    columns.Bound(p => p.HsbAdmin).EditorTemplateName("DropDownIndicators").Title("HSB Administrator Access");
                    columns.Bound(p => p.MsdAdmin).EditorTemplateName("DropDownIndicators").Title("MSD Administrator Access");
                })
                .ToolBar(toolbar =>
                {
                    toolbar.Save();
                    toolbar.Excel();
                    toolbar.Pdf();
                    toolbar.Custom().Text("Mass Change").HtmlAttributes(new { id = "massChangeQ" });
                })
                .Pdf(pdf => pdf.ProxyURL(Url.Action("Excel_Export_Save", "Grid")).AllPages().FileName("Msd Security Grid"))
                .Excel(excel => excel.ProxyURL(Url.Action("Excel_Export_Save", "Grid")).AllPages(true).FileName("Msd Security Grid"))
                .AutoBind(false)
                .Pageable()
                .Sortable()
                .Scrollable()
                .Groupable()
                .Reorderable(reorder => reorder.Columns(true))
                .Editable(editable => editable.Mode(GridEditMode.InCell))
                .Filterable()
                .HtmlAttributes(new { style = "height:750px;" })
                .DataSource(dataSource => dataSource
                    .Ajax()
                    .Batch(true)
                    .PageSize(100)
                    .Read(read => read.Action("GetSecurityUsersFilteredGrid", "MsdQmlativSecurity").Data("additionalInfo"))
                    .Model(model =>
                    {
                        model.Id(p => p.Id);
                        model.Field(p => p.UserName).Editable(false);
                        model.Field(p => p.LastName).Editable(false);
                        model.Field(p => p.FirstName).Editable(false);
                        model.Field(p => p.Grade).Editable(false);
                        model.Field(p => p.AssignedSchools);
                    })
                    .Update("UpdateSecurityGridGroup", "MsdQmlativSecurity")
                    .Events(e => e.Sync("sync_handler"))
                 )
                .Events(events => events.Edit("onEdit"))
            )
        </div><!-- end grid row-->

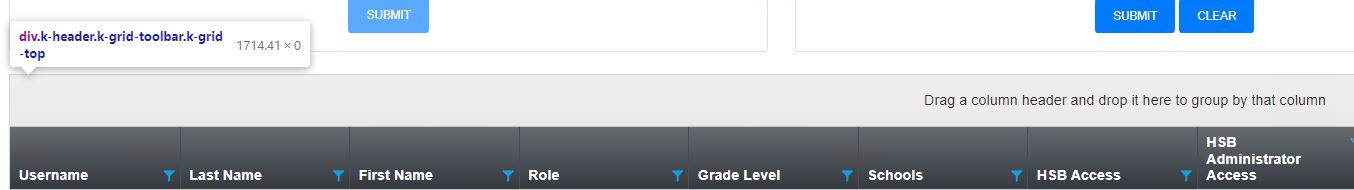

I've attached screen shots with grouping enabled and with it not.

Thanks for any help.



Lisa

1 Answer, 1 is accepted

Sort by
0
Anton Mironov
Telerik team
answered on 07 Dec 2021, 11:05 AM

Hello Lisa,

Thank you for the images, code snippet, and details provided.

As this forum post is a duplicate of a support ticket, I am reposting my answer here for the community as well:

I tried to replicate the pointed behavior locally with version "2021.2.616" and the result is the expected one.

Find attached a sample project that I prepared for the case. It uses the pointed version along with a Groupable Kendo UI Grid and your Toolbar.

Make the needed tests locally with the project attached and let me know if this is the expected behavior.

Could you please double-check for JavaScript errors in the Developer Tools Console when running your application?

Furthermore, the fastest route to getting you up and running is if you could provide a runnable, isolated, sample project. Examining this project will let us replicate the issue locally and further troubleshoot it.

Looking forward to hearing back from you.



Kind Regards,
Anton Mironov
Progress Telerik
