Very small locked column

[ZOUHDI]

Hello,

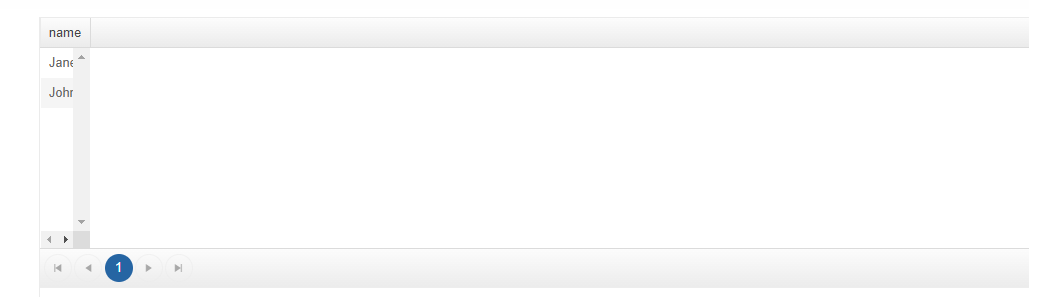

When a set a column to locked in my Kendo Grid , all grid come small like attchment.

i used this exemple code :

            $("#grid").kendoGrid({

                height: 540,
                sortable: true,
                reorderable: true,
                resizable: true,
                filterable: true,
                columnMenu: true,
                pageable: true,
                columns: [
                    { locked: true, field: "id", width: 200 },
                    { field: "name", width: 800 }
                ],
                dataSource: [{ id: 1, name: "Jane Doe" }, { id: 2, name: "John Doe" }]
            });



Thanks for help.

[Nikolay]

Hello Zouhdi,

For the locked columns feature to work properly, there are some configuration settings that must be provided. Please ensure they are all set:

- Set explicit pixel widths to all columns to allow the Grid to adjust the layout of the frozen and non-frozen table parts.
- Make sure that the total width of all locked columns is equal to or less than the width of the Grid minus three times the width of the scrollbar.

Full information about those requirements can be obtained in the following documentation article:

• https://docs.telerik.com/kendo-ui/controls/data-management/grid/columns/locked-columns#locked-columns

Let me know if you have any questions.

Regards,
Nikolay
Progress Telerik
