asked on 09 Sep 2010, 01:25 PM
Dear Telerik Support,
I have a problem with a table inside my reports. I have some data, that should be formatted in a table. First I used a lot of textboxes with no space between them and set the appropriate border properties to get a rectangle around the table and row separation inside it.

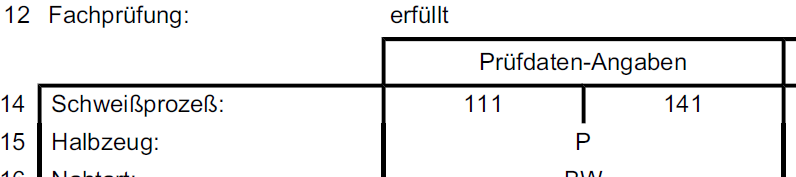

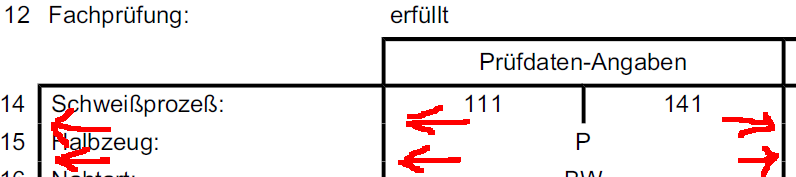

By doing it this way, I got the same problems like Jim on this Post. So I tried the suggested solution from Steve, but with no success (See attached picture image1.png). If I remove the horizontal borders (top and bottom), the vertical lines are rendered correct (see attached picture image2.png).
This behavior occurs in printing only (even paper or pdf). The Preview looks ok.
I use Telerik.Reporting Q2 2010 (4.1.10.714) on VS 2010 and Windows 7 Ultimate 64Bit .
Greetings
Thomas
I have a problem with a table inside my reports. I have some data, that should be formatted in a table. First I used a lot of textboxes with no space between them and set the appropriate border properties to get a rectangle around the table and row separation inside it.
By doing it this way, I got the same problems like Jim on this Post. So I tried the suggested solution from Steve, but with no success (See attached picture image1.png). If I remove the horizontal borders (top and bottom), the vertical lines are rendered correct (see attached picture image2.png).
This behavior occurs in printing only (even paper or pdf). The Preview looks ok.
I use Telerik.Reporting Q2 2010 (4.1.10.714) on VS 2010 and Windows 7 Ultimate 64Bit .
Greetings
Thomas
5 Answers, 1 is accepted
0
Hi Thomas,
Steve
the Telerik team
The "thinner" lines you observe are caused by Adobe Acrobat settings (see attached screenshot), namely "Smooth line art" and "Enhance thin lines". When these settings are enabled (default), the borders look different in lower resolutions, although they are the same (zoom the pdf to 300% for example to verify this).
However these settings are not relevant when printing and only applicable for the PDF representation, so to resolve the problem either disable the above settings or apply a bigger border to the report items i.e. 2 px or more. This way the Acrobat would not need to enhance the lines as they are bigger enough for it to show it correctly.
Steve
the Telerik team
Do you want to have your say when we set our development plans?
Do you want to know when a feature you care about is added or when a bug fixed?
Explore the
Telerik Public Issue Tracking
system and vote to affect the priority of the items
0
Thomas Sonnenschein
Top achievements
Rank 2
Rank 2
answered on 13 Sep 2010, 10:14 AM
Dear Support,
you wrote
However these settings are not relevant when printing and only applicable for the PDF representation
That is wrong. The problem with different width of vertical lines depending on also switched on horizontal lines is a problem even in printing, with no Acrobat Reader involved (printed direct from Web Preview).
Further more you wrote:
to resolve the problem either disable the above settings or apply a bigger border to the report items i.e. 2 px or more

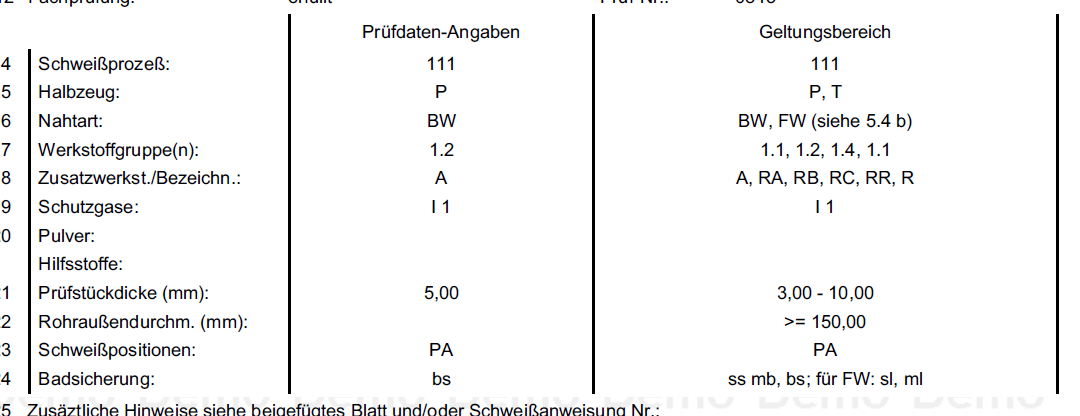

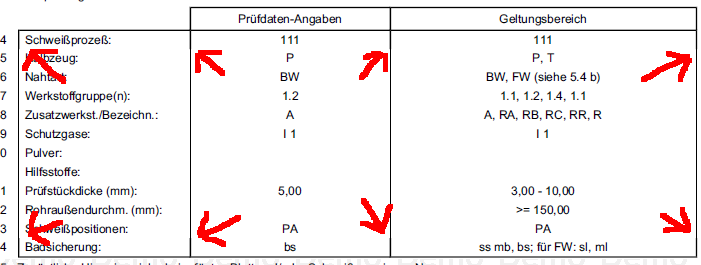

So I set the borders of my textboxes from default 1pt (the default for textbox) to 2px and got the result in image3.png (Acrobat 200% Zoom, "Enhance thin lines" enabled). Even in 400% you can see, that the vertical line of all textboxes with horizontal lines turned on are different from the lines in textboxes, with horizontal lines set to none (all Borderlinewidth 2px). Then I switched the option "Enhance thin lines" off and got the result from image4.png. Also not correct, now there are gaps between the boxes, but linethickness seems to be the same. But in Result, the borders are too thick now (2px thickness in report should be on a 600dpi or 1200dpi print thinner).
I even tried 2pt instead of 2px, but that looked so ugly, that I switched fast back to 2px.
So please help
Thomas
you wrote
However these settings are not relevant when printing and only applicable for the PDF representation
That is wrong. The problem with different width of vertical lines depending on also switched on horizontal lines is a problem even in printing, with no Acrobat Reader involved (printed direct from Web Preview).
Further more you wrote:
to resolve the problem either disable the above settings or apply a bigger border to the report items i.e. 2 px or more
So I set the borders of my textboxes from default 1pt (the default for textbox) to 2px and got the result in image3.png (Acrobat 200% Zoom, "Enhance thin lines" enabled). Even in 400% you can see, that the vertical line of all textboxes with horizontal lines turned on are different from the lines in textboxes, with horizontal lines set to none (all Borderlinewidth 2px). Then I switched the option "Enhance thin lines" off and got the result from image4.png. Also not correct, now there are gaps between the boxes, but linethickness seems to be the same. But in Result, the borders are too thick now (2px thickness in report should be on a 600dpi or 1200dpi print thinner).
I even tried 2pt instead of 2px, but that looked so ugly, that I switched fast back to 2px.
So please help
Thomas
0
Hello Thomas,
Printing from the web viewer exports to PDF internally and invokes the Acrobat PDF plugin to take care of the printing, so in your case the printing depends on Acrobat. For example if you export to TIFF and print from it, the problem should not be present.
Either way, the solution from my previous post, has resolved such inconsistencies on our end and has helped other users that have encountered this problem. That is why if the problem is still present on your end, we would appreciate if you open a support ticket and attach a sample runnable project that exhibits the problem. Once we review it, we would be able to provide you with more information.
Greetings,
Steve
the Telerik team
Printing from the web viewer exports to PDF internally and invokes the Acrobat PDF plugin to take care of the printing, so in your case the printing depends on Acrobat. For example if you export to TIFF and print from it, the problem should not be present.
Either way, the solution from my previous post, has resolved such inconsistencies on our end and has helped other users that have encountered this problem. That is why if the problem is still present on your end, we would appreciate if you open a support ticket and attach a sample runnable project that exhibits the problem. Once we review it, we would be able to provide you with more information.
Greetings,
Steve
the Telerik team
Do you want to have your say when we set our development plans?
Do you want to know when a feature you care about is added or when a bug fixed?
Explore the
Telerik Public Issue Tracking
system and vote to affect the priority of the items
0
Mike Sorel
Top achievements
Rank 1
Rank 1
answered on 28 May 2011, 04:49 AM
Hi all,
I have a work around of sorts for this problem.
Firstly to recap; it seems that horizontal borders are rendered differently depending on whether the textbox has one or more vertical borders. When exported to PDF this displays as thinner lines if there are no vertical borders (yes lines print OK and yes they appear OK at >300% and yes they appear OK if you turn off the Acrobat "Enhance thin lines" setting). In our situation we are emailing the PDF to suppliers and are not about to explain to all of them that they need to mess with the Acrobat settings. See attached image "Textbox Borders 1 - Problem.png" for a view of the problem.
My work around for this problem is to add ONE White Vertical border to each of the affected text boxes. See attached image "Textbox Borders 2 - Solved.png" for a view of the solution.
I have empahised ONE border because I found that adding two would take a nick out of the horizontal border where the vertical intersected it. See attached image "Textbox Borders 3 - Nick in Horizontal.png" for a view of this problem.
Even with only one white vertical border, if you view the PDF at 1600% you will see a small nick in the horizontal line, but this is not visible at 100% or on the printout. See attached image "Textbox Borders 4 - Solved 1600.png" for a view of this.
I hope this helps anyone having the same problems.
Regards
Mike
I have a work around of sorts for this problem.
Firstly to recap; it seems that horizontal borders are rendered differently depending on whether the textbox has one or more vertical borders. When exported to PDF this displays as thinner lines if there are no vertical borders (yes lines print OK and yes they appear OK at >300% and yes they appear OK if you turn off the Acrobat "Enhance thin lines" setting). In our situation we are emailing the PDF to suppliers and are not about to explain to all of them that they need to mess with the Acrobat settings. See attached image "Textbox Borders 1 - Problem.png" for a view of the problem.
My work around for this problem is to add ONE White Vertical border to each of the affected text boxes. See attached image "Textbox Borders 2 - Solved.png" for a view of the solution.

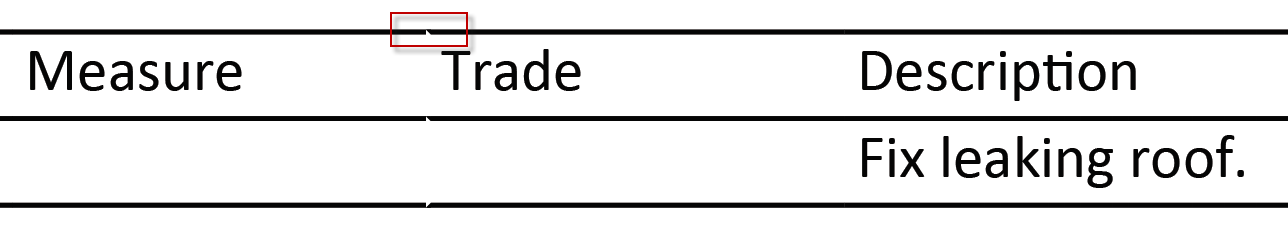

I have empahised ONE border because I found that adding two would take a nick out of the horizontal border where the vertical intersected it. See attached image "Textbox Borders 3 - Nick in Horizontal.png" for a view of this problem.

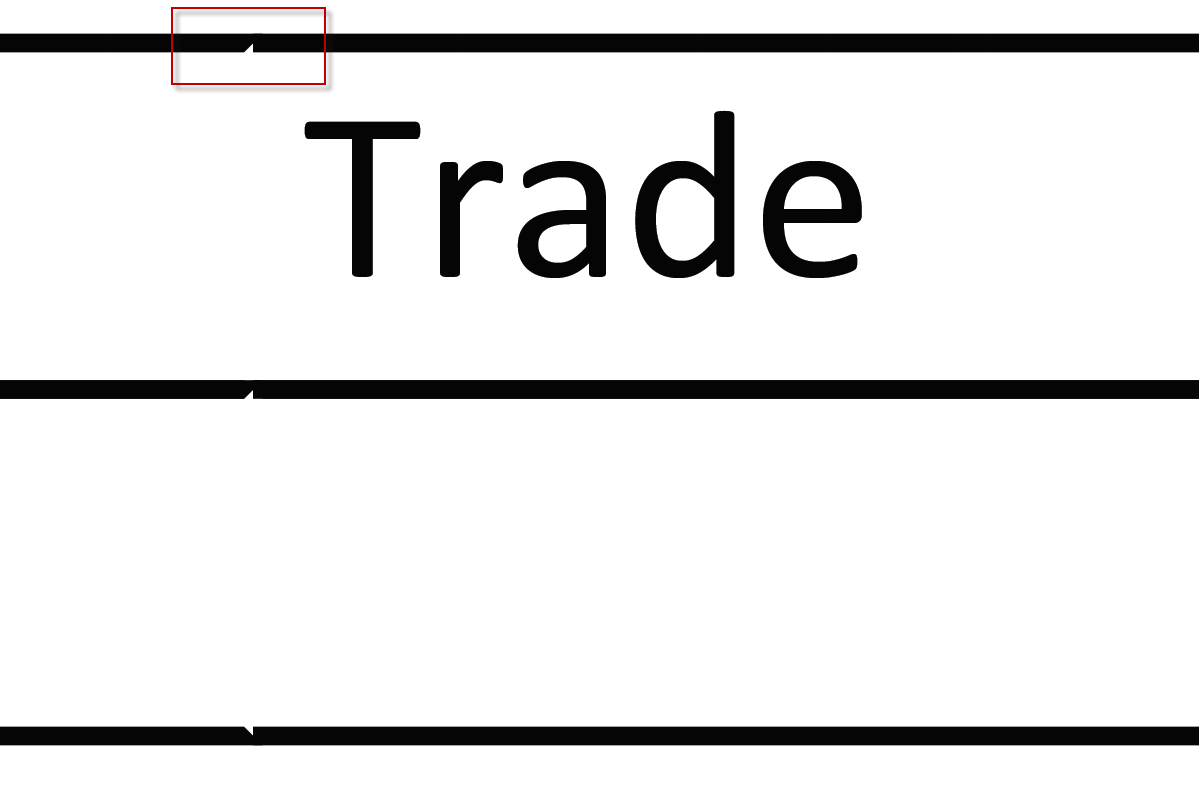

Even with only one white vertical border, if you view the PDF at 1600% you will see a small nick in the horizontal line, but this is not visible at 100% or on the printout. See attached image "Textbox Borders 4 - Solved 1600.png" for a view of this.
I hope this helps anyone having the same problems.
Regards
Mike
0
Nilima
Top achievements
Rank 1
Rank 1
answered on 23 Jan 2018, 03:31 PM

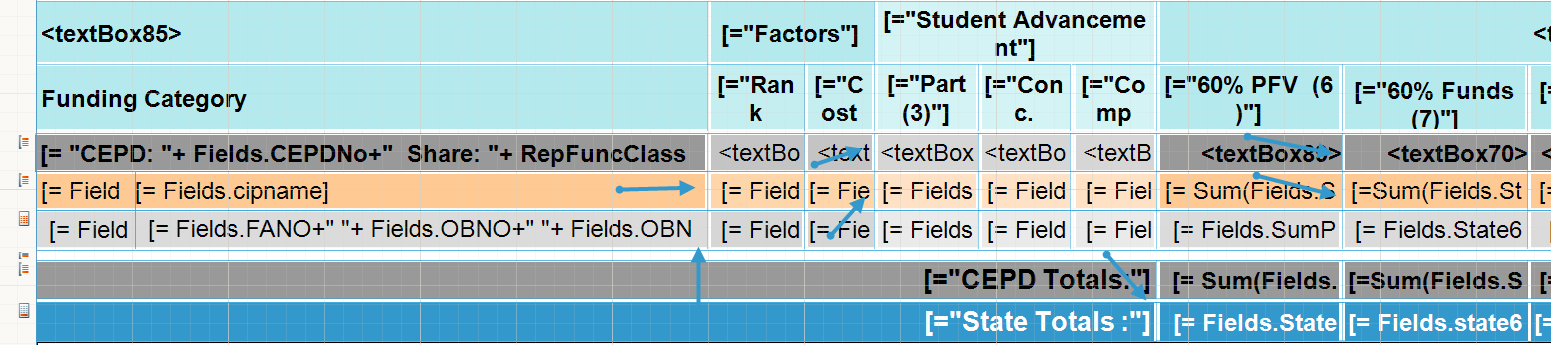

I'm having problems with the Telerik borders. I applied a 2 px white border on the left of ever cell. But I still get some thin borders and some thick. In Telerik itself. Please see the attached screenshot. Please let me know how I can get a consistent thickness. Thank you.
