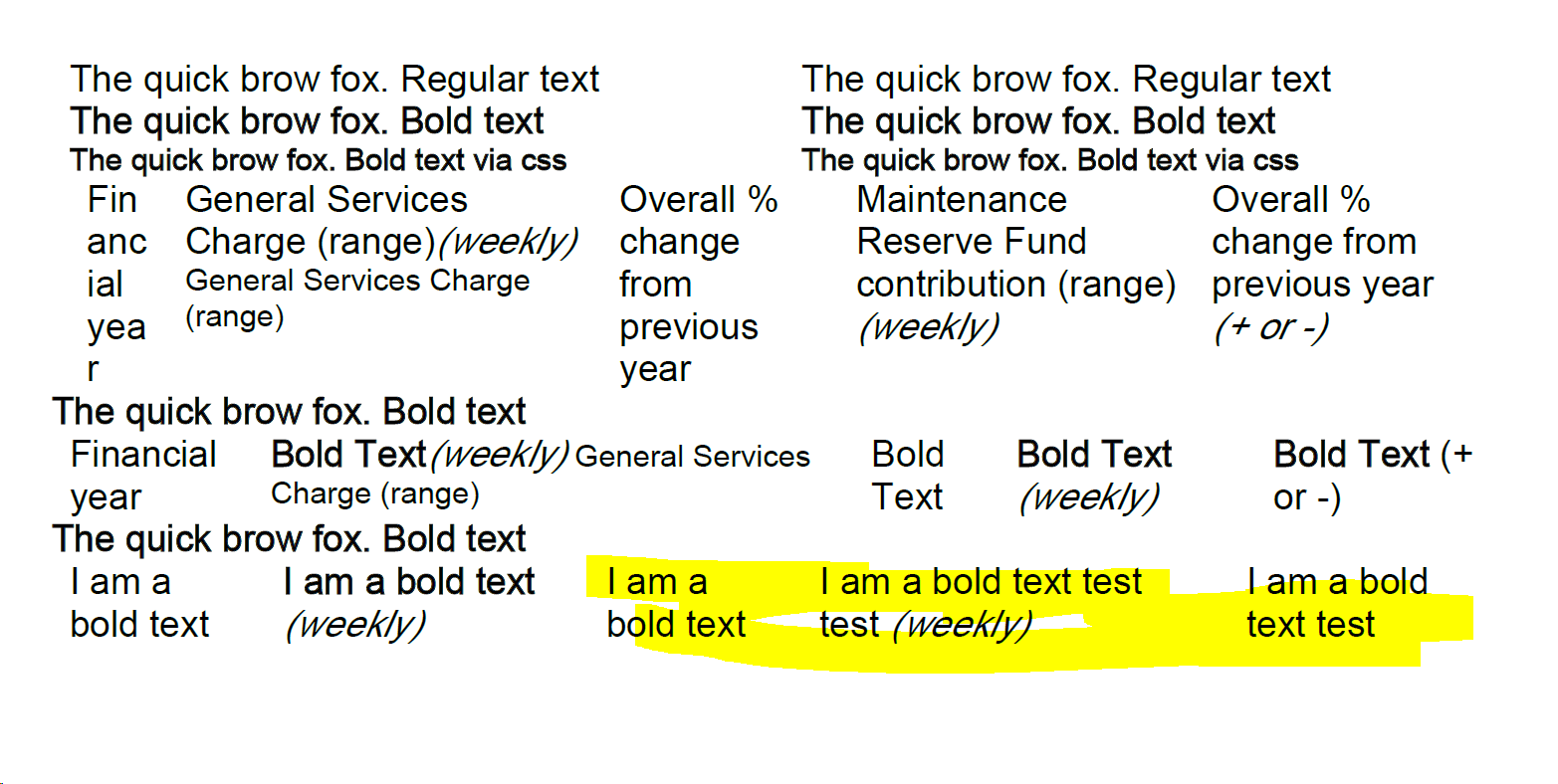

I am trying to convert HTML to a PDF document with 0.25" margins. The left and right margins are being set correctly, but the top and bottom margins remain 0.5".  My code is below, a screenshot of the generated PDF is attached.

                StringBuilder sb = new StringBuilder();

                foreach (string row in data)
                    sb.AppendLine(row);

                HtmlFormatProvider provider = new HtmlFormatProvider();
                RadFlowDocument html = provider.Import(sb.ToString());

                foreach (Section section in html.Sections)
                {
                    section.PageMargins = new Telerik.Windows.Documents.Primitives.Padding(24, 24, 24, 24);

                    // Code snippet from function that adds header inserted below

                    Header header = section.Headers.Add();
                    Table table = header.Blocks.AddTable();
                    Border border = new Border(1, BorderStyle.Single, new ThemableColor(Colors.Black));
                    table.Borders = new TableBorders(border);

                    TableRow row1 = table.Rows.AddTableRow();
                    row1.Height = new TableRowHeight(HeightType.Exact, 30);

                    TableCell Title = row1.Cells.AddTableCell();
                    Paragraph pTitle = Title.Blocks.AddParagraph();
                    Run rTitle = pTitle.Inlines.AddRun(FormName);
                    Title.PreferredWidth = Inches(3.99);
                    Title.Shading.BackgroundColor = gray;
                    Title.VerticalAlignment = VerticalAlignment.Center;
                    rTitle.FontWeight = FontWeights.Bold;
                    rTitle.FontSize = 16;

                    // Call to similar code for adding footer

                }

                PdfFormatProvider pdf = new PdfFormatProvider();
                return pdf.Export(html);



Thanks in advance for the help.

Darwin Pinder

Hi,

we have editable PDFs which are stored in a database. We used to be able to pull the PDFs, import them through the Telerik.Windows.Documents.Fixed.FormatProviders.Pdf.PdfFormatProvider to get a RadFixedDocument, iterate through the fields of this document and fill them with data. Afterwards, we exported the PDF through the PdfFormatProvider and wrote them to a file. This gave us the original PDF but filled with the required data.

This does not work anymore, as the resulting exported PDF is visually broken. We have no clue why that happens, maybe you can help us fix this.

I attached a small sample project with our work flow including one of the PDFs we try to fill out and the resulting PDF for you to analyze.

Thanks a lot in advance.

Hi,

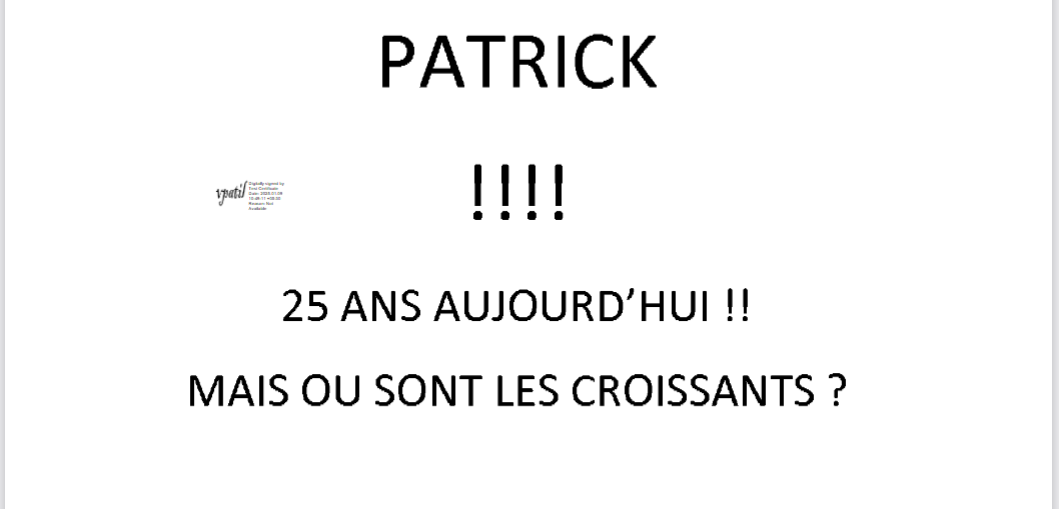

i have added and image and some text inside the digital signature and and set them inside properly but when i set the position of the signature field before the signature field like i was showing in below screenshot

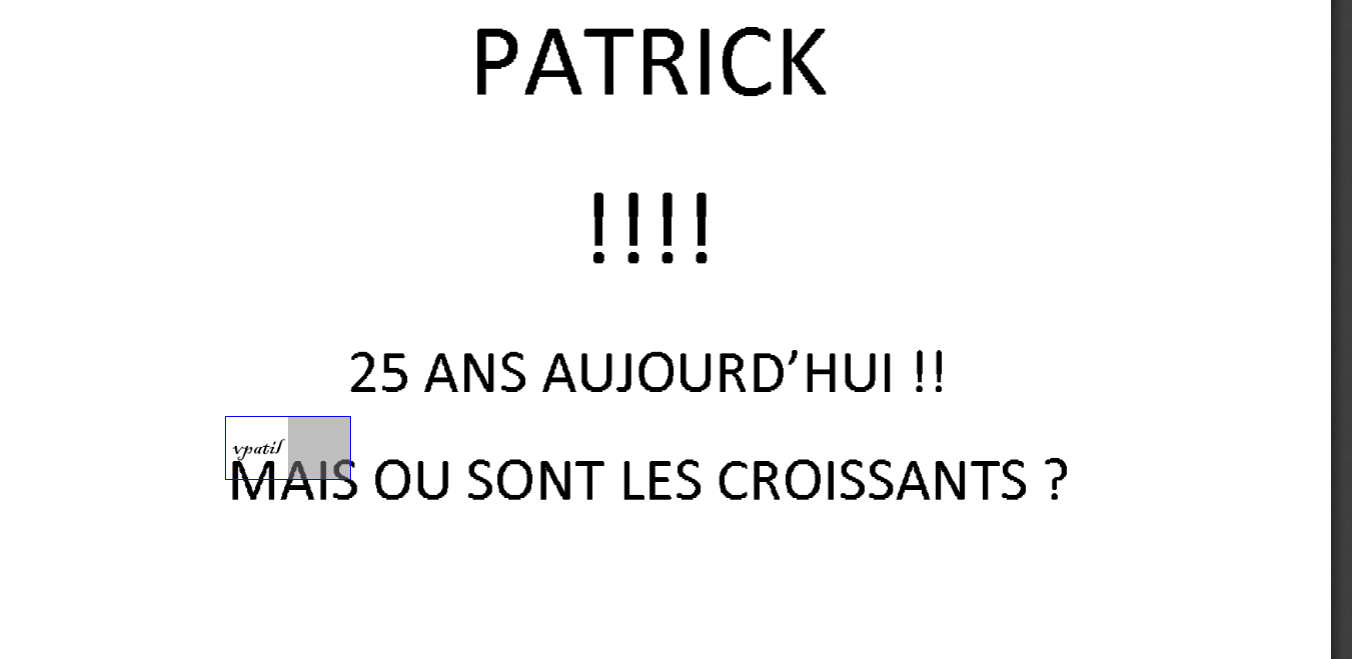

above screenshot i have added the signature field placed the top of the Letter M but when i validate the signature manually but in output the signature field position is not correct as i set the above screenshot below is the screenshot that you can check the position of the signature field

i don't know whats strange can anyone help me this to get it out

i am getting the Telerik.Windows.Documents.Fixed.Exceptions.NotSupportedImageFormatException: 'Not supported image format.'  this exception in below code can anyone have a solution for that


// Load the existing PDF from the byte array using PdfFormatProvider
using (MemoryStream inputStream = new MemoryStream(inDocByte))
{
    // Create PdfFormatProvider and load the existing document
    PdfFormatProvider provider = new PdfFormatProvider();
    RadFixedDocument document = provider.Import(inputStream);

    int pageNo = (signInfo.DigitalSignPage() == 0 ? 1 : document.Pages.Count);

    // Path to the image (ensure this is correct)
    System.Drawing.Image signatureImage = null;
    if (signInfo.DigitalSignMode() == 2 && HttpContext.Current.Session["imagesyncfusion"] != null)
    {
        signatureImage = (System.Drawing.Image)HttpContext.Current.Session["imagesyncfusion"];
    }
    // Check if digital signature is needed
    if (signInfo.UseDigitalSign())
    {
        if ((signInfo.DigitalSignMode() == 1) || (signInfo.DigitalSignMode() == 2))
        {
            double signaturePositionLeft = (double)signInfo.DigitalSignLeftInPoints();
            double signaturePositionTop = (double)signInfo.DigitalSignTopInPoints();
            double signatureFieldWidth = (double)signInfo.DigitalSignWidthInPoints();
            double signatureFieldHeight = (double)signInfo.DigitalSignHeightInPoints();
            RadFixedPage radFixedPage = document.Pages[pageNo - 1];

            if (!string.IsNullOrEmpty(customSignatureDetails))
            {
                // Movable signature case: Adjust the signature field based on custom details
                signatureFieldWidth = signaturePositionLeft + (double)signInfo.DigitalSignWidthInPoints();
                signatureFieldHeight = signaturePositionTop + (double)signInfo.DigitalSignHeightInPoints();

                string[] separator = new string[] { "!_!" };
                string[] offsetArray = customSignatureDetails.Split(separator, StringSplitOptions.RemoveEmptyEntries);

                if (offsetArray.Length >= 9)
                {
                    float offsetLeft = returnFloatWithCultureValue(offsetArray[0]);
                    float offsetTop = returnFloatWithCultureValue(offsetArray[1]);
                    float docHeight = returnFloatWithCultureValue(offsetArray[2]);
                    float greenDivHeight = returnFloatWithCultureValue(offsetArray[3]);
                    float greenDivWidth = returnFloatWithCultureValue(offsetArray[4]);
                    float dpi_x = returnFloatWithCultureValue(offsetArray[6]);
                    float dpi_y = returnFloatWithCultureValue(offsetArray[7]);
                    pageNo = int.Parse(offsetArray[8]);

                    // Calculate positions for drawing the text div;
                    signaturePositionLeft = (offsetLeft / dpi_x) * 72;
                    signaturePositionTop = (offsetTop / dpi_y) * 72;
                    signatureFieldWidth = (greenDivWidth / dpi_y) * 72;
                    signatureFieldHeight = (greenDivHeight / dpi_x) * 72;
                }
            }
            else
            {
                // Non-movable case: Place the signature field in a fixed location
                radFixedPage = document.Pages[pageNo - 1];
                Tuple<double, double> k = null;

                if (signatureImage != null)
                {
                    k = calculateAspectRatioFit(signatureImage.Width, signatureImage.Height, signatureFieldWidth, signatureFieldHeight);
                    signatureFieldWidth = k.Item1;
                    signatureFieldHeight = k.Item2;
                }

                signaturePositionLeft = radFixedPage.Size.Height - (double)(signatureFieldWidth + signatureFieldHeight + 1);
                signaturePositionTop = signaturePositionTop + 1; // +1 For border size
                                                                 //pdfForm.FormSource.Size = new Telerik.Documents.Primitives.Size(signatureFieldWidth, signatureFieldHeight);
            }

            // Create a new form to place the signature field
            Form pdfForm = new Form();
            pdfForm.FormSource = new FormSource();
            FixedContentEditor editor = new FixedContentEditor(pdfForm.FormSource);
            pdfForm.FormSource.Size = new Telerik.Documents.Primitives.Size(signatureFieldWidth, signatureFieldHeight);

            // Drawing the image at the starting position (left side of the signature field)
            imageWidth = signatureFieldWidth / 2;  // Half the width for the image
            double imageHeight = signatureFieldHeight;  // Use full height of the signature field

            if (signatureImage != null)
            {
                using (MemoryStream ms = new MemoryStream())
                {
                    signatureImage.Save(ms, signatureImage.RawFormat);
                    ms.Position = 0;
                    editor.DrawImage(ms, new Telerik.Documents.Primitives.Size(imageWidth, imageHeight));
                }
            }

            // Prepare text to draw beside the signature image
            string textToDraw = $"Digitally signed by {certificate.FriendlyName} \nDate: {DateTime.Now:yyyy.MM.dd HH:mm:ss zzz} \nReason: {pdfSignature.Signature.Properties.Reason} \nLocation: {pdfSignature.Signature.Properties.Location}";

            // Set text width and calculate font size
            double textWidth = signatureFieldWidth - imageWidth;
            double fontSize = CalculateFontSize(signatureFieldWidth - 23, signatureFieldHeight, textToDraw);

            // Define the position for the text and draw it
            Telerik.Windows.Documents.Fixed.Model.Editing.Block textBlock = new Telerik.Windows.Documents.Fixed.Model.Editing.Block();
            double textPositionLeft = signaturePositionLeft;  // Adding a 5px gap after the image
            textBlock.TextProperties.FontSize = fontSize;
            textBlock.InsertText($"Digitally signed by {certificate.FriendlyName}");
            textBlock.InsertText($" Date: {DateTime.Now:yyyy.MM.dd HH:mm:ss zzz}");
            textBlock.InsertText($" Reason: {pdfSignature.Signature.Properties.Reason}");
            textBlock.InsertText($" Location: {pdfSignature.Signature.Properties.Location}");

            Rect boundingRect;
            if (signatureImage != null)
            {
                boundingRect = new Rect(imageWidth, 5, textWidth, signatureFieldHeight);
            }
            else
            {
                boundingRect = new Rect(textPositionLeft, 5, textWidth, signatureFieldHeight);
            }
            textBlock.Draw(editor, boundingRect);
            //editor.DrawBlock(textBlock);
            // Create the SignatureWidget and position it on the PDF page
            SignatureWidget signatureWidget = pdfSignature.Widgets.AddWidget();
            signatureWidget.Content.NormalContentSource = pdfForm.FormSource;
            signatureWidget.Rect = new Rect(signaturePositionLeft, 0, signatureFieldWidth, signatureFieldHeight);
            signatureWidget.RecalculateContent();

            // Add signature widget to the page and draw the content
            RadFixedPage pdfPage = document.Pages[pageNo - 1];
            FixedContentEditor pageEditor = new FixedContentEditor(pdfPage);
            pageEditor.Position.Translate(signaturePositionLeft , signaturePositionTop + 258.3824795800782);
            pageEditor.DrawForm(pdfForm.FormSource);

            // Add the signature field to the document's AcroForm
            document.AcroForm.FormFields.Add(pdfSignature);

        }

    }
    // Export the document to a byte array and return
    using (MemoryStream memoryStream = new MemoryStream())
    {

        Telerik.Documents.ImageUtils.ImagePropertiesResolver defaultImagePropertiesResolver = new Telerik.Documents.ImageUtils.ImagePropertiesResolver();
        Telerik.Windows.Documents.Extensibility.FixedExtensibilityManager.ImagePropertiesResolver = defaultImagePropertiesResolver;
        PdfExportSettings settings = new PdfExportSettings() { ImageQuality = ImageQuality.High };
        //PdfFormatProvider provider = new PdfFormatProvider();
        provider.ExportSettings = settings;
        provider.Export(document, memoryStream);
        outDocPdf = memoryStream.ToArray();
    }

Hello,

I've been using Telerik.Web.Pdf to automate filling in the following EPA form from their website: EPA Form 3540-1- Notice of Arrival of Pesticides and Devices | US EPA

This has worked well until the 2024.4.1112 update.  Now using the standard import method:

I get a Telerik.Windows.Docments.Fixed.Exceptions.NotSupportedActionException, with message "Action is not supported: Named"

I don't see any PDFImportSettings I can play with to possibly disable (Javascript?) and process as with the .3.806 version.  Are there any suggestions for me to try?

public static void SignPDFSynfusion(SignatureInfo signInfo, byte[] inDocByte, Cert objCert, string customSignatureDetails, out byte[] outDocPdf)
{
    // Dimensions and positions for the signature field
    double signatureFieldWidth; // Width of the signature field
    double signatureFieldHeight;
    double signaturePositionLeft;
    double signaturePositionTop;

    // Getting TimeStamp Details from Database..
    TimeStampSettings objTimeStampSettings = new TimeStampSettings();
    TimeStampInfo objTimeStampInfo = (TimeStampInfo)objTimeStampSettings.GetTimeStamp();
    PfxSettings objPfxSettings = new PfxSettings();

    // Params to take account in the input
    bool displaySignature = Convert.ToBoolean(HttpContext.Current.Session["showSign"]);

    bool needTimeStamp = false;
    string TsaServerUrl = "";
    string TsaServerUser = "";
    string TsaServerPassword = "";
    string strPasswrd = string.Empty;
    double imageWidth = 0;

    if (objTimeStampInfo != null)
    {
        needTimeStamp = (bool)objTimeStampInfo.TimeStampNeeded;
        TsaServerUrl = objTimeStampInfo.TimeStampUrl;

        if ((bool)objTimeStampInfo.AuthNeeded)
        {
            TsaServerUser = objTimeStampInfo.UserName;
            strPasswrd = SecurQueryString.decryptQueryString(objTimeStampInfo.Password);
            TsaServerPassword = strPasswrd;
        }
    }
    // Load the certificate
    X509Certificate2 certificate = new X509Certificate2(objCert.CertArray, objCert.Password);

    // Create a SignatureField and assign the digital signature to it
    SignatureField pdfSignature = new SignatureField("SignatureField");
    pdfSignature.Signature = new Telerik.Windows.Documents.Fixed.Model.DigitalSignatures.Signature(certificate);

    // Set signature details
    string strNotAvailable = HttpContext.GetGlobalResourceObject("GlobalResources", "lblNotAvlbl").ToString();
    pdfSignature.Signature.Properties.Reason = strNotAvailable;
    pdfSignature.Signature.Properties.ContactInfo = strNotAvailable;
    pdfSignature.Signature.Properties.Location = strNotAvailable;

    // Create a new form to place the signature field
    Form pdfForm = new Form();
    pdfForm.FormSource = new FormSource();

    // Load the existing PDF from the byte array using PdfFormatProvider
    using (MemoryStream inputStream = new MemoryStream(inDocByte))
    {
        // Create PdfFormatProvider and load the existing document
        PdfFormatProvider provider = new PdfFormatProvider();
        RadFixedDocument document = provider.Import(inputStream);

        int pageNo = (signInfo.DigitalSignPage() == 0 ? 1 : document.Pages.Count);
        try
        {
            if (needTimeStamp)
            {
                //.TimeStampServer = new TimeStampServer(new Uri(TsaServerUrl), TsaServerUser, TsaServerPassword);
            }
        }
        catch (Exception ex)
        { }

        // Path to the image (ensure this is correct)
        System.Drawing.Image signatureImage = null;
        if (signInfo.DigitalSignMode() == 2 && HttpContext.Current.Session["imagesyncfusion"] != null)
        {
            signatureImage = (System.Drawing.Image)HttpContext.Current.Session["imagesyncfusion"];
        }
        //var signatureImage = (System.Drawing.Image)HttpContext.Current.Session["imagesyncfusion"];

        if (signInfo.UseDigitalSign())
        {
            if ((signInfo.DigitalSignMode() == 1) || (signInfo.DigitalSignMode() == 2))
            {
                signaturePositionLeft = (double)signInfo.DigitalSignLeftInPoints();
                signaturePositionTop = (double)signInfo.DigitalSignTopInPoints();
                signatureFieldWidth = (double)signInfo.DigitalSignWidthInPoints();
                signatureFieldHeight = (double)signInfo.DigitalSignHeightInPoints();
                RadFixedPage radFixedPage = document.Pages[pageNo - 1];
                if (!string.IsNullOrEmpty(customSignatureDetails))
                {
                    //Movable case:
                    signatureFieldWidth = signaturePositionLeft + (double)signInfo.DigitalSignWidthInPoints();
                    signatureFieldHeight = signaturePositionTop + (double)signInfo.DigitalSignHeightInPoints();

                    string[] separator = new string[] { "!_!" };
                    string[] offsetArray = customSignatureDetails.Split(separator, StringSplitOptions.RemoveEmptyEntries);

                    if (offsetArray.Length >= 9)
                    {
                        float offsetLeft = returnFloatWithCultureValue(offsetArray[0]);
                        float offsetTop = returnFloatWithCultureValue(offsetArray[1]);
                        float docHeight = returnFloatWithCultureValue(offsetArray[2]);
                        float greenDivHeight = returnFloatWithCultureValue(offsetArray[3]);
                        float greenDivWidth = returnFloatWithCultureValue(offsetArray[4]);
                        float dpi_x = returnFloatWithCultureValue(offsetArray[6]);
                        float dpi_y = returnFloatWithCultureValue(offsetArray[7]);
                        pageNo = int.Parse(offsetArray[8]);

                        // Calculate positions for drawing the text div;
                        signaturePositionLeft = (offsetLeft / dpi_x) * 72;
                        signaturePositionTop = (offsetTop / dpi_y) * 72;
                        signatureFieldWidth = (greenDivWidth / dpi_y) * 72;
                        signatureFieldHeight = (greenDivHeight / dpi_x) * 72;

                        pdfForm.FormSource.Size = new Telerik.Documents.Primitives.Size(signatureFieldWidth, signatureFieldHeight);

                    }
                }
                else
                {
                    //Non-movable case:
                    radFixedPage = document.Pages[pageNo - 1];
                    Tuple<double, double> k = null;

                    if (signatureImage != null)
                    {
                        k = calculateAspectRatioFit(signatureImage.Width, signatureImage.Height, signatureFieldWidth, signatureFieldHeight);
                        signatureFieldWidth = k.Item1;
                        signatureFieldHeight = k.Item2;
                    }

                    signaturePositionLeft = radFixedPage.Size.Height - (double)(signatureFieldWidth + signatureFieldHeight + 1);
                    signaturePositionTop = signaturePositionTop + 1; // +1 For border size
                    pdfForm.FormSource.Size = new Telerik.Documents.Primitives.Size(signatureFieldWidth, signatureFieldHeight);
                }
                FixedContentEditor editor = new FixedContentEditor(pdfForm.FormSource);
                // Drawing the image at the starting position (left side of the signature field)
                imageWidth = signatureFieldWidth / 2;  // Half the width for the image
                double imageHeight = signatureFieldHeight;  // Use full height of the signature field

                if (signatureImage == null)
                {

                }
                else
                {
                    // Create a memory stream to hold the image
                    using (MemoryStream ms = new MemoryStream())
                    {
                        // Save the image to the memory stream
                        signatureImage.Save(ms, signatureImage.RawFormat);

                        // Reset the stream position to the beginning
                        ms.Position = 0;

                        // Pass the memory stream to the DrawImage method
                        editor.DrawImage(ms, new Telerik.Documents.Primitives.Size(imageWidth, imageHeight));
                    }
                }
                string textToDraw = $"Digitally signed by {certificate.FriendlyName} \nDate: {DateTime.Now.ToString("yyyy.MM.dd HH:mm:ss zzz")} \nReason: {pdfSignature.Signature.Properties.Reason} \nLocation: {pdfSignature.Signature.Properties.Location}";
                // Set the width of the text area (remaining space after the image)
                double textWidth = signatureFieldWidth - imageWidth;
                double dsd = CalculateFontSize(textWidth, signatureFieldHeight, textToDraw);

                // Now, draw the text next to the image (on the right side), within the remaining space
                Telerik.Windows.Documents.Fixed.Model.Editing.Block textBlock = new Telerik.Windows.Documents.Fixed.Model.Editing.Block();
                double textPositionLeft = signaturePositionLeft + imageWidth;  // Adding a 5px gap after the image
                textBlock.TextProperties.FontSize = 8;
                textBlock.InsertText($"Digitally signed by {certificate.FriendlyName}");
                textBlock.InsertText($" Date: {DateTime.Now.ToString("yyyy.MM.dd HH:mm:ss zzz")}");
                textBlock.InsertText($" Reason: {pdfSignature.Signature.Properties.Reason}");
                textBlock.InsertText($" Location: {pdfSignature.Signature.Properties.Location}");
                Rect boundingRect = new Rect(textPositionLeft - 8, signaturePositionTop - 12, textWidth, signatureFieldHeight);
                textBlock.Draw(editor, boundingRect);

                // Create the SignatureWidget and position it on the PDF page
                SignatureWidget signatureWidget = pdfSignature.Widgets.AddWidget();
                signatureWidget.Content.NormalContentSource = pdfForm.FormSource;
                signatureWidget.Rect = new Rect(signaturePositionLeft, signaturePositionTop, signatureFieldWidth, signatureFieldHeight);
                signatureWidget.RecalculateContent();

                // Add content from the form to the page at the specified position
                RadFixedPage pdfPage = document.Pages[0];  // Assuming you're adding it to the first page
                FixedContentEditor pageEditor = new FixedContentEditor(pdfPage);
                pageEditor.Position.Translate(signaturePositionLeft, signaturePositionTop);
                pageEditor.DrawForm(pdfForm.FormSource);

                // Add the signature field to the document's AcroForm
                document.AcroForm.FormFields.Add(pdfSignature);
            }
        }

        // Use MemoryStream to capture the PDF output and return as a byte array
        using (MemoryStream memoryStream = new MemoryStream())
        {
            // Export the document to the memory stream as a PDF
            Telerik.Documents.ImageUtils.ImagePropertiesResolver defaultImagePropertiesResolver = new Telerik.Documents.ImageUtils.ImagePropertiesResolver();
            Telerik.Windows.Documents.Extensibility.FixedExtensibilityManager.ImagePropertiesResolver = defaultImagePropertiesResolver;
            var settings = new PdfExportSettings();
            settings.ImageQuality = ImageQuality.High;
            provider.ExportSettings = settings;
            provider.Export(document, memoryStream);
            // Return the byte array of the PDF
            outDocPdf = memoryStream.ToArray();
            //return memoryStream.ToArray(); // Return the byte array of the signed PDF
        }
    }
}
       private static double CalculateFontSize(double textWidth, double signatureFieldHeight, string text)
       {
           // Start with a base font size for better precision
           double baseFontSize = 12.0;  // Starting font size

           // Calculate width scale factor to adjust the font size based on text length
           double widthScaleFactor = textWidth / text.Length;
           double widthFontSize = baseFontSize * widthScaleFactor;

           // Calculate height scale factor to adjust the font size based on the number of lines
           int numLines = text.Split('\n').Length;
           double heightScaleFactor = signatureFieldHeight / (numLines * baseFontSize);
           double heightFontSize = baseFontSize * heightScaleFactor;

           // Return the smaller font size to fit both dimensions
           return Math.Min(widthFontSize, heightFontSize);
       }

       public static Tuple<double, double> calculateAspectRatioFit(double srcWidth, double srcHeight, double maxWidth, double maxHeight)
       {
           var ratio = Math.Min(maxWidth / srcWidth, maxHeight / srcHeight);
           return new Tuple<double, double>(srcWidth * ratio, srcHeight * ratio);
       }

firstly loading the document i have use
  // Load the PDF document
  var provider = new PdfFormatProvider();
  var loadedDocument = provider.Import(inDocByte,null);

and after some functinality to export the document i have used below

 Telerik.Documents.ImageUtils.ImagePropertiesResolver defaultImagePropertiesResolver = new Telerik.Documents.ImageUtils.ImagePropertiesResolver();
 Telerik.Windows.Documents.Extensibility.FixedExtensibilityManager.ImagePropertiesResolver = defaultImagePropertiesResolver;
 provider.Export(document, memoryStream, null);
 outDocPdf = memoryStream.ToArray();

what was the problem can you tell me the solution for that exception

Unable to cast object of type 'Telerik.Windows.Documents.Fixed.FormatProviders.Pdf.Model.Types.PdfLiteralString' to type 'Telerik.Windows.Documents.Fixed.FormatProviders.Pdf.Model.Types.PdfName'.

the below method i got the exception i don't know what's wrong  can  anyone tell me
the exception is occurred in below line
  // Create PdfFormatProvider and load the existing document
 PdfFormatProvider pdfFormatProvider = new PdfFormatProvider();
 RadFixedDocument document = pdfFormatProvider.Import(inputStream);


static byte[] GenerateSignedPdf(Cert objCert, byte[] inDocByte)
{
    // Dimensions and positions for the signature field
    int signatureFieldWidth = 200; // Width of the signature field
    int signatureFieldHeight = 50;
    int signaturePositionLeft = 10;
    int signaturePositionTop = 10;

    // Load the certificate
    X509Certificate2 certificate = new X509Certificate2(objCert.CertArray, objCert.Password);

    // Create a SignatureField and assign the digital signature to it
    SignatureField pdfSignature = new SignatureField("SignatureField");
    pdfSignature.Signature = new Telerik.Windows.Documents.Fixed.Model.DigitalSignatures.Signature(certificate);

    // Set signature details
    string strNotAvailable = HttpContext.GetGlobalResourceObject("GlobalResources", "lblNotAvlbl").ToString();
    pdfSignature.Signature.Properties.Reason = strNotAvailable;
    pdfSignature.Signature.Properties.ContactInfo = strNotAvailable;
    pdfSignature.Signature.Properties.Location = strNotAvailable;

    // Load the existing PDF from the byte array using PdfFormatProvider
    using (MemoryStream inputStream = new MemoryStream(inDocByte))
    {
        // Create PdfFormatProvider and load the existing document
        PdfFormatProvider pdfFormatProvider = new PdfFormatProvider();
        RadFixedDocument document = pdfFormatProvider.Import(inputStream);

        // Create a new form to place the signature field
        Form pdfForm = new Form();
        pdfForm.FormSource = new FormSource();
        pdfForm.FormSource.Size = new Telerik.Documents.Primitives.Size(signatureFieldWidth, signatureFieldHeight);
        FixedContentEditor editor = new FixedContentEditor(pdfForm.FormSource);

        // Path to the image (ensure this is correct)
        var signatureImage = (System.Drawing.Image)HttpContext.Current.Session["imagesyncfusion"];

        // Drawing the image at the starting position (left side of the signature field)
        int imageWidth = signatureFieldWidth / 2;  // Half the width for the image
        int imageHeight = signatureFieldHeight;  // Use full height of the signature field

        // Create a memory stream to hold the image
        using (MemoryStream ms = new MemoryStream())
        {
            // Save the image to the memory stream
            signatureImage.Save(ms, signatureImage.RawFormat);

            // Reset the stream position to the beginning
            ms.Position = 0;

            // Pass the memory stream to the DrawImage method
            editor.DrawImage(ms, new Telerik.Documents.Primitives.Size(imageWidth, imageHeight));
        }

        string textToDraw = $"Digitally signed by {certificate.FriendlyName} \nDate: {DateTime.Now.ToString("yyyy.MM.dd HH:mm:ss zzz")} \nReason: {pdfSignature.Signature.Properties.Reason} \nLocation: {pdfSignature.Signature.Properties.Location}";
        // Set the width of the text area (remaining space after the image)
        int textWidth = signatureFieldWidth - imageWidth;
        double dsd = CalculateFontSize(textWidth - 23, signatureFieldHeight, textToDraw);

        // Now, draw the text next to the image (on the right side), within the remaining space
        Telerik.Windows.Documents.Fixed.Model.Editing.Block textBlock = new Telerik.Windows.Documents.Fixed.Model.Editing.Block();
        int textPositionLeft = signaturePositionLeft + imageWidth;  // Adding a 5px gap after the image
        textBlock.TextProperties.FontSize = dsd;
        textBlock.InsertText($"Digitally signed by {certificate.FriendlyName}");
        textBlock.InsertText($" Date: {DateTime.Now.ToString("yyyy.MM.dd HH:mm:ss zzz")}");
        textBlock.InsertText($" Reason: {pdfSignature.Signature.Properties.Reason}");
        textBlock.InsertText($" Location: {pdfSignature.Signature.Properties.Location}");
        Rect boundingRect = new Rect(textPositionLeft - 8, signaturePositionTop - 12, textWidth, signatureFieldHeight);
        textBlock.Draw(editor, boundingRect);

        // Create the SignatureWidget and position it on the PDF page
        SignatureWidget signatureWidget = pdfSignature.Widgets.AddWidget();
        signatureWidget.Content.NormalContentSource = pdfForm.FormSource;
        signatureWidget.Rect = new Rect(signaturePositionLeft, signaturePositionTop, signatureFieldWidth, signatureFieldHeight);
        signatureWidget.RecalculateContent();

        // Add content from the form to the page at the specified position
        RadFixedPage pdfPage = document.Pages[0];  // Assuming you're adding it to the first page
        FixedContentEditor pageEditor = new FixedContentEditor(pdfPage);
        pageEditor.Position.Translate(signaturePositionLeft, signaturePositionTop);
        pageEditor.DrawForm(pdfForm.FormSource);

        // Add the signature field to the document's AcroForm
        document.AcroForm.FormFields.Add(pdfSignature);

        // Use MemoryStream to capture the PDF output and return as a byte array
        using (MemoryStream memoryStream = new MemoryStream())
        {
            // Export the document to the memory stream as a PDF
            pdfFormatProvider.Export(document, memoryStream);
            return memoryStream.ToArray(); // Return the byte array of the signed PDF
        }
    }
}

If you reference the Telerik.Reporting and Telerik.Documents.Flow packages, you cannot use the Telerik.Documents.Core.Fonts.Fontfamily. Reports that it exists in both the packages. Even when aliasing or fully qualifying, it reports the same message that FontWeights and FontFamily exists in both the packages.

Hi,

1) i want to add and image and text in the signature field with specified size and i want to do that in the existing pdf with signature field ?
2) how to add any type of image [jpg, jpeg , png, etc.] in extsting pdf
 static byte[] GenerateSignedPdf(Cert objCert)
 {
     // Dimensions and positions for the signature field
     int signatureFieldWidth = 200;
     int signatureFieldHeight = 50;
     int signaturePositionLeft = 10;
     int signaturePositionTop = 10;

     // Load the certificate
     X509Certificate2 certificate = new X509Certificate2(objCert.CertArray, objCert.Password);

     // Create a SignatureField and assign the digital signature to it
     SignatureField pdfSignature = new SignatureField("SignatureField");
     pdfSignature.Signature = new Telerik.Windows.Documents.Fixed.Model.DigitalSignatures.Signature(certificate);

     // Create a new form to place the signature field
     Form pdfForm = new Form();
     pdfForm.FormSource = new FormSource();
     pdfForm.FormSource.Size = new Telerik.Documents.Primitives.Size(signatureFieldWidth, signatureFieldHeight);
     FixedContentEditor editor = new FixedContentEditor(pdfForm.FormSource);

     // Draw the text with certificate holder's name and current date
     string textToDraw = $"{certificate.GetNameInfo(X509NameType.SimpleName, false)} {DateTime.Now:yyyy.MM.dd HH:mm}";
     editor.DrawText(textToDraw, new Telerik.Documents.Primitives.Size(5, 5)); // Adjust position as needed

     // Path to the image (ensure this is correct)
     string imagePath = "C:/Vaibhav/ProjectVaibhav/PdfProcessing_InsertImageInExistingPdf/image.png"; // Change path as needed

     // Ensure the image exists and can be accessed
     if (File.Exists(imagePath))
     {
         using (var imageStream = new FileStream(imagePath, FileMode.Open, FileAccess.Read))
         {
             var imageSource = new ImageSource(imageStream);
             editor.DrawImage(imageSource, new Telerik.Documents.Primitives.Size(100, 50)); // Adjust image size and position as needed
         }
     }
     else
     {
         throw new FileNotFoundException("Image file not found at: " + imagePath);
     }

     // Create the SignatureWidget and position it on the PDF page
     SignatureWidget signatureWidget = pdfSignature.Widgets.AddWidget();
     signatureWidget.Content.NormalContentSource = pdfForm.FormSource;
     signatureWidget.Rect = new Rect(signaturePositionLeft, signaturePositionTop, signatureFieldWidth, signatureFieldHeight);
     signatureWidget.RecalculateContent();

     // Create a RadFixedDocument and add a page
     RadFixedDocument document = new RadFixedDocument();
     RadFixedPage pdfPage = document.Pages.AddPage();
     pdfPage.Annotations.Add(signatureWidget);

     // Add content from the form to the page at the specified position
     FixedContentEditor pageEditor = new FixedContentEditor(pdfPage);
     pageEditor.Position.Translate(signaturePositionLeft, signaturePositionTop);
     pageEditor.DrawForm(pdfForm.FormSource);

     // Add the signature field to the document's AcroForm
     document.AcroForm.FormFields.Add(pdfSignature);

     // Use MemoryStream to capture the PDF output and return as a byte array
     using (MemoryStream memoryStream = new MemoryStream())
     {
         var pdfFormatProvider = new PdfFormatProvider();
         pdfFormatProvider.Export(document, memoryStream);
         return memoryStream.ToArray(); // Return the byte array of the PDF
     }
 }
