Background Color or Shading in Header?

[Darwin]

I am trying to programmatically reproduce a header, and nothing I've tried will add a background color or shading.  How do you format a table in a header?

HtmlFormatProvider provider = new HtmlFormatProvider();
RadFlowDocument html = provider.Import(sb.ToString());
Section section = html.Sections[0];
section.PageMargins = new Telerik.Windows.Documents.Primitives.Padding(24);
ThemableColor gray = new ThemableColor(new System.Windows.Media.Color {R = 220, G = 220, B = 220});

Header header = section.Headers.Add();
Table table = header.Blocks.AddTable();
TableRow row1 = table.Rows.AddTableRow();
TableCell Title = row1.Cells.AddTableCell();
TableCell Version = row1.Cells.AddTableCell();

Title.PreferredWidth = new TableWidthUnit(384);
Title.Shading.BackgroundColor = gray;
Title.Blocks.AddParagraph().Inlines.AddRun("Executive Summary");

Version.PreferredWidth = new TableWidthUnit(384);
Version.Shading.BackgroundColor = gray;
Version.Blocks.AddParagraph().Inlines.AddRun("Version Name:");

TableRow row2 = table.Rows.AddTableRow();
TableCell Incident = row2.Cells.AddTableCell();
TableCell Period = row2.Cells.AddTableCell();

Incident.Blocks.AddParagraph().Inlines.AddRun("Incident:");
Period.Blocks.AddParagraph().Inlines.AddRun("Period:");

PdfFormatProvider pdf = new PdfFormatProvider();

return pdf.Export(html);

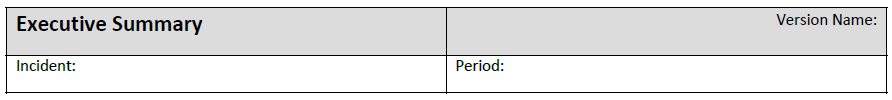

The attached Header.png is an example of what I'm trying to reproduce.

[Yoan]

Hello Darwin,

To achieve the desired results you must make the following changes/implementations:

ThemableColor gray = new ThemableColor(Color.FromRgb(220, 220, 220));

Border tableBorder = new Border(1,BorderStyle.Single, new ThemableColor(Colors.Black));
table.Borders = new TableBorders(tableBorder);

Paragraph versionParagraph = Version.Blocks.AddParagraph();
versionParagraph.Inlines.AddRun("Version Name:");
versionParagraph.TextAlignment = Alignment.Right;

 Paragraph titleParagraph = Title.Blocks.AddParagraph();
 Run titleRun = titleParagraph.Inlines.AddRun("Executive Summary");
 titleRun.FontWeight = FontWeights.Bold;
 titleRun.FontSize = 20;

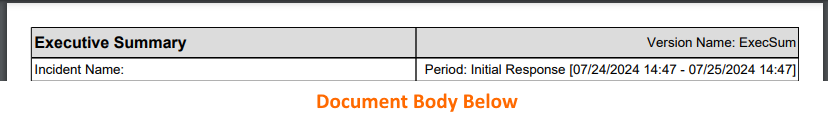

Result:

Here are also some articles you might find useful:

• Modifying a Table
• Modifying a TableCell
• Styles
• Style Properties

I hope this helps. Let me know if further assistance is required.

Regards,

Yoan



[Darwin]

Yoah,

Worked perfectly.  Thanks so much for a prompt and helpful answer!

Regards,

Darwin Pinder
