Basically i am trivarsing whole word document template and updating the text of merge field run.
But after updating the text i want to delete the merge field. How to do that?

var currentDocument = document.EnumerateChildrenOfType<DocumentElementBase>().ToList();
                    int indexElement = 0;
                    foreach (var currentElement in currentDocument)
                    {

if (currentElement.GetType() == typeof(Run))
                        {
                            currentRun = (Run)currentElement;

 if (currentRun.Text.StartsWith("«") && currentRun.Text.Length > 2)
                            {

string runText= currentRun.Text.Substring(1, currentRun.Text.Length - 2);
if(runText == "name")
currentRun.Text = "faraz";

}

Now after updating the text i want to delete the merge field and maintain the run text. How to do that?

I'm using RadFlowDocument editor to insert a document in a specific position after a text from run.

So flow is read a document runs and when a text is reach insert another RawFlowDocument in it.

But the problem is always adding it in the end.

I want to insert it at specific position.

There are total 3 documents that needs to be added at specific position.
The run text shows i am at the right position but the generated document always shows new document in the end.

I'm using RadFlowDocument to edit a document (docx), this file is a combination of different docx file.

I have to add Table of content in this file. I saw this code but it is using RadDocument instead of RadFlowDocument class

RadDocument document = new RadDocument();
RadDocumentEditor editor = new RadDocumentEditor(new RadDocument());
editor.InsertField(new TableOfContentsField(), FieldDisplayMode.Result);

How can I add ToC using RadFlowDocument ?

Thanks

I am trying to generate a PDF document but don't know how to control the Page size. As the printout is most likely A4, I would like to print it horizontally in order to fit my table in. The following is my code snippet. The first few rows of the table are the header.

        // ----------------------------------------------
        // Print Request Test Schedule Allocation
        // -----------------------------------------------
        private void cmdPrint_Click(object sender, EventArgs e)
        {
            FixedContentEditor editor;
            RadFixedDocument document;
            RadFixedPage page;

            document = new RadFixedDocument();
            page = document.Pages.AddPage();
            editor = new FixedContentEditor(page, new SimplePosition());

            Table table = new Table();
            table.BorderCollapse = BorderCollapse.Separate;
            table.LayoutType = TableLayoutType.AutoFit;
            table.Margin = new System.Windows.Thickness(50);

            table = SetTableHeader(table);

            editor.DrawTable(table)

            TableRow tableRow;
            foreach (KeyValuePair<string, TDFCollection> tDFObject in T.FileList)
            {
                Block block = new Block();
                string name = tDFObject.Value.TDFName;
                string desc = tDFObject.Value.TDFDescription;
                string requester = tDFObject.Value.Requester;
                string duration = tDFObject.Value.Duration.ToString();

                tableRow = table.Rows.AddTableRow();
                tableRow.Cells.AddTableCell().PreferredWidth = 20;
                block = tableRow.Cells.AddTableCell().Blocks.AddBlock();
                block.TextProperties.FontSize = 12;
                block.InsertText(name);
                tableRow.Cells.AddTableCell().PreferredWidth = 30;
                block = tableRow.Cells.AddTableCell().Blocks.AddBlock();
                block.TextProperties.FontSize = 12;
                block.InsertText(desc);
                tableRow.Cells.AddTableCell().PreferredWidth = 35;
                block = tableRow.Cells.AddTableCell().Blocks.AddBlock();
                block.TextProperties.FontSize = 12;
                block.InsertText(requester);
                tableRow.Cells.AddTableCell().PreferredWidth = 5;
                block = tableRow.Cells.AddTableCell().Blocks.AddBlock();
                block.HorizontalAlignment = Telerik.Windows.Documents.Fixed.Model.Editing.Flow.HorizontalAlignment.Center;
                block.TextProperties.FontSize = 12;
                block.InsertText(duration);
            }
            editor.DrawTable(table);

            int index = 0;
            string agendaFile = null;
            while (true)
            {
                index++;
                agendaFile = T.TEST_Scheduling + "Request Allocation" + " (" + index.ToString() + ").pdf";
                if (!File.Exists(agendaFile)) break;
            }

            PdfFormatProvider provider = new PdfFormatProvider();
            try
            {
                using (Stream output = File.OpenWrite(agendaFile))
                {
                    provider.Export(document, output);
                }
            }
            catch (Exception ex)
            {
                T.WriteLine("PDF Stream Write Exception : " + ex.Message);
                MessageBox.Show(ex.Message, "PDF Output Exception", MessageBoxButtons.OK, MessageBoxIcon.Error);
                return;
            }

            MessageBox.Show("Test Schedule Allocation Requests PDF is created", "Print Test Allocation Requests", MessageBoxButtons.OK, MessageBoxIcon.Information);
        }

        // ---------------
        //  Set PDF Header
        // ---------------
        private Table SetTableHeader(Table table)
        {
            TableRow tableRow;
            tableRow = table.Rows.AddTableRow();
            tableRow.Cells.AddTableCell().PreferredWidth = 30;
            Block block = tableRow.Cells.AddTableCell().Blocks.AddBlock();
            block.TextProperties.FontSize= 14;
            block.GraphicProperties.FillColor = new RgbColor(0, 0, 139);
            block.InsertText("TEST SCHEDULING REQUESTS");

            tableRow = table.Rows.AddTableRow();
            block = tableRow.Cells.AddTableCell().Blocks.AddBlock();
            block.TextProperties.FontSize = 12;
            block.InsertText(" ");

            tableRow = table.Rows.AddTableRow();
            tableRow.Cells.AddTableCell().PreferredWidth = 30;
            block.TextProperties.FontSize = 12;
            block = tableRow.Cells.AddTableCell().Blocks.AddBlock();
            block.GraphicProperties.FillColor = new RgbColor(0, 0, 139);
            block.TextProperties.UnderlineColor = new RgbColor(0, 0, 139);
            block.InsertText("Test Definition");
            block.InsertLineBreak();

            tableRow.Cells.AddTableCell().PreferredWidth = 30;
            block = tableRow.Cells.AddTableCell().Blocks.AddBlock();
            block.TextProperties.FontSize = 12;
            block.GraphicProperties.FillColor = new RgbColor(0, 0, 139);
            block.TextProperties.UnderlineColor = new RgbColor(0, 0, 139);
            block.InsertText("Description");

            tableRow.Cells.AddTableCell().PreferredWidth = 35;
            block = tableRow.Cells.AddTableCell().Blocks.AddBlock();
            block.TextProperties.FontSize = 12;
            block.GraphicProperties.FillColor = new RgbColor(0, 0, 139);
            block.TextProperties.UnderlineColor = new RgbColor(0, 0, 139);
            block.InsertText("Requester");

            tableRow.Cells.AddTableCell().PreferredWidth = 5;
            block = tableRow.Cells.AddTableCell().Blocks.AddBlock();
            block.TextProperties.FontSize = 12;
            block.GraphicProperties.FillColor = new RgbColor(0, 0, 139);
            block.TextProperties.UnderlineColor = new RgbColor(0, 0, 139);
            block.InsertText("Duration");

            block = tableRow.Cells.AddTableCell().Blocks.AddBlock();
            block.TextProperties.FontSize = 12;
            block.InsertText("    ");

            return table;
        }
    }

Hi, i'm trying to use document processing to convert HTML template to PDF, but fonts are missing from resulting file, maybe even from the imported html.

How can I find out if the fonts are already missing after importing HTML?

What is the best way to convert HTML to PDF keeping images, fonts, etc. using document processing?

This is one of my attempts to get it to work.

static void Main(string[] args)
        {
            string templateFileName = @"html template.htm";
            string pdfPath = @"test html template to pdf.pdf";
            FileStream templateAsStream = new FileStream(templateFileName, FileMode.Open, FileAccess.Read);

            ///////////
            //telerik
            ///////////



            try
            {
                // Register the font
                byte[] fontDataR = File.ReadAllBytes("Raleway-VariableFont_wght.ttf");
                System.Windows.Media.FontFamily fontFamilyR = new System.Windows.Media.FontFamily("Releway");
                byte[] fontDataRL = File.ReadAllBytes("Raleway-Light.ttf");
                System.Windows.Media.FontFamily fontFamilyRL = new System.Windows.Media.FontFamily("Releway Light");

                //Telerik.Windows.Documents.Fixed.Model.Fonts.
                FontsRepository.RegisterFont(fontFamilyR, System.Windows.FontStyles.Normal, System.Windows.FontWeights.Normal, fontDataR);
                FontsRepository.RegisterFont(fontFamilyRL, System.Windows.FontStyles.Normal, System.Windows.FontWeights.Normal, fontDataRL);

                byte[] fontDataRb = File.ReadAllBytes("Raleway-Bold.ttf");
                System.Windows.Media.FontFamily fontFamilyRb = new System.Windows.Media.FontFamily("Releway");
                //Telerik.Windows.Documents.Fixed.Model.Fonts.
                FontsRepository.RegisterFont(fontFamilyR, System.Windows.FontStyles.Normal, System.Windows.FontWeights.Bold, fontDataRb);


                //import AFTER setting fonts
                //Telerik.Windows.Documents.Flow.FormatProviders.Html.
                HtmlFormatProvider htmlProvider = new HtmlFormatProvider();
                HtmlImportSettings importSettings = new HtmlImportSettings();
                HtmlExportSettings exportSettings = new HtmlExportSettings();
                var document = htmlProvider.Import(templateAsStream);

                PdfFormatProvider pdfProvider = new PdfFormatProvider();

                //Telerik.Windows.Documents.Extensibility.FontsProviderBase fontsProvider = new FontsProvider();
                //Telerik.Windows.Documents.Extensibility.FixedExtensibilityManager.FontsProvider = fontsProvider;

                PdfExportSettings pdfExportSettings = new PdfExportSettings();
                pdfExportSettings.ShouldEmbedFonts = true;

                pdfProvider.ExportSettings = pdfExportSettings;


                FileStream stream = File.Create("fixed pdf.pdf");
                var radFixedDocument = (new Telerik.Windows.Documents.Flow.FormatProviders.Pdf.PdfFormatProvider()).ExportToFixedDocument(document);
                var fixedFormatProvider = new Telerik.Windows.Documents.Fixed.FormatProviders.Pdf.PdfFormatProvider();
                fixedFormatProvider.Export(radFixedDocument, stream);
                stream.Close();

                //var resultBytes = pdfProvider.Export(document);
                //File.WriteAllBytes(pdfPath, resultBytes);

            }
            catch(Exception e)
            {
                throw e;
            }

I have also attached html file that is result of importing html and then export html

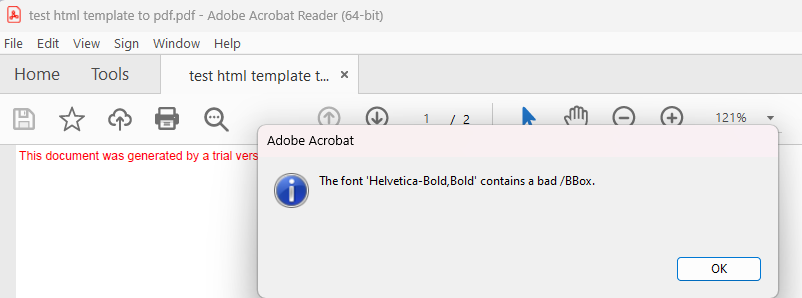

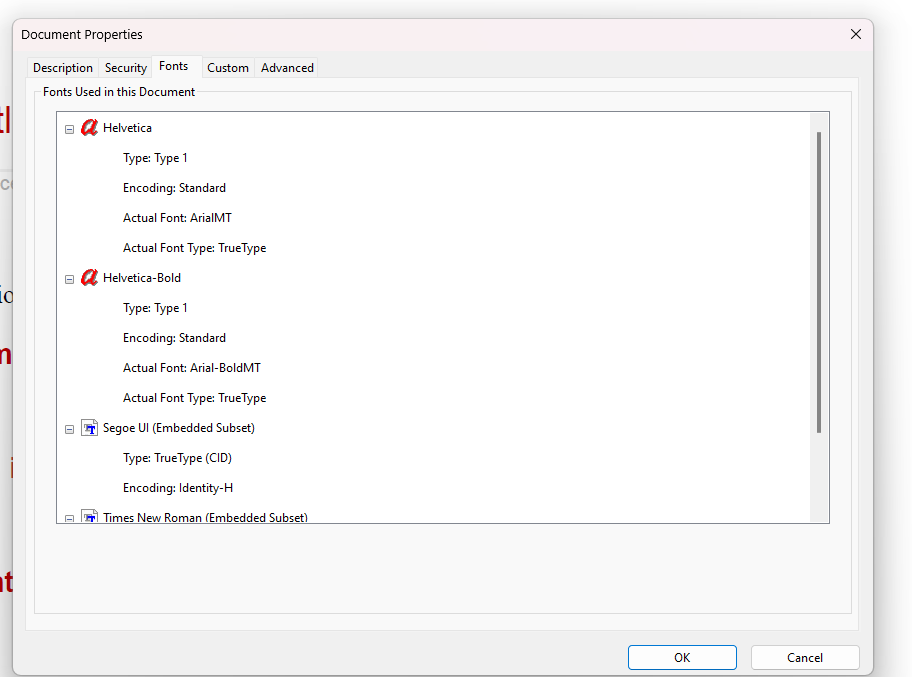

also I get this in pdf reader both if I use embed fonts option or not

https://www.telerik.com/forums/radflowdocument-to-pdf---arialnarrow-font-issues

Hi

I am working on code to read DOCX from user, then I will replace text in DOCX by our data.

Anyway, I want to validate all font that is used by uploaded document. Can you provide me code snippet?

I have debugged Run, StyleRepository, Paragrah but no luck. it just display default Verdana.

Hello,

This post is not a question.  I simply wanted to share my partial solution for those who may need it.

Below is a manual method for creating a Block with justified text in the PDFProcessing API.  This makes use of the Block object's Measure method and the WordSpacing property to adjust each line until the indicated width is filled.

PLEASE NOTE:

• While I tried to account for it, I have not tested this code for compatibility with multiple paragraphs or blank lines.
• It is intended for small portions of text and will not likely scale well with a full document.

Best Regards,

Aidan D.

TAGS FOR GOOGLE: Justify, Alignment

using System;
using System.Collections.Generic;
using Telerik.Windows.Documents.Fixed.Model.Editing;
using Telerik.Windows.Documents.Fixed.Model.Fonts;

classTextJustify
{
    public static void InsertJustifiedBlock(FixedContentEditor PageEditor, string Text, int TextBoxWidth)
    {
        Block justifiedBlock = CreateJustifiedBlock(Text, TextBoxWidth, PageEditor.TextProperties.Font, PageEditor.TextProperties.FontSize);
        PageEditor.DrawBlock(justifiedBlock);
    }
    public static Block CreateJustifiedBlock(string Text, int TextBoxWidth, FontBase Font, double FontSize)
    {
        Block justifiedBlock = new Block();
        double currentSpacing = 0;
        double spacingStep = 1;
        string currentLine;

        if (Text.Length > 0)
        {
            {
                var withBlock = justifiedBlock.TextProperties;
                // Default word spacing.  Must be initialized to 0 before use. This defaults to Nothing/Null// and will not function correctly if not initialized.
                withBlock.WordSpacing = 0;
                withBlock.Font = Font;
                withBlock.FontSize = FontSize;
            }

            // We need a seperate block to use as a measuring tool using the same text properties as the justified block.
            Block measuringBlock = new Block(justifiedBlock);

            // Make sure the WordSpacing property is initialized to zero. // Break the text string into lines, adding as many full words as we can to each line.// This does not support hyphenation.
            List<string> lines = breakIntoLines(Text, TextBoxWidth, ref measuringBlock);

            for (int i = 0; i <= lines.Count - 1; i++)
            {
                currentLine = lines[i];

                // For all except the last line, space out the words to fill the allowed space.if (i < (lines.Count - 1))
                {
                    do
                    {
                        // Set the word spacing before inserting the text.
                        measuringBlock.TextProperties.WordSpacing = currentSpacing;

                        // We need to reinsert the text each time the spacing changes since the spacing is only applied on insert
                        measuringBlock.Clear();
                        measuringBlock.InsertText(currentLine);
                        measuringBlock.Measure();
                        if (measuringBlock.DesiredSize.Width > TextBoxWidth && spacingStep != 0.01)
                        {
                            // Step back by one then narrow in at finer increments
                            currentSpacing -= spacingStep;
                            spacingStep /= 10;
                            currentSpacing += spacingStep;
                            continue;
                        }

                        currentSpacing += spacingStep;
                    }
                    while (measuringBlock.DesiredSize.Width > TextBoxWidth && spacingStep == 0.01);

                    // Reduce by one step to bring it back into allowed width
                    currentSpacing -= spacingStep;
                }

                // Add the line of text with the appropriate spacing.using (justifiedBlock.SaveTextProperties())
                {
                    justifiedBlock.TextProperties.WordSpacing = currentSpacing;
                    justifiedBlock.InsertText(currentLine);
                    justifiedBlock.InsertLineBreak();
                }

                // Reset for next line
                currentSpacing = 0; spacingStep = 1;
            }
        }

        return justifiedBlock;
    }

    private static List<string> breakIntoLines(string Text, int maxLineWidth, ref Block measuringBlock)
    {
        List<string> sResults = new List<string>();
        string[] lines = Text.Split(newstring[] { "\n", "\r\n" }, StringSplitOptions.None);

        foreach (string line in lines)
        {
            string[] words = line.Split(newstring[] { " " }, StringSplitOptions.RemoveEmptyEntries);

            sResults.Add(""); // Initialize the line.  This may remain empty if the line is blank.for (int i = 0; i <= words.Length - 1; i++)
            {
                if (sResults[sResults.Count - 1].Length == 0)

                    sResults[sResults.Count - 1] = words[i];

                else
                {
                    string testLine = string.Concat(sResults[sResults.Count - 1], " ", words[i]);

                    measuringBlock.InsertText(testLine);
                    measuringBlock.Measure();

                    if (measuringBlock.DesiredSize.Width <= maxLineWidth)
                        // Replace with new, longer line
                        sResults[sResults.Count - 1] = testLine;
                    else// Start new line
                        sResults.Add(words[i]);

                    // Remove text from measuring block to reset for next word
                    measuringBlock.Clear();
                }
            }
        }

        return sResults;
    }

}

Hi,
there seems to be a bug in the PdfFormatProvider Import code.

When using swedish culture, the read PDF data has incorrect position matrices, causing all elements to disappear.

Example ("en"):

Example ("sv"):

Once found, it's easy for me to work around this big.
But it looks like it should be easy to fix!

Thanks,
Anton

Hello.
I faced several problems with the attribute "text-align: justify".
1) In the report I have a table that displays some note. This note is retrieved from the database as a string with html-markup (with all necessary tags and its different attributes). All properties of the attribute "Style" work as expected except "text-align: justify". As a result in HTML-viewer I have the note (s.attached overwritten1.png). The text somehow is overlapped/owerwritten. In PDF it looks good though (s.attached overwritten1_PDF.png). In the Sdandalone Report Designer (Preview mode) it works correctly. Unfortunately I can't reproduce the issue with demo example and CSV datasource, but when the report runs and retrieves justified note from the database the issue occurs each time.

2) Another problem is with justifying of the bold-text (s.attached bold.png): I tried to reproduce it in the example (s.attached zip-archive).
When the text has bold font-weight (using <strong>-tag) it is not justified even in Designer (Preview mode).  In PDF it is also absolutely incorrect: with left-alignment text doesn't match the table size at all, with justify-alignment  -  text is overlapped and overwritten

3) I have the report title: bold (s.attached bold.png), text-align: center
In both in HTML-viewer and PDF the title is cut. Without bold font-weight it is wrapped correctly. But I can't remove it. I need this formatting.

Looking forward to your help in these matters.

Best regards,
Elena
