HTMLFormatProvider -> use custom font for imported html string

1 Answer 322 Views

PdfProcessing

Fabian asked on 18 Jan 2023, 09:50 AM

Hi!

How can I make a custom font work, when importing a HTML string and printing it to pdf? Im loosing the "ÄÖÜ" characters currently and know that this is a font related issue.

var htmlDocument = new Telerik.Windows.Documents.Flow.FormatProviders.Html.HtmlFormatProvider();

// Regular Font
byte[] fontData = System.IO.File.ReadAllBytes("fonts/verdana.ttf");
Telerik.Documents.Core.Fonts.FontFamily fontFamily = new Telerik.Documents.Core.Fonts.FontFamily("CustomVerdana");
FontsRepository.RegisterFont(fontFamily, FontStyles.Normal, FontWeights.Normal, fontData);

var doc = htmlDocument.Import("<html><body style=\"font-family:CustomVerdana;\">Das ist ein test. <br> <strong>ÖOÜUÄA</strong></body></html>");

var fileName = "output.pdf";
var pdf = new Telerik.Windows.Documents.Flow.FormatProviders.Pdf.PdfFormatProvider();
using (Stream output = System.IO.File.OpenWrite(fileName))
{
      pdf.Export(doc, output);
 }

1 Answer, 1 is accepted

Fabian

commented on 19 Jan 2023, 11:31 AM

html-issue.zip

Hey Dimitar,

thank you for the quick response. I changed the name to be equal to the font file name. Still does not work, the letters "äöü" get lost. The font same font works when i .insertText() and provide the font as an argument. I have isolated the necessary code and hope you can find the issue

Dimitar

commented on 19 Jan 2023, 01:25 PM

Hi Fabian,

Thank you for the project.

Please note that the font family is case-sensitive and it must start with capital "V" in this case.

In addition, the text in the HTML is bold, and this means that you need to register a bold font as well. Usually, separate font files are used for the bold characters.

I hope this helps. Should you have any other questions do not hesitate to ask.

Regards,

Dimitar

Fabian

commented on 20 Jan 2023, 06:10 AM | edited

Thanks a lot Dimitar, it works now!

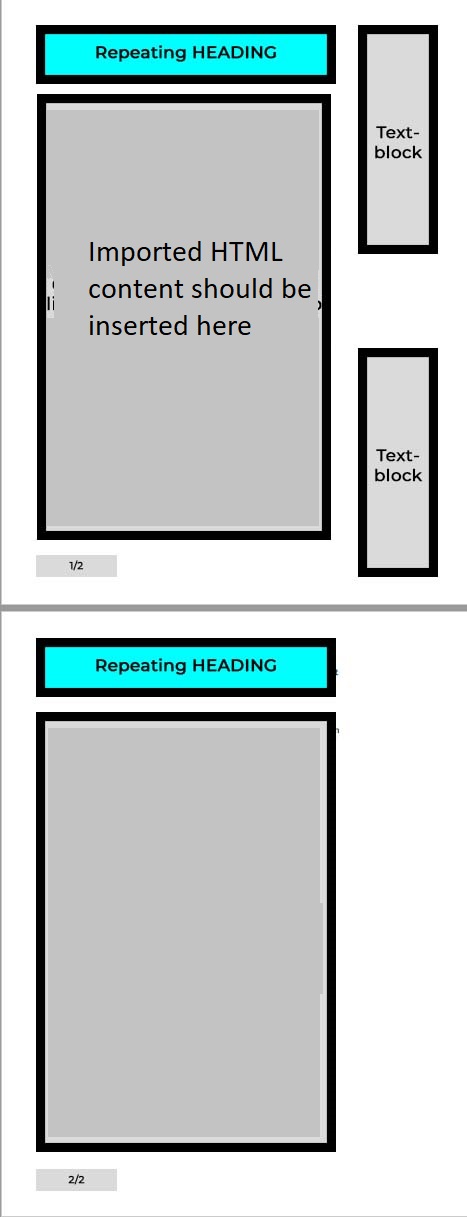

Just one more question. How can i insert the html string which is currently exported to .pdf into a RadFixedDocument table cell block? For better understanding i have attached a screenshot of the layout. The whole document is a table with two columns and i want to insert the imported html into the main content table cell, while keeping the html formatting

Dimitar

commented on 20 Jan 2023, 02:03 PM

Hi Fabian,

The only way to achieve this would be to create a RadFlowDocument first and then convert it to PDF. This way you can import the HTML and insert it into the document. Detailed information is available in the following articles:

Let me know if I can assist you further.

Regards,

Dimitar
