[Solved] Suggestion - Group Summaries and Column Group Views

[Ryan]

Group Summaries:
I dont know if anyone has suggested it yet or even if it is possible to do it right now, but I would like the user to be able to right-click on the columns group summary and select from a context menu what he/she would like to see (Sum,Min,Max,Average, etc) for that column.

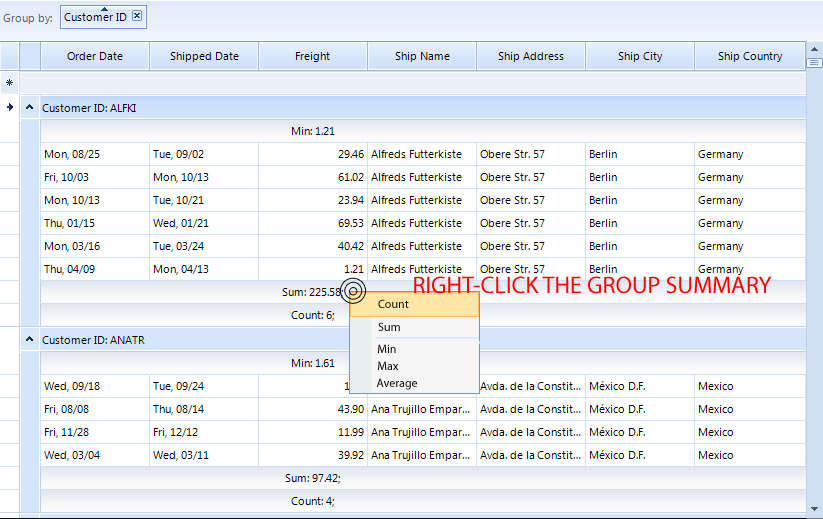

I've attacked an example of what i'm trying to describe.

Column Group Views:
I would also like to suggest an ability to use the column chooser and to drag an entire group from the grid to the column chooser window, this would allow the user to quickly add/remove entire groups from the gridview.

If any of this is currently possible, i would really like to know how I can achieve any of these.

Thank You.

[Richard Slade]

Hello Ryan,

I've done the first one for you. Apologies this code is a bit messy, but it does work. Plenty of improvements to be made but I'm sure you get the general idea.
It's just a RadGridView on a form. Please let me know if you have any questions, and may I ask you to mark as answer if this suggestion helps.
If this works well for you, I'll try and get it done properly as a Code Library project as I think this would be really useful and it was an excellent suggestion.

Imports Telerik.WinControls.UI
Imports Telerik.WinControls
Imports System.ComponentModel
Imports System.Reflection


Public Class Form1

    Private m_Summary As GridViewSummaryItem
    Private m_SummaryRowItem As GridViewSummaryRowItem
    Private m_AggregateFunction As AggregateFunction
    Private m_ContextMenu As New RadDropDownMenu()

    Private Enum AggregateFunction
        <Description("The average is: ")> _
        Avg
        <Description("The count is: ")> _
        Count
        <Description("The max is: ")> _
        Max
        <Description("The min is: ")> _
        Min
        ' Any others that you want
    End Enum

    Private Shared Function AggregateFunctionToGridAggregateFunction(ByVal aggregateFunction As AggregateFunction) As GridAggregateFunction
        Select aggregateFunction
            Case aggregateFunction.Avg
                Return GridAggregateFunction.Avg
            Case aggregateFunction.Count
                Return GridAggregateFunction.Count
            Case aggregateFunction.Max
                Return GridAggregateFunction.Max
            Case aggregateFunction.Min
                Return GridAggregateFunction.Min
        End Select
    End Function
    Private Shared Function GetEnumDescription(ByVal en As [Enum]) As String
        Dim type As Type = en.[GetType]()

        Dim memInfo As MemberInfo() = type.GetMember(en.ToString())
        If memInfo IsNot Nothing AndAlso memInfo.Length > 0 Then
            Dim attrs As Object() = memInfo(0).GetCustomAttributes(GetType(DescriptionAttribute), False)

            If attrs IsNot Nothing AndAlso attrs.Length > 0 Then
                Return DirectCast(attrs(0), DescriptionAttribute).Description
            End If
        End If

        Return en.ToString()
    End Function


    Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

        Me.RadGridView1.AllowAddNewRow = False
        Me.RadGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill

        Me.RadGridView1.Columns.Add(New GridViewTextBoxColumn("Month"))
        Me.RadGridView1.Columns.Add(New GridViewDecimalColumn("Income"))

        Dim rowInfo As GridViewRowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "January"
        rowInfo.Cells(1).Value = 22.5
        rowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "February"
        rowInfo.Cells(1).Value = 30.65
        rowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "March"
        rowInfo.Cells(1).Value = 4.65
        rowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "April"
        rowInfo.Cells(1).Value = 21.57
        rowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "May"
        rowInfo.Cells(1).Value = 24.65

        Me.m_AggregateFunction = AggregateFunction.Avg
        Dim summarytext As String = GetEnumDescription(AggregateFunction.Avg)

        m_Summary = New GridViewSummaryItem("Income", summarytext & " {0}", GridAggregateFunction.Avg)
        m_SummaryRowItem = New GridViewSummaryRowItem()
        m_SummaryRowItem.Add(m_Summary)

        Me.RadGridView1.MasterTemplate.SummaryRowsBottom.Add(m_SummaryRowItem)

        For Each func In [Enum].GetValues(GetType(AggregateFunction))
            Dim menuItem As New RadMenuItem(func.ToString())
            m_ContextMenu.Items.Add(menuItem)
            AddHandler menuItem.Click, AddressOf MenuItem_Click
            menuItem.CheckOnClick = True
            If String.Equals(m_AggregateFunction.ToString(), func.ToString()) Then
                menuItem.IsChecked = True
            End If
        Next
    End Sub

    Private Sub RadGridView1_ContextMenuOpening(ByVal sender As System.Object, ByVal e As Telerik.WinControls.UI.ContextMenuOpeningEventArgs) Handles RadGridView1.ContextMenuOpening
        If TypeOf e.ContextMenuProvider Is GridSummaryCellElement Then
            e.ContextMenu = m_ContextMenu
        End If
    End Sub

    Private Sub MenuItem_Click(ByVal sender As Object, ByVal e As EventArgs)

        Dim menuItem As RadMenuItem = DirectCast(sender, RadMenuItem)
        Dim summarytext As String = ""
        Dim useThisFunction As AggregateFunction
        For Each func In [Enum].GetValues(GetType(AggregateFunction))
            If String.Equals(func.ToString(), menuItem.Text) Then
                Me.m_AggregateFunction = CType(func, AggregateFunction)
                summarytext = GetEnumDescription(CType(func, AggregateFunction))
                useThisFunction = CType(func, AggregateFunction)
            End If
        Next

        For Each menu As RadMenuItem In Me.m_ContextMenu.Items
            If Not String.Equals(menu.Text, menuItem.Text) Then
                menu.IsChecked = False
            End If
        Next
        Me.RadGridView1.SummaryRowsBottom.Clear()
        m_Summary = New GridViewSummaryItem("Income", summarytext & " {0}", AggregateFunctionToGridAggregateFunction(useThisFunction))
        m_SummaryRowItem = New GridViewSummaryRowItem()
        m_SummaryRowItem.Add(m_Summary)
        Me.RadGridView1.MasterTemplate.SummaryRowsBottom.Add(m_SummaryRowItem)
    End Sub

End Class

Best regards,
Richard

[Richard Slade]

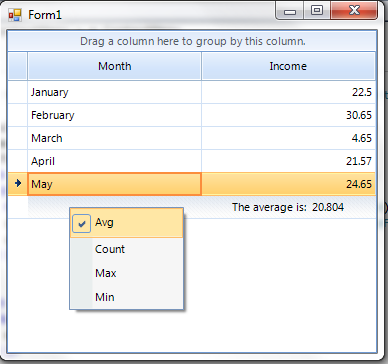

Adding screenshot

[Ryan]

Thanks alot Richard, that is exactly what I was looking for.

Much Appreciated!

[Richard Slade]

Hi Ryan,

You're welcome. I've vamped it up a bit since and it now handles datatime columns too. It's now just an inherited RadGridView. I'll submit it to the Code Library so hope it should be up there soon.
Regards,
Richard

[Richard Slade]

Hi Ryan,

I thought you'd be interested to know that the Code Library now lists this new article with a better version of what you had above.
it can be found here

hope that's helpful.
Richard
