[Solved] Styling of PdfViewerNavigateToPageToolbarItem entry

[Chris]

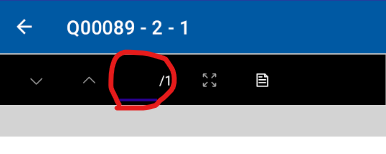

How can we change the background color and text color of the PdfViewerNavigateToPageToolbarItem entry?

The RadPdfViewerToolbar and ButtonToolbarItemView are set with styling.

[Masha]

Hello Chris,

Thank you for contacting us.

To achieve the desired changes in the background and text color of the PdfViewerNavigateToPageToolbarItem entry, follow these steps:

• Set the ControlTemplate of the PdfViewerNavigateToPageToolbarItem:

<telerik:PdfViewerNavigateToPageToolbarItem ControlTemplate="{StaticResource PdfViewerNavigateToPageToolbarItemView_ControlTemplate}"/>

• Apply the necessary resources and styles.

<Style x:Key="PdfViewerNavigateToPageToolbarItemView_EntryStyle" TargetType="telerik:RadEntry">
    <Setter Property="Keyboard" Value="Numeric" />
    <Setter Property="WidthRequest" Value="{OnPlatform Default=40, WinUI=64}" />
    <Setter Property="ReserveSpaceForErrorView" Value="False" />
    <Setter Property="ClearButtonVisibility" Value="Never" />
    <Setter Property="VerticalOptions" Value="Center" />
    <Setter Property="BackgroundColor" Value="ForestGreen"/>
    <Setter Property="TextColor" Value="Red"/>
    <Setter Property="HorizontalTextAlignment" Value="Center" />
</Style>

<ControlTemplate x:Key="PdfViewerNavigateToPageToolbarItemView_ControlTemplate">
    <HorizontalStackLayout Spacing="{OnPlatform Default=2, WinUI=4}" Padding="0, 0, 8, 0">
        <telerik:RadEntry x:Name="PART_CurrentPageEntry"
                                    Text="{Binding Source={RelativeSource TemplatedParent}, Path=CurrentPageNumber, Mode=TwoWay}"
                                    Style="{StaticResource PdfViewerNavigateToPageToolbarItemView_EntryStyle}" />
        <Label Text="{Binding TotalPages, Source={RelativeSource TemplatedParent}, StringFormat='/{0}'}"
                    VerticalOptions="Center"
               VerticalTextAlignment="Center" />
    </HorizontalStackLayout>
</ControlTemplate>

I also have logged as a feature request to create a style property for the PdfViewerNavigateToPageToolbarItem here.

I hope this helps.

Regards,
Masha
Progress Telerik
