Start ripple animation from code

[Patrick]

Hello,

I have a custom RadTileElement where the ripple animation is enabled.

The animation works when clicking the tile element, but is it possible to raise/start the ripple animation from code?

This to draw the attention of the user to the tile element.

Grtz Patrick Vossen

[Dess | Tech Support Engineer, Principal]

Hello, Patrick,

The ripple animation is designed to be performed when you click an item with the mouse. However, you can simulate clicking with the mouse over a specific location on the tile element by using reflection:

public RadForm1()
{
    InitializeComponent();

    this.radTileElement1.EnableRippleAnimation = true;
}

private void radButton1_Click(object sender, EventArgs e)
{
    this.radTileElement1.EnableRippleAnimation = true;
    MethodInfo mi = typeof(RadItem).GetMethod("StartRippleAnimation", BindingFlags.Instance | BindingFlags.NonPublic);
    MouseEventArgs args = new MouseEventArgs(System.Windows.Forms.MouseButtons.Left, 1,
        this.radTileElement1.Location.X + this.radTileElement1.Size.Width / 2,
        this.radTileElement1.Location.Y + this.radTileElement1.Size.Height / 2,1);

I hope this information helps. If you need any further assistance please don't hesitate to contact me.

 Regards,
Dess | Tech Support Engineer, Sr.
Progress Telerik

[Patrick]

Hi Dess,



Thanks for your response.

Is the code complete?

If I read the code, only variables are created..



Regards,

Patrick Vossen

[Dess | Tech Support Engineer, Principal]

Hello, Patrick,

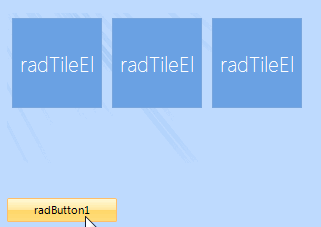

If you refer to the provided code snippet in my previous post, you will notice that via reflection the StartRippleAnimation method is invoked. I have attached my sample project for your reference. It is just necessary to click the button.

I hope this information helps.

 Regards,
Dess | Tech Support Engineer, Sr.
Progress Telerik

[Patrick]

Hi Dess,

Thanks for the answer and sample project.

Ik works like a charm.

Grtz Patrick
