Series value text is getting crop

1 Answer 89 Views
Charts
This is a migrated thread and some comments may be shown as answers.
Rohan
Top achievements
Rank 1
Veteran
Rohan asked on 03 Sep 2020, 06:10 AM

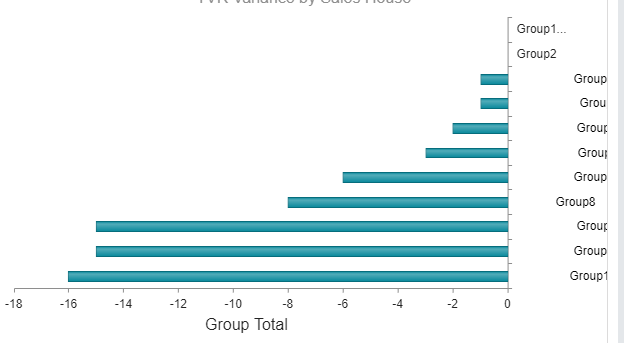

I have charts which have dyanamic Series value text so text is getting crop.

$('#topStationsChart').kendoChart({
dataSource: topFiveStation.LstTopFiveDataItem,
chartArea: {
height: 370
},
title: {
text: selectedKPI + " by " + activeVariable,
visible: true,
},
legend: {
position: 'top'
},
seriesDefaults: {
type: "bar"
},
series: [{
//name: '',
data: totalVisit,
//type: 'column',
stack: false,
color: '#08889b'
}, {
field: 'HalfValueVariance',
//categoryField: 'TopChartVariable',
categoryField: 'TopVariableFullName', // ARME- 610
type: 'line',
width: 0,
tooltip: {
visible: true,
template: function (e) {
var value = e.value * 2;
var strcommsepvalue = CommasSperatedNumber(value);
var tooltipString = "";
var KPINameString = selectedKPI + ($(".customSwitch span.active").text() == "Percent" ? "(%)" : " ");
tooltipString += "<span style=\"text-align:center;display:inline-block;width:100%;\">";
tooltipString += (activeVariable == "Top 5 Stations" ? "Station" : activeVariable) + " : " + e.category + "</span>";
tooltipString += "<hr style=\"border-color:#ccc;margin: 5px 0;\" class=\"hrTooltps\">"
tooltipString += KPINameString + " : " + "<span  style=\"float:right;display:inline-block;\">" + strcommsepvalue + "</span>";

return tooltipString;
},
border: { color: "08889b" },
autoHide: false
},
highlight: {
toggle: function (e) {
e.preventDefault();
var visual = e.visual;
var transform = null;
if (e.show) {
var center = visual.rect().center();
// Uniform 1.5x scale with the center as origin
transform = kendo.geometry.transform().scale(1.5, 1.5, center);
}
visual.transform(transform);
}
},
markers: {
size: 30,
visual: function (e) {
var src = kendo.format('/' + "{0}", e.dataItem.IconURL);
if (e.dataItem.IconURL == null || e.dataItem.IconURL == undefined || e.dataItem.IconURL == '') {
src = "/Content/Images/stationIcon_placeholder.png";
}
var image = new kendo.drawing.Image(src, e.rect);

return image;
}
}
}],
valueAxis: {
title: {
text: strVarValTitle
},
labels: {
//format: "{0}%"
},
line: {
visible: true
},
majorGridLines: {
visible: false
},
axisCrossingValue: 0,
visible: true
},
categoryAxis: {
line: {
visible: true
},
majorGridLines: {
visible: false
},
labels: {
template: "#=shortLabels(value)#",
rotation: "auto",
visual: adjustLabelsForTopStationChart
},
visible: true,
},
tooltip: {
visible: true,
template: function (e) {
var value = e.value;
var strcommsepvalue = CommasSperatedNumber(value);
var tooltipString = "";
var KPINameString = selectedKPI + ($(".customSwitch span.active").text() == "Percent" ? "(%)" : " ");
tooltipString += "<span style=\"text-align:center;display:inline-block;width:100%;\">";
tooltipString += (activeVariable == "Top 5 Stations" ? "Station" : activeVariable) + " : " + e.category + "</span>";
tooltipString += "<hr style=\"border-color:#ccc;margin: 5px 0;\" class=\"hrTooltps\">"
tooltipString += "<span  style=\"float:left;display:inline-block;\">" + KPINameString + "</span>" + " : " + "<span  style=\"float:right;display:inline-block;\">" + strcommsepvalue + "</span>";

return tooltipString;
},
background: "rgba(248,248,248,0.8)",
color: "#333",
autoHide: false
//format: "{0}"
},
seriesHover: function(e) {
$("#topStationsChart").css("cursor", "default");
},
render: function (e) {
var tooltip = $(".customTooltipTop");
e.sender.surface.bind("mouseenter", function (e) {
if (e.element.parent.chartElement.content && e.element.parent.chartElement.text.indexOf('...') != -1) {
var pos = e.element.bbox().getOrigin();
tooltip.html(e.element.parent.chartElement.value)
                            .css({
                            left: pos.x - 60,
                            top: pos.y + 20
                            })
                            .show();
}
});
e.sender.surface.bind("mouseleave", function (e) {
tooltip.hide();
});
},
});
onBarLineChartHover(nBarLineChartLength, 13);
} else {
$("#topStationsChart").html("<div class='noData'>No Data Available</div>");
}
}

1 Answer, 1 is accepted

Sort by
0
Tsvetomir
Telerik team
answered on 04 Sep 2020, 11:56 AM

Hi Rohan,

I have investigated the provided code snippets and I have noticed the there is a function specified for the "visual" option of the labels. It might be the cause of the disposition. Could you try commenting it out and see if the issue persists?

adjustLabelsForTopStationChart

If not, share the contents of the JavaScript function.



Kind regards,
Tsvetomir
Progress Telerik
