Selectively Merging Cells in Specific Columns

[Anthony]

Hi,

I'm attempting to find a way to only merge adjacent cells in specific columns. For example if I have a RadGridView with a few columns and I want to Merge similar values that are adjacent to each other in Column[0] how would I do this?

I understand that the RadGridView.Merge* properties don't cover this specific use case but is there an event I could handle that would let me implement this type of functionality? It would need to be something where I can compare cells within a column and set whether they are merged or not.

Or maybe a method I could override?

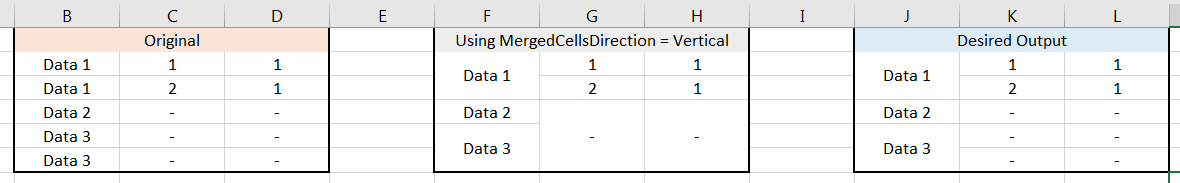

I've attached a mockup in Excel of the type of merging that I'm looking to accomplish in RadGridView.

[Martin]

Hi Anthony,

For your convenience, I prepared an example to demonstrate how to achieve the desired behavior. Please take a look at the implementation and consider how this approach fits your scenario.

I hope that this helps. Should you have any other questions, do not hesitate to contact us.



Regards,
Martin Vatev
Telerik by Progress

[Anthony]

Thanks Martin!

I see the IsCellMergingEnabled property is available in XAML but I'm unable to use this property as I don't know the names of my columns at compile time and I can't seem to access GridViewColumn.IsCellMergingEnabled in C# code.

Such as in the following:

01.foreach (GridViewColumn column in radGridView.Columns)
02.{
03.    if (column.UniqueName == "ColumnIWantToMerge")
04.    {
05.        column.IsCellMergingEnabled = true;
06.    }
07.    else
08.    {
09.        column.IsCellMergingEnabled = true;
10.    }
11.}



Is there a way to do this in code, perhaps an event before the RadGridView is drawn on screen?

[Anthony]

My code example was incorrect:



foreach (GridViewColumn column in radGridView.Columns)
{
    if (column.UniqueName == "ColumnIWantToMerge")
    {
        column.IsCellMergingEnabled = true; // Will fail
    }
    else
    {
        column.IsCellMergingEnabled = false; // Will also fail
    }
}

[Martin]

Hi Anthony,

To achieve the desired behavior you can add an event handler to the AutoGeneratingColumn event and in it to perform the logic for disabling the cell merging. Please take a look at the code snippet below for reference:

public MainWindow()
   {
       InitializeComponent();
       this.radGridView.ItemsSource = EmployeeService.GetEmployees();
       this.radGridView.AutoGeneratingColumn += radGridView_AutoGeneratingColumn;
   }


   private void radGridView_AutoGeneratingColumn(object sender, Telerik.Windows.Controls.GridViewAutoGeneratingColumnEventArgs e)
   {
       GridViewDataColumn dataColumn = e.Column as GridViewDataColumn;
       if (dataColumn != null && dataColumn.UniqueName != "FirstName")
       {
           dataColumn.IsCellMergingEnabled = false;
       }
   }

Regards,
Martin Vatev
Telerik by Progress

[Anthony]

Excellent, thanks Martin!
