Scrolling : only horizontal scrolling needed

[George C.]

Greetings,

I'm using a RadListview as a sequential timeline, so I want to make it look like a linear timeline.

I've written these lines to make sure that only horizontal scrolling is allowed (also did some changes via Smart Tag) :

Timeline.VerticalScrollState = ScrollState.AlwaysHide
Timeline.HorizontalScrollState = ScrollState.AlwaysShow
Timeline.VerticalScroll.Enabled = False
Timeline.VerticalScroll.Visible = True
Timeline.HorizontalScroll.Enabled = True
Timeline.HorizontalScroll.Visible = True

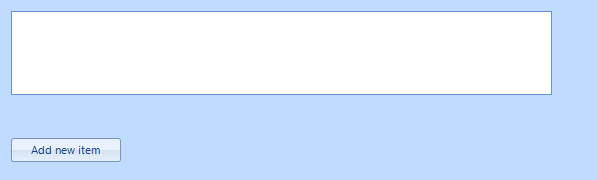

But no success! It still looks like it vertically adds items. Check out the gif I've attached.





[George C.]

after adding 17 items , shown in the gif, it doesn't keep adding items horizontally (it actually adds items programmatically horizontal, but it looks like a vertical listview).

[Nadya | Tech Support Engineer]

Hello George,

I suppose that you use ListViewType.IconsView type. You can use the Orientation property of the IconsListViewElement to control the flow direction of the items in the list view. Here is an example:

public RadForm1()
        {
            InitializeComponent();

            this.radListView1.ViewType = ListViewType.IconsView;
            IconListViewElement iconsViewElement = this.radListView1.ListViewElement.ViewElement as IconListViewElement;
            iconsViewElement.Orientation = Orientation.Horizontal;
        }

I hope this helps. If you need any further assistance please don't hesitate to contact me.

Regards,
Nadya
Progress Telerik
