Screen scale 100% vs 150%

3 Answers 14 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
Eusebio
Top achievements
Rank 1
Veteran
Eusebio asked on 29 Jan 2021, 10:08 AM

Hello,

What is the best strategy so that the controls are not distorted on screen scales at 100%, 200%?
In 100% scale if it looks good. On scale 150% wrong!

I attach images. Please rename SEND.png as SEND.RAR

Best regarsds

3 Answers, 1 is accepted

Sort by
0
Dess | Tech Support Engineer, Principal
Telerik team
answered on 01 Feb 2021, 05:45 AM
Hello, Eusebio,

If your application is declared as DPI-aware, all RadControls will scale their UI elements in accordance to the current DPI settings automatically: https://docs.telerik.com/devtools/winforms/telerik-presentation-framework/dpi-support

In order to produce as good layout as possible when running your application on monitors with different DPI scaling, it is important to have some thoughts in mind before you start designing the application. Please have a look at the general tips in the following help article: https://docs.telerik.com/devtools/winforms/knowledge-base/hdpi-tips-and-tricks

Consider using container controls, like TableLayoutPanel. Thus, the controls do not have specific location and size. This way when the form is resized the controls will fit in the available space. Design the interface of your forms so that it can “reflow” – use Anchored, Docked, AutoSized controls where possible.

I hope this information helps. If you need any further assistance please don't hesitate to contact me.

Regards,
Dess | Tech Support Engineer, Sr.
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Eusebio
Top achievements
Rank 1
Veteran
answered on 01 Feb 2021, 01:47 PM
How do I know if my application is declared as "DPI-aware"?

I have tried to convert that form that is ShapedForm to RadForm but the form has failed (many errors in the MyForm.designer.cs), and for that reason I have lost what I was doing since I have to undo my changes (I had included the TableLayoutPanel).

I wanted to convert it to RadForm since when I assign Dock = Fill to the main Table Layout Panel (the one that wraps everything in my form), the title bar disappears.

Why does my form crash when I try to convert it from ShapedForm to RadForm? How could I convert it to RadForm?
0
Dess | Tech Support Engineer, Principal
Telerik team
answered on 02 Feb 2021, 12:25 PM

Hi, Eusebio,

The app.manifest file is the most common way for declaring the application as DPI-aware or unaware: https://docs.telerik.com/devtools/winforms/telerik-presentation-framework/dpi-support#application-manifest-file

There is a table with the available values listed in the referred section. Thus, you can check whether your application is DPI-aware or not. You can also change the default values.

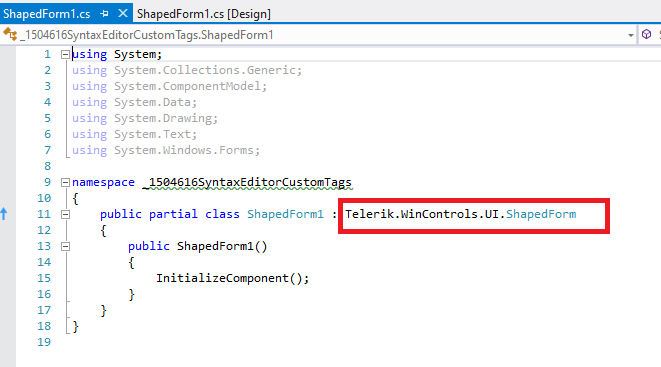

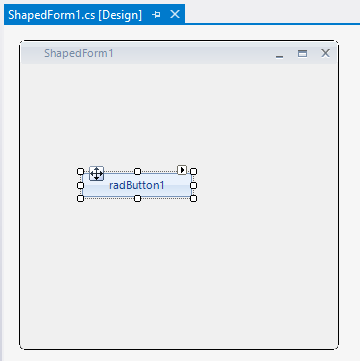

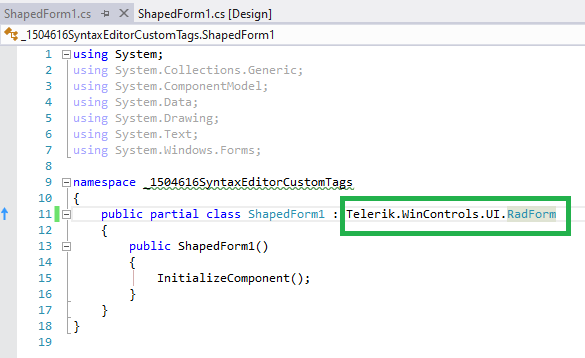

It wouldn't be easy to determine why the conversion process from ShapedForm to RadForm was not successful on your end. However, please note that you have to save all existing changes first. Then, you can change the type of the form to inherit from RadForm:

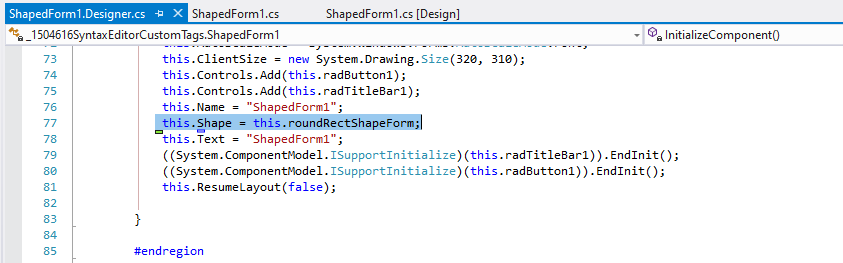

Then, remove this code line from the Designer.cs:

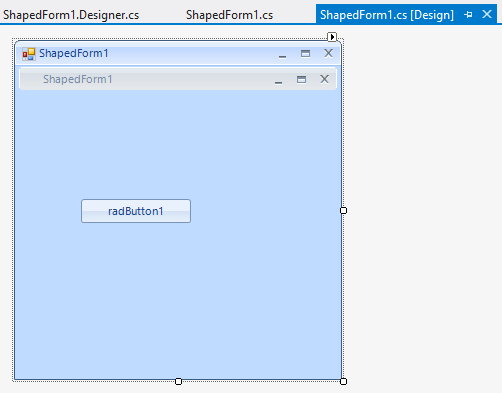

You can also remove the bottom title bar by selecting it and hitting delete. That is it.

I believe you will find it useful. Should you have further questions please let me know.

Regards,
Dess | Tech Support Engineer, Sr.
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.
